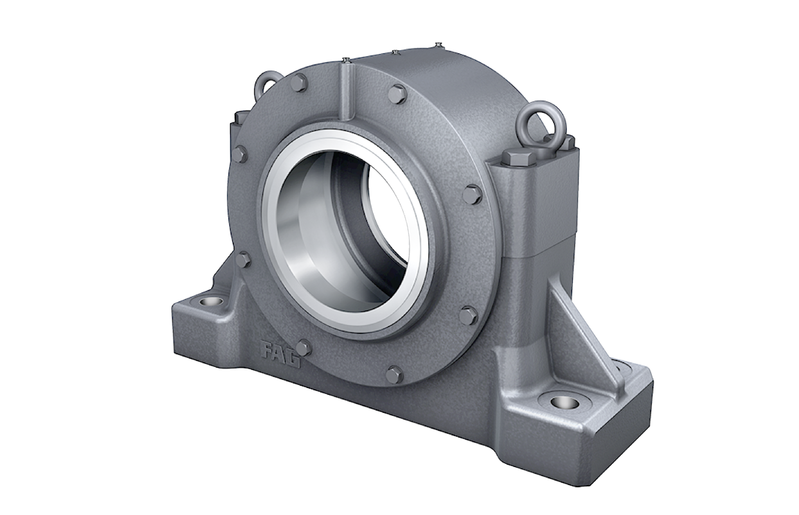

FAG RLE4184-Z-AL-L

Plummer block housings technical reference with manufacturer-sourced dimensions, characteristics and engineering resources.

Technical data available

WidthB: 490 mm
Mass≈m: 957 kg
Length basea: 1,300 mm / 51.181 in
Total heighth1: 897 mm / 35.315 in
Heighth: 490 mm / 19.291 in
Total width with lid g2g2: 455 mm / 17.913 in

Compare this model by brand →Check interchange requirements →

Use this page as a technical reference. Verify the current manufacturer specification and the complete application requirements before selection.

Technical data

Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications4 parameters

Core specifications
Parameter	Symbol	Value
Series		RLE4184
Width	B	490 mm
Height	H	897 mm
Mass	≈m	957 kg

Main Dimensions & Performance Data6 parameters

Main Dimensions & Performance Data
Parameter	Symbol	Value
Length base	a	1,300 mm51.181 in
Total height	h1	897 mm35.315 in
Height	h	490 mm19.291 in
Total width with lid g2	g2	455 mm17.913 in
Shaft diameter	d	420 mm16.535 in
Mass	≈m	957 kg2,109.821 lbs

Dimensions11 parameters

Dimensions
Parameter	Symbol	Value
Axial displacement		5 mm0.197 in
Width base	b	390 mm15.354 in
Height base foot	c	155 mm6.102 in
Outside diameter bearing	D	700 mm27.559 in
Locking collar width	e	20 mm0.787 in
Bore distance width	n	225 mm8.858 in
Axial displacement	k	2 mm0.079 in
Size of fixing screws	s	M56
Distance fixing bore	m	1,110 mm43.701 in
Width oblong holes	u	68 mm2.677 in
Shaft diameter		422 mm16.614 in

Manufacturer Identity5 parameters

Manufacturer Identity
Parameter	Symbol	Value
Schaeffler Product Code		1657584
Brand		FAG
Base Type		RLE4184
SAP material number		0389527340000
Base product		23051701ZZ

Product Identity2 parameters

Product Identity
Parameter	Symbol	Value
Construction		split plummer block housing for spherical roller bearings with cylindrical bore
Short Description		Plummer block housing

Technical Data4 parameters

Technical Data
Parameter	Symbol	Value
Width (B)		490 mm
Total Height (H1)		897 mm
Length Base (A)		1,300 mm
Height Base Foot (C)		155 mm

Technical documents & data sheet

This product page is a BearingScope catalogue reference, not a manufacturer-certified drawing. Preserve the full brand and designation when comparing files.

Record identity: FAG RLE4184-Z-AL-L
Document matching: Exact designation, assembly scope, revision and units must agree.

No verified redistributable CAD or manufacturer PDF is registered for this exact model. A catalogue image is not a dimensioned drawing. Missing technical files are not generated or replaced with unrelated models.
