Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications13 parameters

Core specifications
Parameter	Symbol	Value
Series		PTB71910
Bore diameter	d	50 mm
Outside diameter	D	72 mm
Width	B	12 mm
Basic dynamic load rating	C	18.8 kN
Basic static load rating	C0	11.7 kN
Fatigue load limit	Pu	1.25 kN
Mass	≈m	0.12214 kg
Precision class		P4 — Class 4 (ISO 492:2023)
Sealing		Without — Not sealed
Cage		TVP — Polyamide cage
Minimum operating temperature	Tmin	-30 °C
Maximum operating temperature	Tmax	120 °C

Product characteristics6 parameters

Main Dimensions & Performance Data9 parameters

Main Dimensions & Performance Data
Parameter	Symbol	Value
Bore diameter	d	50 mm1.969 in
Outside diameter	D	72 mm2.835 in
Width	B	12 mm0.472 in
Basic dynamic load rating, radial	Cr	18,800 N4,226.619 lbf
Basic static load rating, radial	C0r	11,700 N2,630.396 lbf
Fatigue load limit, radial	Cur	1,250 N281.025 lbf
Limiting speed for grease lubrication	nG Grease	15,000 1/min
Limiting speed for oil lubrication	nG Oil	15,000 1/min
Mass	≈m	122.14 g4.308 oz

Mounting dimensions11 parameters

Mounting dimensions
Parameter	Symbol	Value
Diameter shaft shoulder	da	55 mm2.165 in
Diameter shaft shoulder clearance	da	h12
Shoulder diameter outer ring	Da	67.5 mm2.657 in
Shoulder diameter outer ring clearance	Da	H12
Maximum recess radius	ra max	0.6 mm0.024 in
Maximum recess radius	ra1 max	0.15 mm0.006 in
Minimum diameter injection pitch	Etk min	56.8 mm2.236 in
Maximum diameter injection pitch	Etk max	58.8 mm2.315 in
Minimum diameter injection pitch	Etk1 min	56.8 mm2.236 in
Maximum diameter injection pitch	Etk1 max	58.8 mm2.315 in
Distance between the apexes of the pressure cones	a	20.2 mm0.795 in

Dimensions3 parameters

Temperature range2 parameters

Temperature range
Parameter	Symbol	Value
Operating temperature min.	Tmin	-30 °C-22 °F
Operating temperature max.	Tmax	120 °C248 °F

Capabilities & suitability4 parameters

Capabilities & suitability
Parameter	Symbol	Value
Radial load capacity		Yes
Axial load capacity in one direction		Yes
Suitable for grease lubrication		Yes
Unsealed design		Yes

Manufacturer Identity7 parameters

Product Identity2 parameters

Product Identity
Parameter	Symbol	Value

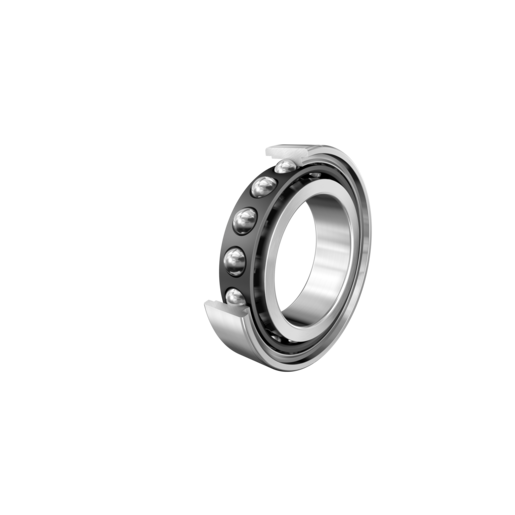

Construction		Precision bearing for driven tools PTB719..-E, adjusted, in pairs or sets, contact angle α = 25°
Short Description		Spindle bearing

Additional information3 parameters

Technical Data25 parameters

Technical Data
Parameter	Symbol	Value
Bore Diameter (D)		50 mm
Outside Diameter (D)		72 mm
Width (B)		12 mm
Basic Dynamic Load Rating, Radial (Cr)		18,800 N
Basic Static Load Rating, Radial (C0R)		11,700 N
Operating Temperature Min. (Tmin)		-30 °C
Operating Temperature Max. (Tmax)		120 °C
Axial Rigidity Medium (Ca M)		174 N/µm
Diameter Shaft Shoulder (Da)		55 mm
Lift Off Force Medium (Kae M)		1,330 N
Limiting Speed For Oil Lubrication (Ng Oil)		15,000 1/min
Maximum Diameter Injection Pitch (Etk1 Ma)		58.8 mm
Maximum Diameter Injection Pitch (Etk Max)		58.8 mm
Minimum Diameter Injection Pitch (Etk1 Mi)		56.8 mm
Preload Force Medium (Fv M)		444 N
Shoulder Diameter Outer Ring (Da)		67.5 mm
Limiting Speed For Grease Lubrication (Ng Grea)		15,000 1/min
Minimum Diameter Injection Pitch (Etk Min)		56.8 mm
Fatigue Load Limit, Radial (Cur)		1,250 N
Minimum Chamfer Dimension (Rmin)		0.6 mm
Maximum Fillet Radius (Ra Max)		0.6 mm
Maximum Recess Radius (Ra1 Max)		0.15 mm
Minimum Chamfer Dimension (R1 Min)		0.6 mm
Contact Angle (Α)		25 °
Distance Between The Apexes Of The Pressure Cones (A)		20.2 mm
