Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications1 parameter
| Parameter | Symbol | Value |
|---|---|---|
| Mass | ≈m | 3.013 kg |
Manufacturer Identity5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 4106728 | |
| Brand | FAG | |
| Base Type | OPTIME-LW-C4-R2 | |
| SAP material number | 3058432220000 | |
| Base product | 230610AD01_NoSuffix |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

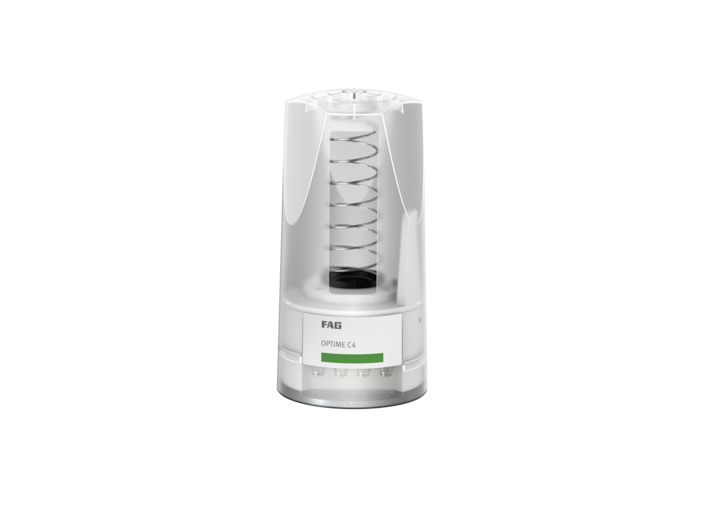

| Construction | FAG OPTIME C4, Multi-point lubricator for the OPTIME Ecosystem | |
| Short Description | Automatic lubrication system |
Additional information2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Scope of delivery per package | 1x FAG OPTIME C4, 1x mounting bracket, 1x connector plug, 3x blind plugs, 4x vent hose, 1x quick start guide | |
| Country approvals | EU countries, USA, Canada, Albania, Andorra, Bosnia & Herzegovina, Israel, Macedonia, Morocco, Norway, Serbia, South Africa, Switzerland, Tunisia, Turkey, UAE, UK, Australia, India, Indonesia, Japan, South Korea, Malaysia, New Zealand, Philippines, Singapore, Thailand, Taiwan, Brazil, Chile, Colombia, Mexico, Peru |
Technical Data6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating Temperature, Max. (Tmax) | 70 °C | |
| Operating Temperature, Min. (Tmin) | -20 °C | |
| Metering Quantity (Per Outlet And Stroke/Impulse) (Metering Qua) | 0.15 cm³ | |
| Number Of Pump Bodies (Npb) | 4 | |
| Number Of Outlets (Nout) | 4 | |
| Operating Pressure, Max. (Pop) | 70 bar |
Technical data21 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Functional principle | Piston pump | |
| Lubricant volume | VLub | 400 / 750 cm³ |
| Metering quantity (per outlet and stroke/impulse) | 0.15 cm³0.005 floz | |
| Operating pressure, max. | pop | 70 bar1,015.28 psi |
| Lubricant | ≤ NLGI 3 (suitability test required) | |
| Number of pump bodies | npb | 4 |
| Number of outlets | nout | 4 |
| Number of lubrication points: direct | ≤ 4 | |
| Connection | PA hose | |
| Operating voltage | Uop | DC 24 V |
| Controller (integrated) | OPTIME | |
| Monitoring: pressure | via OPTIME | |
| Monitoring: fill level | via OPTIME | |
| Error message | Empty level, back pressure, internal error: via OPTIME | |
| Protection class | IP68 | |
| Housing material | Polyamide | |
| Operating temperature, min. | tmin | -20 °C-4 °F |
| Operating temperature, max. | tmax | 70 °C158 °F |
| Mounting position | vertical | |
| Dimensions (mm) | 297 x 144 x 144 | |
| Mass | ≈m | 3.013 kg6.643 lbs |
