Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 12 mm |
| Outside diameter | D | 25 mm |
| Width | B | 1 mm |
| Mass | ≈m | 0.002 kg |

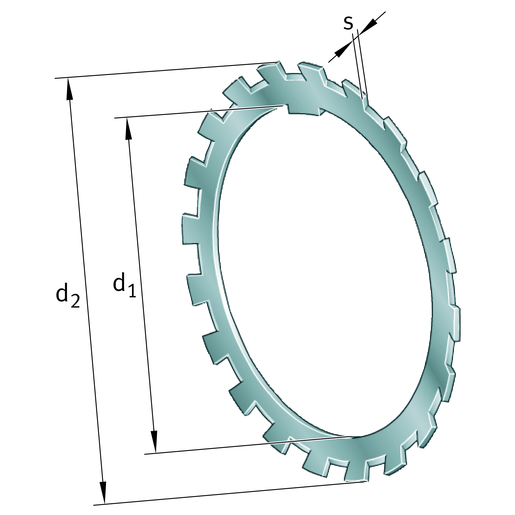

Main Dimensions & Performance Data4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d1 | 12 mm0.472 in |
| Outside diameter | d2 | 25 mm0.984 in |
| Thickness | s | 1 mm0.039 in |
| Mass | ≈m | 2 g0.071 oz |
Mounting dimensions4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Plant diameter outside | d3 | 17 mm0.669 in |
| Distance lug | b2 | 3 mm0.118 in |
| Distance lug | M | 10.5 mm0.413 in |
| Width lock washer tab | b1 | 3 mm0.118 in |
Manufacturer Identity6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 417785 | |
| Brand | FAG | |
| Base Type | MB1 | |
| X Life Marking | n.r. | |
| SAP material number | 0384916050000 | |
| Base product | 2309030211_NoSuffix |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Tab washers MB, main dimensions to DIN 5406 | |
| Short Description | Securing plate |
Additional information1 parameter
| Parameter | Symbol | Value |
|---|---|---|
| Counted quantity | 100 |
Technical Data7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Outside Diameter (D2) | 25 mm | |
| Thickness (S) | 1 mm | |
| Distance Lug (B2) | 3 mm | |
| Distance Lug (M) | 10.5 mm | |
| Width Lock Washer Tab (B1) | 3 mm | |
| Plant Diameter Outside (D3) | 17 mm | |
| Bore Diameter (D1) | 12 mm |
