Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width | B | 24 mm |
| Mass | ≈m | 1.47 kg |

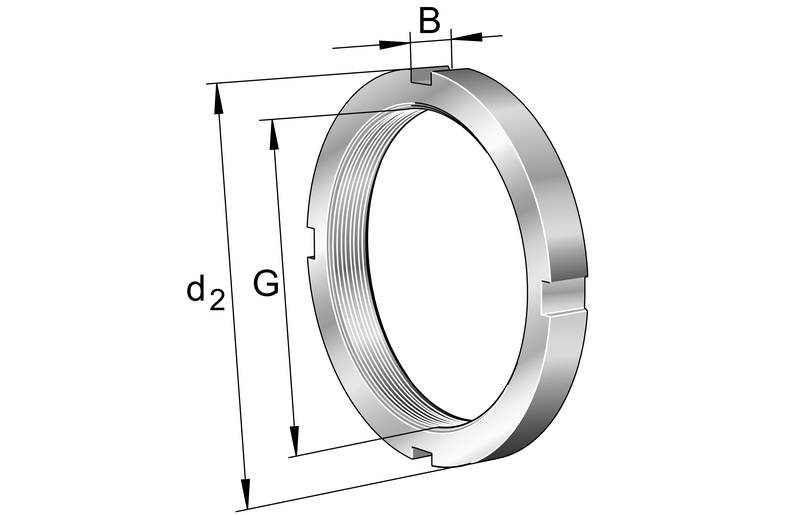

Main Dimensions & Performance Data4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Thread | G | M150x2 |
| Outerside diameter | d2 | 180 mm7.087 in |
| Width | B | 24 mm0.945 in |
| Mass | ≈m | 1.47 kg3.241 lbs |
Mounting dimensions3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Chamfer diameter | d1 | 170 mm6.693 in |
| Width retaining slot | b | 14 mm0.551 in |
| Height retaining slot | h | 5 mm0.197 in |
Manufacturer Identity6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 418333 | |
| Brand | FAG | |
| Base Type | KML30 | |
| X Life Marking | n.r. | |
| SAP material number | 0167322190000 | |
| Base product | 23110822ZZ_NoSuffix |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Locknuts KML, main dimensions to DIN 981 | |
| Short Description | Locknut |
Additional information3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Axial load capacity, static | F | 510,000 N114,658.273 lbf |
| Fuse | MBL30 | |
| Chamfer angle | 30 ° |
Technical Data7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Total Width (B) | 24 mm | |
| Outside Diameter Nut (D2) | 180 mm | |
| Axial Load Capacity, Static (F) | 510,000 N | |
| Width Retaining Slot (B) | 14 mm | |
| Champfer Angle (Champfer Ang) | 30 ° | |
| Chamfer Diameter (D1) | 170 mm | |
| Height Retaining Slot (H) | 5 mm |
