Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width | B | 30 mm |
| Mass | ≈m | 3.277 kg |

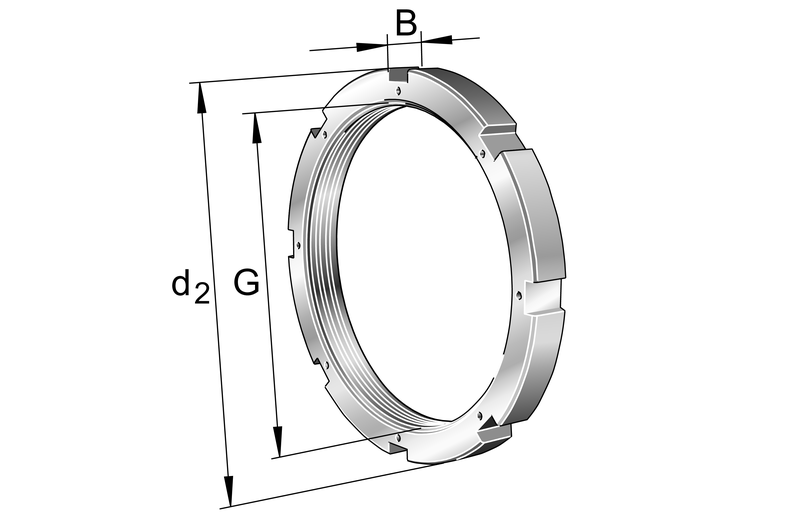

Main Dimensions & Performance Data4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Thread | G | Tr220X4 |
| Outerside diameter | d2 | 260 mm10.236 in |
| Width | B | 30 mm1.181 in |
| Mass | ≈m | 3.277 kg7.225 lbs |
Mounting dimensions3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Chamfer diameter | d1 | 242 mm9.528 in |
| Width retaining slot | b | 20 mm0.787 in |
| Height retaining slot | h | 9 mm0.354 in |
Manufacturer Identity6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 418173 | |
| Brand | FAG | |
| Base Type | HM3044 | |
| X Life Marking | n.r. | |
| SAP material number | 0167314410000 | |
| Base product | 23110822ZZ_NoSuffix |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Locknut HM | |
| Short Description | Locknut |
Additional information3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Axial load capacity, static | F | 1,800,000 N404,676.259 lbf |
| Fuse | MS3044 | |
| Chamfer angle | 30 ° |
Technical Data7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Total Width (B) | 30 mm | |
| Outside Diameter Nut (D2) | 260 mm | |
| Axial Load Capacity, Static (F) | 1,800,000 N | |
| Width Retaining Slot (B) | 20 mm | |
| Champfer Angle (Champfer Ang) | 30 ° | |
| Chamfer Diameter (D1) | 242 mm | |
| Height Retaining Slot (H) | 9 mm |
