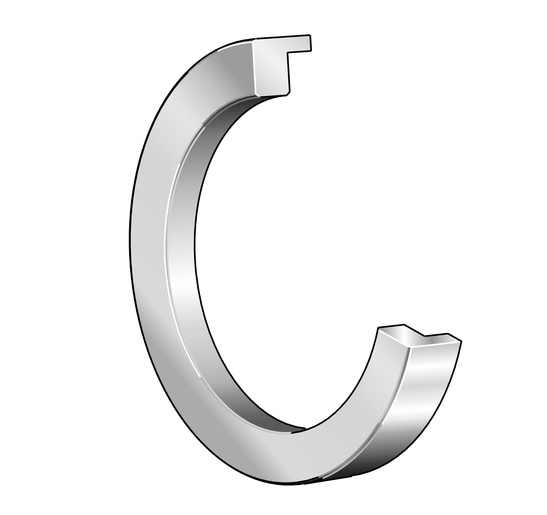

FAG HJ217-E

L-section ring technical reference with manufacturer-sourced dimensions, characteristics and engineering resources.

Technical data available

WidthB: 12.5 mm
Mass≈m: 0.248 kg
Total widthB: 12.5 mm / 0.492 in
Total Width (B2): 12.5 mm

Compare this model by brand →Check interchange requirements →

Use this page as a technical reference. Verify the current manufacturer specification and the complete application requirements before selection.

Technical data

Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications3 parameters

Core specifications
Parameter	Symbol	Value
Series		HJ217
Width	B	12.5 mm
Mass	≈m	0.248 kg

Main Dimensions & Performance Data2 parameters

Main Dimensions & Performance Data
Parameter	Symbol	Value
Total width	B	12.5 mm0.492 in
Mass	≈m	0.248 kg0.547 lbs

Manufacturer Identity5 parameters

Manufacturer Identity
Parameter	Symbol	Value
Schaeffler Product Code		411513
Brand		FAG
Base Type		HJ217
SAP material number		0383776830000
Base product		2305BL1290_NoSuffix

Product Identity1 parameter

Product Identity
Parameter	Symbol	Value
Short Description		L-section ring

Technical Data1 parameter

Technical Data
Parameter	Symbol	Value
Total Width (B2)		12.5 mm

Technical documents & data sheet

This product page is a BearingScope catalogue reference, not a manufacturer-certified drawing. Preserve the full brand and designation when comparing files.

Record identity: FAG HJ217-E
Document matching: Exact designation, assembly scope, revision and units must agree.

No verified redistributable CAD or manufacturer PDF is registered for this exact model. A catalogue image is not a dimensioned drawing. Missing technical files are not generated or replaced with unrelated models.
