Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications13 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | HCS7021 | |

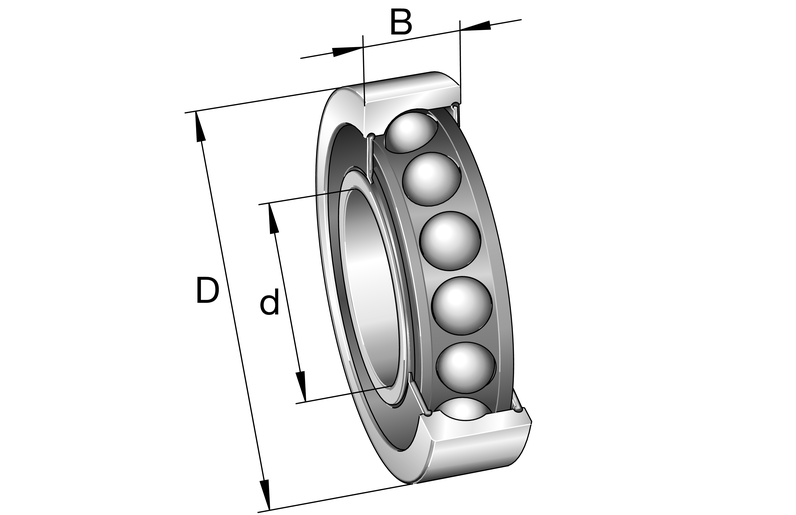

| Bore diameter | d | 105 mm |
| Outside diameter | D | 160 mm |
| Width | B | 26 mm |
| Basic dynamic load rating | C | 45 kN |
| Basic static load rating | C0 | 33 kN |
| Fatigue load limit | Pu | 2.3 kN |
| Mass | ≈m | 1.576 kg |
| Precision class | P4S — Tolerance class P4S, FAG standard better than P4 to ISO 492:2023 | |
| Sealing | 2RSD — Non-contact sealed on both sides and greased “for life” | |
| Cage | T — Laminated fabric cage | |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 80 °C |
Product characteristics6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Preload class | L | Preload light |
| Contact angle | E | Contact angle 25° |
| Type of Seal | 2RSD | Non-contact sealed on both sides and greased “for life” |
| Cage | T | Laminated fabric cage |
| Tolerance class | P4S | Tolerance class P4S, FAG standard better than P4 to ISO 492:2023 |
| Arrangement bearing set | U | Single bearing |
Main Dimensions & Performance Data8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 105 mm4.134 in |
| Outside diameter | D | 160 mm6.299 in |
| Width | B | 26 mm1.024 in |
| Basic dynamic load rating, radial | Cr | 45,000 N10,116.906 lbf |
| Basic static load rating, radial | C0r | 33,000 N7,419.065 lbf |
| Fatigue load limit, radial | Cur | 2,300 N517.086 lbf |
| Limiting speed for grease lubrication | nG Grease | 14,000 1/min |
| Mass | ≈m | 1.576 kg3.474 lbs |
Mounting dimensions7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Diameter shaft shoulder | da | 116 mm4.567 in |
| Diameter shaft shoulder clearance | da | h12 |
| Shoulder diameter outer ring | Da | 150 mm5.906 in |
| Shoulder diameter outer ring clearance | Da | H12 |
| Maximum recess radius | ra max | 2 mm0.079 in |
| Maximum recess radius | ra1 max | 1 mm0.039 in |
| Distance between the apexes of the pressure cones | a | 43.9 mm1.728 in |
Dimensions3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum chamfer dimension | rmin | 2 mm0.079 in |
| Minimum chamfer dimension | r1 min | 2 mm0.079 in |
| Contact angle | α | 25 ° |
Temperature range2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating temperature min. | Tmin | -30 °C-22 °F |
| Operating temperature max. | Tmax | 80 °C176 °F |
Capabilities & suitability5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Radial load capacity | Yes | |
| Axial load capacity in one direction | Yes | |
| Lifetimelubricationfreedomfrommaintenance | Yes | |
| Suitable for grease lubrication | Yes | |
| Sealedonbothsides | Yes |
Manufacturer Identity8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 364980 | |
| Brand | FAG | |
| Base Type | HCS7021 | |
| X Life Marking | n.r. | |
| SAP material number | 0386137780000 | |
| Base product | 2305080314 | |
| Bearing X designation | HCS7021-E-T-P4S | |
| Mounting Manager ID | HCS7021-E-T-P4S |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | High speed spindle bearing HCS70..-E, adjusted, in pairs or sets, contact angle α = 25°, with ceramic balls, lip seals on both sides, non-contact, restricted tolerances | |
| Short Description | High speed spindle bearing |
Additional information9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Preload force light | FV L | 184 N41.367 lbf |
| Preload force medium | FV M | 552 N124.101 lbf |
| Preload force heavy | FV H | 1,104 N248.201 lbf |
| Lift-off force light | KaE L | 527 N118.48 lbf |
| Lift-off force medium | KaE M | 1,602 N360.162 lbf |
| Lift-off force heavy | KaE H | 3,250 N730.665 lbf |
| Axial rigidity light | ca L | 188 N/µm |
| Axial rigidity medium | ca M | 277 N/µm |
| Axial rigidity heavy | ca H | 357 N/µm |
Technical Data26 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 105 mm | |
| Outside Diameter (D) | 160 mm | |
| Width (B) | 26 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 45,000 N | |
| Basic Static Load Rating, Radial (C0R) | 33,000 N | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Operating Temperature Max. (Tmax) | 80 °C | |
| Axial Rigidity Heavy (Ca H) | 357 N/µm | |
| Axial Rigidity Light (Ca L) | 188 N/µm | |
| Axial Rigidity Medium (Ca M) | 277 N/µm | |
| Diameter Shaft Shoulder (Da) | 116 mm | |
| Lift Off Force Heavy (Kae H) | 3,250 N | |
| Lift Off Force Light (Kae L) | 527 N | |
| Lift Off Force Medium (Kae M) | 1,602 N | |
| Preload Force Heavy (Fv H) | 1,104 N | |
| Preload Force Light (Fv L) | 184 N | |
| Preload Force Medium (Fv M) | 552 N | |
| Shoulder Diameter Outer Ring (Da) | 150 mm | |
| Limiting Speed For Grease Lubrication (Ng Grea) | 14,000 1/min | |
| Fatigue Load Limit, Radial (Cur) | 2,300 N | |
| Minimum Chamfer Dimension (Rmin) | 2 mm | |
| Maximum Fillet Radius (Ra Max) | 2 mm | |
| Maximum Recess Radius (Ra1 Max) | 1 mm | |
| Minimum Chamfer Dimension (R1 Min) | 2 mm | |
| Contact Angle (Α) | 25 ° | |
| Distance Between The Apexes Of The Pressure Cones (A) | 43.9 mm |
