Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications13 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | HCB7232 | |

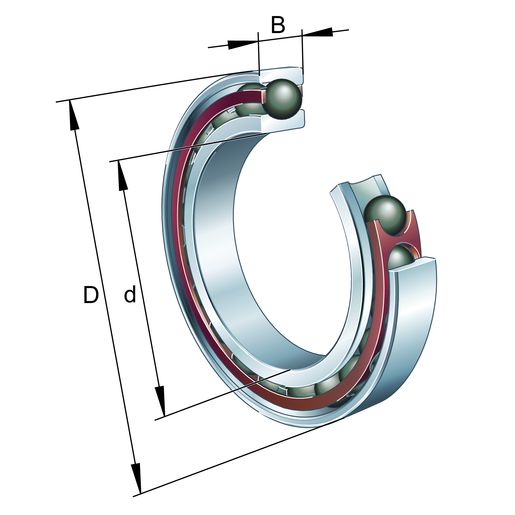

| Bore diameter | d | 160 mm |
| Outside diameter | D | 290 mm |
| Width | B | 48 mm |
| Basic dynamic load rating | C | 249 kN |
| Basic static load rating | C0 | 193 kN |
| Fatigue load limit | Pu | 10.4 kN |
| Mass | ≈m | 11.6 kg |
| Precision class | P4S — Tolerance class P4S, FAG standard better than P4 to ISO 492:2023 | |
| Sealing | Without — Not sealed | |
| Cage | T — Laminated fabric cage | |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 100 °C |
Product characteristics6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Contact angle | C | Contact angle 15° |
| Type of Seal | Without | Not sealed |
| Cage | T | Laminated fabric cage |
| Tolerance class | P4S | Tolerance class P4S, FAG standard better than P4 to ISO 492:2023 |
| Arrangement bearing set | U | Single bearing |
| Preload class | L | Preload light |
Main Dimensions & Performance Data9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 160 mm6.299 in |
| Outside diameter | D | 290 mm11.417 in |
| Width | B | 48 mm1.89 in |
| Basic dynamic load rating, radial | Cr | 249,000 N55,980.216 lbf |
| Basic static load rating, radial | C0r | 193,000 N43,390.288 lbf |
| Fatigue load limit, radial | Cur | 10,400 N2,338.129 lbf |
| Limiting speed for grease lubrication | nG Grease | 5,300 1/min |
| Limiting speed for oil lubrication | nG Oil | 8,000 1/min |
| Mass | ≈m | 11.6 kg25.574 lbs |
Mounting dimensions11 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Diameter shaft shoulder | da | 191 mm7.52 in |
| Diameter shaft shoulder clearance | da | h12 |
| Shoulder diameter outer ring | Da | 259 mm10.197 in |
| Shoulder diameter outer ring clearance | Da | H12 |
| Maximum recess radius | ra max | 2.5 mm0.098 in |
| Maximum recess radius | ra1 max | 2.5 mm0.098 in |
| Minimum diameter injection pitch | Etk min | 205.9 mm8.106 in |
| Maximum diameter injection pitch | Etk max | 216.9 mm8.539 in |
| Minimum diameter injection pitch | Etk1 min | 205.9 mm8.106 in |
| Maximum diameter injection pitch | Etk1 max | 216.9 mm8.539 in |
| Distance between the apexes of the pressure cones | a | 54.1 mm2.13 in |
Dimensions3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum chamfer dimension | rmin | 3 mm0.118 in |
| Minimum chamfer dimension | r1 min | 3 mm0.118 in |
| Contact angle | α | 15 ° |
Temperature range2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating temperature min. | Tmin | -30 °C-22 °F |
| Operating temperature max. | Tmax | 100 °C212 °F |
Capabilities & suitability5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Radial load capacity | Yes | |
| Axial load capacity in one direction | Yes | |
| Suitable for grease lubrication | Yes | |
| Suitable for oil lubrication | Yes | |
| Unsealed design | Yes |
Manufacturer Identity7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 2028089 | |
| Brand | FAG | |
| Base Type | HCB7232 | |
| SAP material number | 0970870170000 | |
| Base product | 2305080312 | |
| Bearing X designation | HCB7232-C-T-P4S | |
| Mounting Manager ID | HCB7232-C-T-P4S |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Spindle bearing HCB72..-C, adjusted, in pairs or sets, contact angle α = 15°, with ceramic balls, restricted tolerances | |
| Short Description | Spindle bearing |
Additional information9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Preload force light | FV L | 827 N185.926 lbf |
| Preload force medium | FV M | 2,657 N597.347 lbf |
| Preload force heavy | FV H | 5,402 N1,214.478 lbf |
| Lift-off force light | KaE L | 2,457 N552.383 lbf |
| Lift-off force medium | KaE M | 8,298 N1,865.558 lbf |
| Lift-off force heavy | KaE H | 17,692 N3,977.518 lbf |
| Axial rigidity light | ca L | 158 N/µm |
| Axial rigidity medium | ca M | 254 N/µm |
| Axial rigidity heavy | ca H | 350 N/µm |
Technical Data31 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 160 mm | |
| Outside Diameter (D) | 290 mm | |
| Width (B) | 48 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 249,000 N | |
| Basic Static Load Rating, Radial (C0R) | 193,000 N | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Operating Temperature Max. (Tmax) | 100 °C | |
| Axial Rigidity Heavy (Ca H) | 350 N/µm | |
| Axial Rigidity Light (Ca L) | 158 N/µm | |
| Axial Rigidity Medium (Ca M) | 254 N/µm | |
| Diameter Shaft Shoulder (Da) | 191 mm | |
| Lift Off Force Heavy (Kae H) | 17,692 N | |
| Lift Off Force Light (Kae L) | 2,457 N | |
| Lift Off Force Medium (Kae M) | 8,298 N | |
| Limiting Speed For Oil Lubrication (Ng Oil) | 8,000 1/min | |
| Maximum Diameter Injection Pitch (Etk1 Ma) | 216.9 mm | |
| Maximum Diameter Injection Pitch (Etk Max) | 216.9 mm | |
| Minimum Diameter Injection Pitch (Etk1 Mi) | 205.9 mm | |
| Preload Force Heavy (Fv H) | 5,402 N | |
| Preload Force Light (Fv L) | 827 N | |
| Preload Force Medium (Fv M) | 2,657 N | |
| Shoulder Diameter Outer Ring (Da) | 259 mm | |
| Limiting Speed For Grease Lubrication (Ng Grea) | 5,300 1/min | |
| Minimum Diameter Injection Pitch (Etk Min) | 205.9 mm | |
| Fatigue Load Limit, Radial (Cur) | 10,400 N | |
| Minimum Chamfer Dimension (Rmin) | 3 mm | |
| Maximum Fillet Radius (Ra Max) | 2.5 mm | |
| Maximum Recess Radius (Ra1 Max) | 2.5 mm | |
| Minimum Chamfer Dimension (R1 Min) | 3 mm | |
| Contact Angle (Α) | 15 ° | |
| Distance Between The Apexes Of The Pressure Cones (A) | 54.1 mm |
