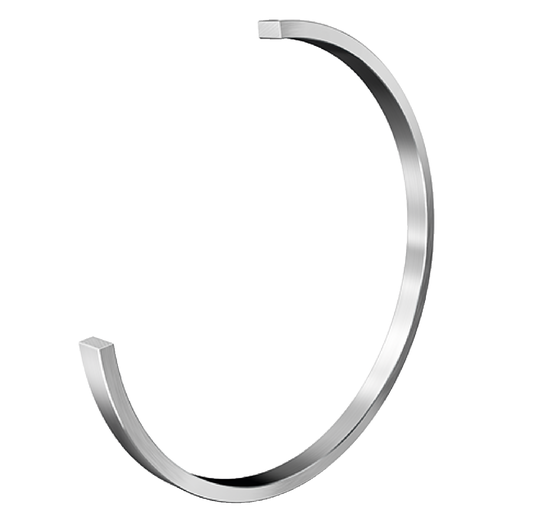

FAG FRM110/13

Housing ring technical reference with manufacturer-sourced dimensions, characteristics and engineering resources.

Technical data available

Outside diameterD: 110 mm
Mass≈m: 0.12525 kg
Thicknessb: 13 mm / 0.512 in
Outside Diameter (D): 110 mm

Compare this model by brand →Check interchange requirements →

Use this page as a technical reference. Verify the current manufacturer specification and the complete application requirements before selection.

Technical data

Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications2 parameters

Core specifications
Parameter	Symbol	Value
Outside diameter	D	110 mm
Mass	≈m	0.12525 kg

Main Dimensions & Performance Data3 parameters

Main Dimensions & Performance Data
Parameter	Symbol	Value
Outside diameter	d	110 mm4.331 in
Thickness	b	13 mm0.512 in
Mass	≈m	125.25 g4.418 oz

Manufacturer Identity4 parameters

Manufacturer Identity
Parameter	Symbol	Value
Schaeffler Product Code		414953
Brand		FAG
SAP material number		0167296090000
Base product		2305GR9090

Product Identity2 parameters

Product Identity
Parameter	Symbol	Value
Construction		Stabilisation rings for fix bearing
Short Description		Housing ring

Technical Data1 parameter

Technical Data
Parameter	Symbol	Value
Outside Diameter (D)		110 mm

Technical documents & data sheet

This product page is a BearingScope catalogue reference, not a manufacturer-certified drawing. Preserve the full brand and designation when comparing files.

Record identity: FAG FRM110/13
Document matching: Exact designation, assembly scope, revision and units must agree.

No verified redistributable CAD or manufacturer PDF is registered for this exact model. A catalogue image is not a dimensioned drawing. Missing technical files are not generated or replaced with unrelated models.
