Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | F522 | |
| Mass | ≈m | 21.949 kg |
Main Dimensions & Performance Data5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Shaft diameter | d1 | 100 mm3.937 in |
| Flange width | a | 270 mm10.63 in |
| Height flange | h1 | 270 mm10.63 in |
| Number of fastening holes | 4 | |
| Mass | ≈m | 21.949 kg48.389 lbs |
Dimensions7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Connection thread for lubrication | M10x1 | |
| Thickness of flange | c | 30 mm1.181 in |
| Outside diameter bearing | D | 200 mm7.874 in |
| Distance flange to bearing seat | g4 | 30 mm1.181 in |
| Distance shaft axis | h | 135 mm5.315 in |
| Pich circle diameter fixing holes | m | 310 mm12.205 in |
| Size of fixing screws | s | M20 |
Manufacturer Identity5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 405598 | |
| Brand | FAG | |
| Base Type | F522 | |
| SAP material number | 0384388100000 | |
| Base product | 2305170202 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

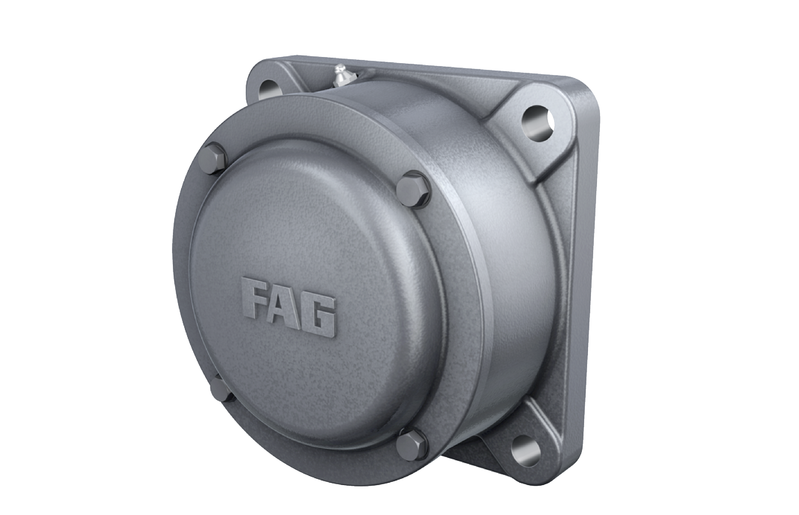

| Construction | Flanged housing for various bearing types, with conical bore and clamping sleeve, closed on one side | |
| Short Description | Flanged housing |
Technical Data5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Diameter Shaft (D) | 100 mm | |
| Thickness Of Flange (C) | 30 mm | |
| Height Flange (H1) | 270 mm | |
| Distance Flange To Bearing Seat (G4) | 30 mm | |
| Flange Width (A) | 270 mm |
