Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | F505 | |
| Width | B | 55 mm |
| Mass | ≈m | 1.2 kg |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 1543839 | |
| Brand | FAG | |
| Base Type | F505 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Flanged housing for various bearing types, wide version with conical bore and clamping sleeve, continuous shaft | |

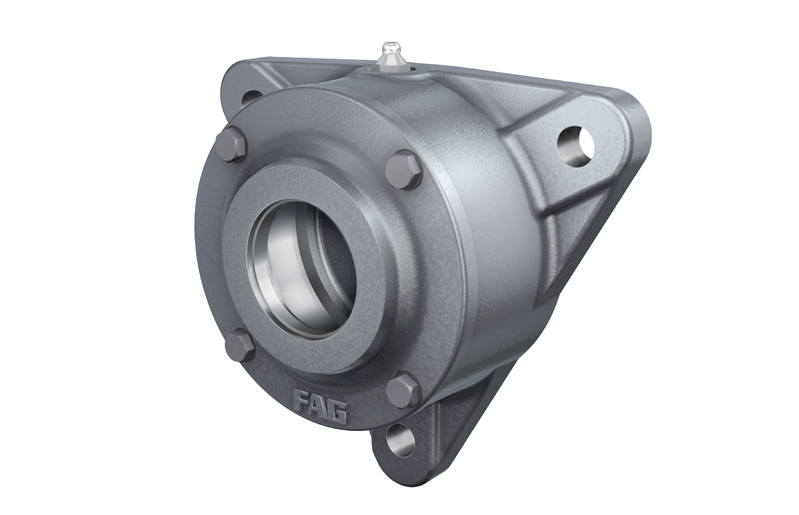

| Short Description | Flanged housing |
Technical Data6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width (B) | 55 mm | |
| Diameter Shaft (D) | 20 mm | |
| Thickness Of Flange (C) | 10 mm | |
| Height Flange (H1) | 100 mm | |
| Distance Flange To Bearing Seat (G4) | 14.5 mm | |
| Flange Width (A) | 110 mm |
