Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications1 parameter
| Parameter | Symbol | Value |
|---|---|---|
| Mass | ≈m | 1.35 kg |
Main Dimensions & Performance Data5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Shaft diameter | d | 30 mm1.181 in |
| Flange width | a | 130 mm5.118 in |
| Total width with cover | g2 | 49 mm1.929 in |
| Height flange | h1 | 117 mm4.606 in |
| Mass | ≈m | 1.35 kg2.976 lbs |
Dimensions6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Connection thread for lubrication | M10x1 | |
| Thickness of flange | c | 12 mm0.472 in |
| Outside diameter bearing | D | 62 mm2.441 in |
| Distance shaft axis | h | 44 mm1.732 in |
| Pitch circle diameter fixing holes | m | 116 mm4.567 in |
| Size of fixing screws | s | M10 |
Temperature range2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating temperature min. | Tmin | -20 °C-4 °F |
| Operating temperature max. | Tmax | 100 °C212 °F |
Manufacturer Identity5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 405543 | |
| Brand | FAG | |
| Base Type | F11206 | |
| SAP material number | 0383828490000 | |
| Base product | 2305170201 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

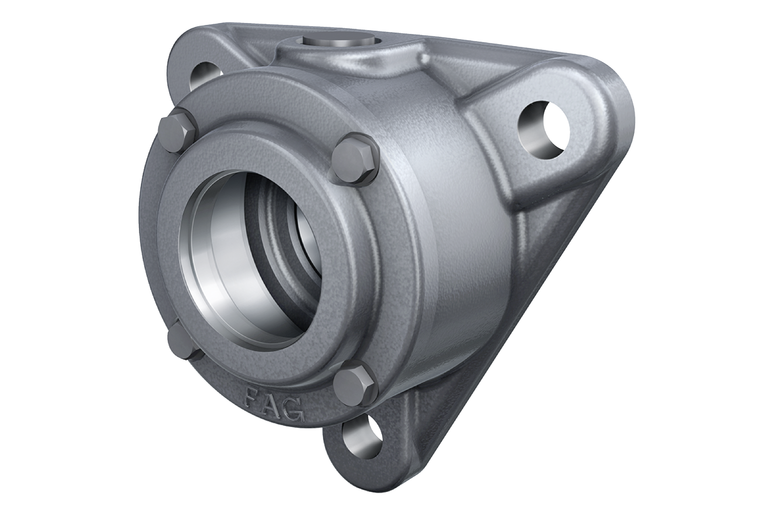

| Construction | Flanged housing for self-aligning ball bearing 112 with wide inner-ring, felt seal, grease lubrication | |
| Short Description | Flanged housing |
Technical Data4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Diameter Shaft (D) | 30 mm | |
| Thickness Of Flange (C) | 12 mm | |
| Height Flange (H1) | 117 mm | |
| Flange Width (A) | 130 mm |
