Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications10 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | C3132 | |
| Bore diameter | d | 160 mm |
| Outside diameter | D | 270 mm |
| Width | B | 86 mm |
| Basic dynamic load rating | C | 1010 kN |
| Basic static load rating | C0 | 1410 kN |
| Mass | ≈m | 19.6 kg |
| Cage | M — Solid brass cage, ball guided | |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 200 °C |
Product characteristics2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore type | K | Tapered, taper 1:12 |
| Cage | M | Solid brass cage, ball guided |
Main Dimensions & Performance Data6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 160 mm6.299 in |
| Outside diameter | D | 270 mm10.63 in |
| Width | B | 86 mm3.386 in |
| Basic dynamic load rating, radial | Cr | 1,010,000 N227,068.345 lbf |
| Basic static load rating, radial | C0r | 1,410,000 N316,996.403 lbf |
| Mass | ≈m | 19.6 kg43.211 lbs |
Mounting dimensions6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum diameter shaft shoulder | da min | 172 mm6.772 in |
| Maximum diameter shaft shoulder | da max | 190 mm7.48 in |
| Minimum diameter of housing shoulder | Da min | 230 mm9.055 in |
| Maximum diameter of housing shoulder | Da max | 258 mm10.157 in |
| Maximum fillet radius | ra max | 2 mm0.079 in |
| Minimum depth of free space Ca | Ca | 1.73 mm0.068 in |
Dimensions4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum chamfer dimension | rmin | 2.1 mm0.083 in |
| Shoulder diameter of IR | d2 | 192.3 mm7.571 in |
| Shoulder diameter outer ring | D1 | 238.2 mm9.378 in |
| Axial displacement | S1 | 10.3 mm0.406 in |
Temperature range2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating temperature min. | Tmin | -30 °C-22 °F |
| Operating temperature max. | Tmax | 200 °C392 °F |
Calculation factors2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating clearance factor kδ | kδ | 1.15 |
| Tilting factor kφ | kφ | 9.473 |
Capabilities & suitability5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Radial load capacity | Yes | |
| Suitable for grease lubrication | Yes | |
| Unsealed design | Yes | |
| Staticangularerrorandmisalignment | Yes | |
| Dynamicangularerrorandmisalignment | Yes |
Manufacturer Identity6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 2893204 | |
| Brand | FAG | |
| Base Type | C3132 | |
| X Life Marking | XL | |
| SAP material number | 3031937190030 | |
| Base product | 2305091390 |
Product Identity2 parameters

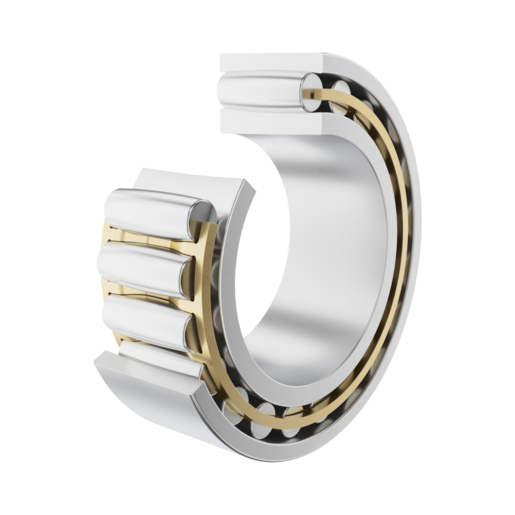

| Parameter | Symbol | Value |
|---|---|---|
| Construction | Toroidal roller bearing C31..-XL-K-M | |
| Short Description | Toroidal roller bearing |
Technical Data19 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 160 mm | |
| Outside Diameter (D) | 270 mm | |
| Width (B) | 86 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 1,010,000 N | |
| Basic Static Load Rating, Radial (C0R) | 1,410,000 N | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Operating Temperature Max. (Tmax) | 200 °C | |
| Minimum Diameter Of Housing Shoulder (Da Min) | 230 mm | |
| Axial Displacement (S1) | 10.3 mm | |
| Minimum Depth Of Free Space Ca (Ca) | 1.73 mm | |
| Operating Clearance Factor Kδ (Kδ) | 1.15 | |
| Shoulder Diameter Of Ir (D2) | 192.3 mm | |
| Tilting Factor Kφ (Kφ) | 9.473 | |
| Maximum Diameter Of Shaft Shoulder (Da Max) | 190 mm | |
| Minimum Diameter Shaft Shoulder (Da Min) | 172 mm | |
| Maximum Diameter Of Housing Shoulder (Da Max) | 258 mm | |
| Minimum Chamfer Dimension (Rmin) | 2.1 mm | |
| Maximum Fillet Radius (Ra Max) | 2 mm | |
| Shoulder Diameter Outer Ring (D1) | 238.2 mm |
