Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications14 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | 24024 | |
| Bore diameter | d | 120 mm |
| Outside diameter | D | 180 mm |
| Width | B | 60 mm |
| Basic dynamic load rating | C | 450 kN |
| Basic static load rating | C0 | 690 kN |
| Fatigue load limit | Pu | 86 kN |
| Limiting speed | nG | 860 r/min |
| Mass | ≈m | 5.3 kg |
| Internal clearance | CN (Group N) — Normal internal clearance | |
| Sealing | 2VSR — Seals on both sides, high temperature | |
| Cage | JPB — Sheet metal cage | |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 180 °C |
Product characteristics6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Design | BE | With lose center lip ring |
| Bore type | Z | Cylindrical |
| Cage | JPB | Sheet metal cage |
| Radial internal clearance | CN (Group N) | Normal internal clearance |
| Relubrication feature | H40 | Without lubricating groove and holes |
| Type of Seal | 2VSR | Seals on both sides, high temperature |
Main Dimensions & Performance Data8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 120 mm4.724 in |
| Outside diameter | D | 180 mm7.087 in |
| Width | B | 60 mm2.362 in |
| Basic dynamic load rating, radial | Cr | 450,000 N101,169.065 lbf |
| Basic static load rating, radial | C0r | 690,000 N155,125.899 lbf |
| Fatigue load limit, radial | Cur | 86,000 N19,334.532 lbf |
| Limiting speed | nG | 860 1/min |
| Mass | ≈m | 5.3 kg11.684 lbs |
Mounting dimensions3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum diameter shaft shoulder | da min | 128.8 mm5.071 in |
| Maximum diameter of housing shoulder | Da max | 171.2 mm6.74 in |
| Maximum recess radius | ra max | 2 mm0.079 in |
Dimensions3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum chamfer dimension | rmin | 2 mm0.079 in |
| Bore diameter outer ring | D1 | 170.5 mm6.713 in |
| Raceway diameter of the inner ring | d2 | 131 mm5.157 in |
Temperature range2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating temperature min. | Tmin | -30 °C-22 °F |
| Operating temperature max. | Tmax | 180 °C356 °F |
Calculation factors4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y | e | 0.29 |
| Dynamic axial load factor | Y1 | 2.33 |
| Dynamic axial load factor | Y2 | 3.47 |
| Static axial load factor | Y0 | 2.28 |
Capabilities & suitability8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Radial load capacity | Yes | |
| Axial load capacity in one direction | Yes | |
| Axial load capacity in both directions | Yes | |
| Lifetimelubricationfreedomfrommaintenance | Yes | |
| Suitable for grease lubrication | Yes | |
| Sealedonbothsides | Yes | |
| Staticangularerrorandmisalignment | Yes | |
| Dynamicangularerrorandmisalignment | Yes |
Manufacturer Identity7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 387332 | |
| Brand | FAG | |
| Base Type | 24024 | |
| Old Designation | ["24024-E1-2VSR-H40"] | |
| X Life Marking | XL | |
| SAP material number | 0790705400000 | |
| Base product | 2305091102 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

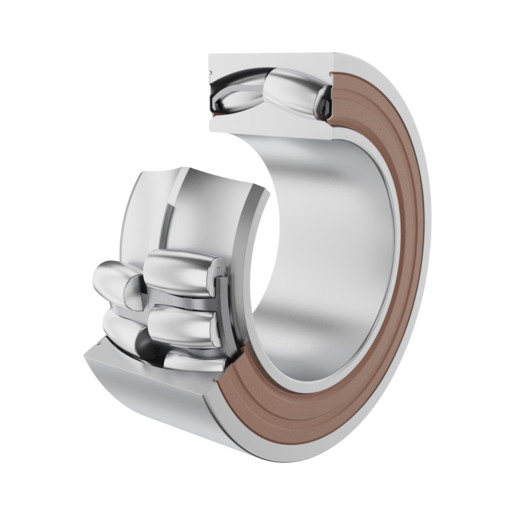

| Construction | Spherical roller bearing 240..-BE-XL-2VSR-H40, symmetric with rib washer | |
| Short Description | Spherical Roller Bearing |
Technical Data19 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 120 mm | |
| Outside Diamater (D) | 180 mm | |
| Total Width (B) | 60 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 450,000 N | |
| Basic Static Load Rating, Radial (C0R) | 690,000 N | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Minimum Diameter Shaft Shoulder (Da) | 128.8 mm | |
| Operating Temperature Max. (Tmax) | 180 °C | |
| Limiting Speed (Limiting Spe) | 860 1/min | |
| Maximum Recess Radius (Ra Max) | 2 mm | |
| Maximum Diameter Of Housing Shoulder (Da) | 171.2 mm | |
| Limiting Value Of Fa/Fr For The Applicability Of Diff. Values Of Factors X And Y (E) | 0.29 | |
| Dynamic Axial Load Factor (Y1) | 2.33 | |
| Bore Diameter Outer Ring (D1) | 170.5 mm | |
| Raceway Diameter Of The Inner Ring (D2) | 131 mm | |
| Minimum Chamfer Dimension (Rmin) | 2 mm | |
| Static Axial Load Factor (Y0) | 2.28 | |
| Dynamic Axial Load Factor (Y2) | 3.47 | |
| Fatigue Load Limit, Radial (Cur) | 86,000 N |
