Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications14 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | 240/1120 | |
| Bore diameter | d | 1120 mm |
| Outside diameter | D | 1580 mm |
| Width | B | 462 mm |
| Basic dynamic load rating | C | 20900 kN |
| Basic static load rating | C0 | 55000 kN |
| Fatigue load limit | Pu | 3300 kN |
| Reference speed | nref | 113 r/min |
| Limiting speed | nG | 280 r/min |
| Mass | ≈m | 2900 kg |
| Internal clearance | CN (Group N) — Normal internal clearance | |
| Cage | MB — Solid brass cage | |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 200 °C |
Product characteristics5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Design | B | With fixed central rib |
| Bore type | Z | Cylindrical |
| Cage | MB | Solid brass cage |
| Radial internal clearance | CN (Group N) | Normal internal clearance |
| Relubrication feature | Standard |
Main Dimensions & Performance Data9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 1,120 mm44.094 in |
| Outside diameter | D | 1,580 mm62.205 in |
| Width | B | 462 mm18.189 in |
| Basic dynamic load rating, radial | Cr | 20,900,000 N4,698,741.007 lbf |
| Basic static load rating, radial | C0r | 55,000,000 N12,365,107.914 lbf |
| Fatigue load limit, radial | Cur | 3,300,000 N741,906.475 lbf |
| Limiting speed | nG | 280 1/min |
| Reference speed | nϑr | 113 1/min |
| Mass | ≈m | 2,900 kg6,393.398 lbs |
Mounting dimensions3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum diameter shaft shoulder | da min | 1,154 mm45.433 in |
| Maximum diameter of housing shoulder | Da max | 1,546 mm60.866 in |
| Maximum recess radius | ra max | 8 mm0.315 in |
Dimensions4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum chamfer dimension | rmin | 9.5 mm0.374 in |
| Bore diameter outer ring | D1 | 1,429.7 mm56.287 in |
| Diameter lubrication hole | ds | 12.5 mm0.492 in |
| Width of lubricating groove | ns | 23.5 mm0.925 in |
Temperature range2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating temperature min. | Tmin | -30 °C-22 °F |
| Operating temperature max. | Tmax | 200 °C392 °F |
Calculation factors4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y | e | 0.28 |
| Dynamic axial load factor | Y1 | 2.45 |
| Dynamic axial load factor | Y2 | 3.64 |
| Static axial load factor | Y0 | 2.39 |
Capabilities & suitability9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Radial load capacity | Yes | |
| Axial load capacity in one direction | Yes | |
| Axial load capacity in both directions | Yes | |
| Suitable for grease lubrication | Yes | |
| Suitable for oil lubrication | Yes | |
| Unsealed design | Yes | |
| Largebearing | Yes | |
| Staticangularerrorandmisalignment | Yes | |
| Dynamicangularerrorandmisalignment | Yes |
Manufacturer Identity7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 390181 | |
| Brand | FAG | |
| Base Type | 240/1120 | |
| Old Designation | ["240/1120B.MB"] | |
| X Life Marking | n.r. | |
| SAP material number | 0190436780000 | |
| Base product | 2305091131 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

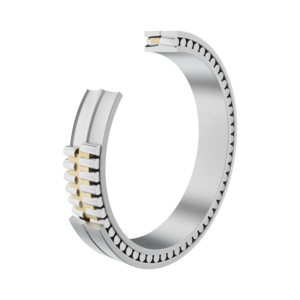

| Construction | Spherical roller bearing 240..-B-MB, symmetric 3 ribs | |
| Short Description | Spherical Roller Bearing |
Technical Data21 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 1,120 mm | |
| Outside Diamater (D) | 1,580 mm | |
| Total Width (B) | 462 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 20,900,000 N | |
| Basic Static Load Rating, Radial (C0R) | 55,000,000 N | |
| Diameter Lubrication Hole (Ds) | 12.5 mm | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Minimum Diameter Shaft Shoulder (Da) | 1,154 mm | |
| Operating Temperature Max. (Tmax) | 200 °C | |
| Limiting Speed (Limiting Spe) | 280 1/min | |
| Reference Speed (Nϑr) | 113 1/min | |
| Maximum Recess Radius (Ra Max) | 8 mm | |
| Maximum Diameter Of Housing Shoulder (Da) | 1,546 mm | |
| Limiting Value Of Fa/Fr For The Applicability Of Diff. Values Of Factors X And Y (E) | 0.28 | |
| Width Of Lubricating Groove (Ns) | 23.5 mm | |
| Dynamic Axial Load Factor (Y1) | 2.45 | |
| Bore Diameter Outer Ring (D1) | 1,429.7 mm | |
| Minimum Chamfer Dimension (Rmin) | 9.5 mm | |
| Static Axial Load Factor (Y0) | 2.39 | |
| Dynamic Axial Load Factor (Y2) | 3.64 | |
| Fatigue Load Limit, Radial (Cur) | 3,300,000 N |
