Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications13 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | 239SM600 | |

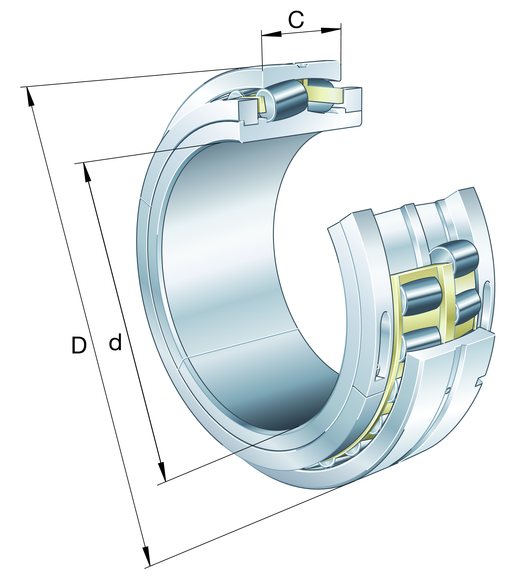

| Bore diameter | d | 600 mm |
| Outside diameter | D | 850 mm |
| Width | B | 165 mm |
| Basic dynamic load rating | C | 3850 kN |
| Basic static load rating | C0 | 8800 kN |
| Fatigue load limit | Pu | 560 kN |
| Limiting speed | nG | 280 r/min |
| Mass | ≈m | 410 kg |
| Internal clearance | CN (Group N) — Normal internal clearance | |
| Cage | MA — Solid brass cage | |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 200 °C |
Product characteristics5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore type | Z | Cylindrical |
| Cage | MA | Solid brass cage |
| Radial internal clearance | CN (Group N) | Normal internal clearance |
| Relubrication feature | Standard | |
| Splitted | SM | Split bearing metric |
Main Dimensions & Performance Data9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 600 mm23.622 in |
| Outside diameter | D | 850 mm33.465 in |
| Width, outer ring | C | 165 mm6.496 in |
| Basic dynamic load rating, radial | Cr | 3,850,000 N865,557.554 lbf |
| Basic static load rating, radial | C0r | 8,800,000 N1,978,417.266 lbf |
| Fatigue load limit, radial | Cur | 560,000 N125,899.281 lbf |
| Limiting speed | nG | 280 1/min |
| Maximum axial load | Fa max | 60,500 N13,601.619 lbf |
| Mass | ≈m | 410 kg903.894 lbs |
Mounting dimensions2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Tightening torque clamping screw | Mi | 295 Nm217.552 ft-lbs |
| Tightening torque clamping screw | Ma | 69 Nm50.885 ft-lbs |
Dimensions2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum chamfer dimension | rmin | 5 mm0.197 in |
| Width inner ring | B | 250 mm9.843 in |
Temperature range2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating temperature min. | Tmin | -30 °C-22 °F |
| Operating temperature max. | Tmax | 200 °C392 °F |
Calculation factors4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y | e | 0.18 |
| Dynamic axial load factor | Y1 | 3.66 |
| Dynamic axial load factor | Y2 | 5.46 |
| Static axial load factor | Y0 | 3.58 |
Capabilities & suitability10 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Radial load capacity | Yes | |
| Axial load capacity in one direction | Yes | |
| Axial load capacity in both directions | Yes | |
| Suitable for grease lubrication | Yes | |
| Suitable for oil lubrication | Yes | |
| Unsealed design | Yes | |
| Split | Yes | |
| Largebearing | Yes | |
| Staticangularerrorandmisalignment | Yes | |
| Dynamicangularerrorandmisalignment | Yes |
Manufacturer Identity4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 1718015 | |
| Brand | FAG | |
| Base Type | 239SM600 | |
| Base product | 2305091140 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Spherical roller bearing 239..-MA, symmetrically split | |
| Short Description | Spherical Roller Bearing |
Additional information2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bearing designation | 239/630K | |
| Adapter sleeve | H39/630-HG |
Technical Data18 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 600 mm | |
| Outside Diamater (D) | 850 mm | |
| Width, Outer Ring (C) | 165 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 3,850,000 N | |
| Basic Static Load Rating, Radial (C0R) | 8,800,000 N | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Operating Temperature Max. (Tmax) | 200 °C | |
| Limiting Speed (Limiting Spe) | 280 1/min | |
| Limiting Value Of Fa/Fr For The Applicability Of Diff. Values Of Factors X And Y (E) | 0.18 | |
| Width Inner Ring (B) | 250 mm | |
| Dynamic Axial Load Factor (Y1) | 3.66 | |
| Tightening Torque Clamping Screw (Mi) | 295 Nm | |
| Maximum Axial Load (Fa Max) | 60,500 N | |
| Minimum Chamfer Dimension (Rmin) | 5 mm | |
| Static Axial Load Factor (Y0) | 3.58 | |
| Tightening Torque Clamping Screw (Ma) | 69 Nm | |
| Dynamic Axial Load Factor (Y2) | 5.46 | |
| Fatigue Load Limit, Radial (Cur) | 560,000 N |
