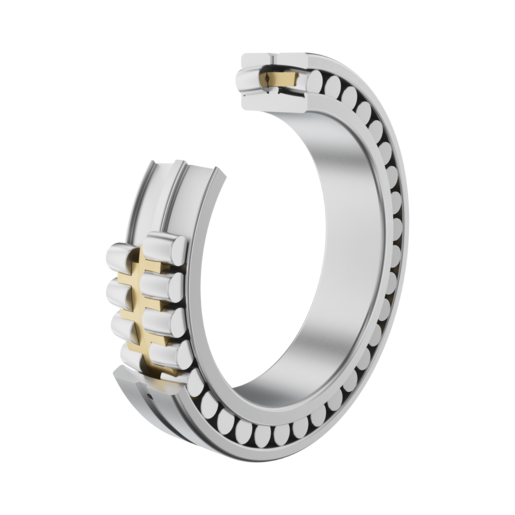

Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications14 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | 23940 | |

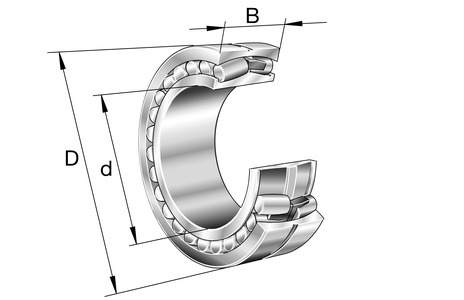

| Bore diameter | d | 200 mm |
| Outside diameter | D | 280 mm |
| Width | B | 60 mm |
| Basic dynamic load rating | C | 550 kN |
| Basic static load rating | C0 | 1070 kN |
| Fatigue load limit | Pu | 73 kN |
| Reference speed | nref | 1650 r/min |
| Limiting speed | nG | 2800 r/min |
| Mass | ≈m | 11.35 kg |
| Internal clearance | C5 (Group 5) — Internal clearance larger than C4 | |
| Cage | MB — Solid brass cage | |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 200 °C |
Product characteristics4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore type | Z | Cylindrical |
| Cage | MB | Solid brass cage |
| Radial internal clearance | C5 (Group 5) | Internal clearance larger than C4 |
| Relubrication feature | S | With 3 lubricating holes and groove |
Main Dimensions & Performance Data9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 200 mm7.874 in |
| Outside diameter | D | 280 mm11.024 in |
| Width | B | 60 mm2.362 in |
| Basic dynamic load rating, radial | Cr | 550,000 N123,651.079 lbf |
| Basic static load rating, radial | C0r | 1,070,000 N240,557.554 lbf |
| Fatigue load limit, radial | Cur | 73,000 N16,411.871 lbf |
| Limiting speed | nG | 2,800 1/min |
| Reference speed | nϑr | 1,650 1/min |
| Mass | ≈m | 11.35 kg25.022 lbs |
Mounting dimensions3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum diameter shaft shoulder | da min | 210.2 mm8.276 in |
| Maximum diameter of housing shoulder | Da max | 269.8 mm10.622 in |
| Maximum recess radius | ra max | 2.1 mm0.083 in |
Dimensions4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum chamfer dimension | rmin | 2.1 mm0.083 in |
| Bore diameter outer ring | D1 | 256.9 mm10.114 in |
| Diameter lubrication hole | ds | 6.3 mm0.248 in |
| Width of lubricating groove | ns | 12.2 mm0.48 in |
Temperature range2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating temperature min. | Tmin | -30 °C-22 °F |
| Operating temperature max. | Tmax | 200 °C392 °F |
Calculation factors4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y | e | 0.2 |
| Dynamic axial load factor | Y1 | 3.42 |
| Dynamic axial load factor | Y2 | 5.09 |
| Static axial load factor | Y0 | 3.34 |
Capabilities & suitability8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Radial load capacity | Yes | |
| Axial load capacity in one direction | Yes | |
| Axial load capacity in both directions | Yes | |
| Suitable for grease lubrication | Yes | |
| Suitable for oil lubrication | Yes | |
| Unsealed design | Yes | |
| Staticangularerrorandmisalignment | Yes | |
| Dynamicangularerrorandmisalignment | Yes |
Manufacturer Identity7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 390130 | |
| Brand | FAG | |
| Base Type | 23940 | |
| Old Designation | ["23940S.MB.C5"] | |
| X Life Marking | n.r. | |
| SAP material number | 0190417130050 | |
| Base product | 2305091131 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Spherical roller bearings 239, main dimensions to DIN 635-2 | |
| Short Description | Spherical Roller Bearing |
Technical Data21 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 200 mm | |
| Outside Diamater (D) | 280 mm | |
| Total Width (B) | 60 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 550,000 N | |
| Basic Static Load Rating, Radial (C0R) | 1,070,000 N | |
| Diameter Lubrication Hole (Ds) | 6.3 mm | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Minimum Diameter Shaft Shoulder (Da) | 210.2 mm | |
| Operating Temperature Max. (Tmax) | 200 °C | |
| Limiting Speed (Limiting Spe) | 2,800 1/min | |
| Reference Speed (Nϑr) | 1,650 1/min | |
| Maximum Recess Radius (Ra Max) | 2.1 mm | |
| Maximum Diameter Of Housing Shoulder (Da) | 269.8 mm | |
| Limiting Value Of Fa/Fr For The Applicability Of Diff. Values Of Factors X And Y (E) | 0.2 | |
| Width Of Lubricating Groove (Ns) | 12.2 mm | |
| Dynamic Axial Load Factor (Y1) | 3.42 | |
| Bore Diameter Outer Ring (D1) | 256.9 mm | |
| Minimum Chamfer Dimension (Rmin) | 2.1 mm | |
| Static Axial Load Factor (Y0) | 3.34 | |
| Dynamic Axial Load Factor (Y2) | 5.09 | |
| Fatigue Load Limit, Radial (Cur) | 73,000 N |
