Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications13 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | 23322 | |
| Bore diameter | d | 110 mm |
| Outside diameter | D | 240 mm |
| Width | B | 92.1 mm |
| Basic dynamic load rating | C | 1020 kN |
| Basic static load rating | C0 | 1130 kN |
| Fatigue load limit | Pu | 103 kN |
| Limiting speed | nG | 2800 r/min |
| Mass | ≈m | 20.5 kg |
| Internal clearance | C4 (Group 4) — Internal clearance larger than C3 | |
| Cage | M — Brass Cage | |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 200 °C |
Product characteristics8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Design | E1A | Without central rip |
| Bore type | Z | Cylindrical |
| Cage | M | Brass Cage |
| Radial internal clearance | C4 (Group 4) | Internal clearance larger than C3 |
| Relubrication feature | Standard | |
| Locating feature, bearing outer ring | Without | |
| Special material | Standard | |
| Spherical roller bearing for vibrating screens | T41A | For vibrating screens |
Main Dimensions & Performance Data8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 110 mm4.331 in |
| Outside diameter | D | 240 mm9.449 in |
| Width | B | 92.1 mm3.626 in |
| Basic dynamic load rating, radial | Cr | 1,020,000 N229,316.547 lbf |
| Basic static load rating, radial | C0r | 1,130,000 N254,046.763 lbf |
| Fatigue load limit, radial | Cur | 103,000 N23,156.475 lbf |
| Limiting speed | nG | 2,800 1/min |
| Mass | ≈m | 20.5 kg45.195 lbs |
Mounting dimensions3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum diameter shaft shoulder | da min | 124 mm4.882 in |
| Maximum diameter of housing shoulder | Da max | 226 mm8.898 in |
| Maximum recess radius | ra max | 2.5 mm0.098 in |
Dimensions5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum chamfer dimension | rmin | 3 mm0.118 in |
| Bore diameter outer ring | D1 | 199.8 mm7.866 in |
| Raceway diameter of the inner ring | d2 | 136 mm5.354 in |
| Diameter lubrication hole | ds | 6.3 mm0.248 in |
| Width of lubricating groove | ns | 12.2 mm0.48 in |
Temperature range2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating temperature min. | Tmin | -30 °C-22 °F |
| Operating temperature max. | Tmax | 200 °C392 °F |
Calculation factors4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y | e | 0.39 |
| Dynamic axial load factor | Y1 | 1.72 |
| Dynamic axial load factor | Y2 | 2.56 |
| Static axial load factor | Y0 | 1.68 |
Capabilities & suitability8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Radial load capacity | Yes | |
| Axial load capacity in one direction | Yes | |
| Axial load capacity in both directions | Yes | |
| Suitable for grease lubrication | Yes | |
| Suitable for oil lubrication | Yes | |
| Unsealed design | Yes | |
| Staticangularerrorandmisalignment | Yes | |
| Dynamicangularerrorandmisalignment | Yes |
Manufacturer Identity6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 1733305 | |
| Brand | FAG | |
| Base Type | 23322 | |
| X Life Marking | XL | |
| SAP material number | 0955621250000 | |
| Base product | 2305091121 |
Product Identity1 parameter
| Parameter | Symbol | Value |
|---|---|---|

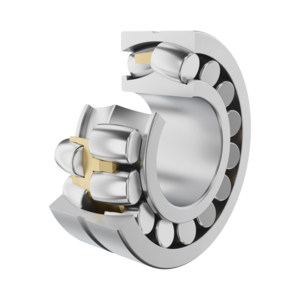

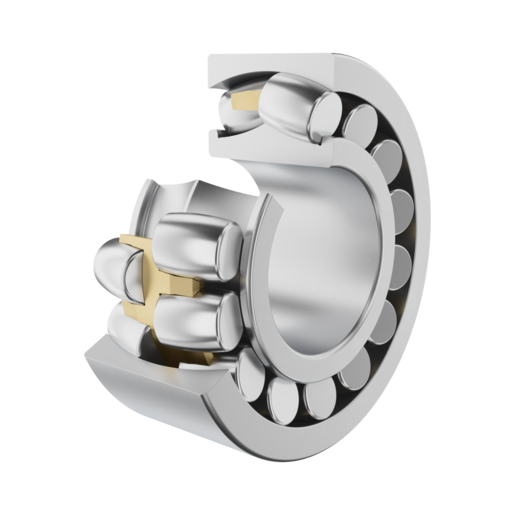

| Short Description | Spherical Roller Bearing |
Technical Data21 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 110 mm | |
| Outside Diamater (D) | 240 mm | |
| Total Width (B) | 92.1 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 1,020,000 N | |
| Basic Static Load Rating, Radial (C0R) | 1,130,000 N | |
| Diameter Lubrication Hole (Ds) | 6.3 mm | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Minimum Diameter Shaft Shoulder (Da) | 124 mm | |
| Operating Temperature Max. (Tmax) | 200 °C | |
| Limiting Speed (Limiting Spe) | 2,800 1/min | |
| Maximum Recess Radius (Ra Max) | 2.5 mm | |
| Maximum Diameter Of Housing Shoulder (Da) | 226 mm | |
| Limiting Value Of Fa/Fr For The Applicability Of Diff. Values Of Factors X And Y (E) | 0.39 | |
| Width Of Lubricating Groove (Ns) | 12.2 mm | |
| Dynamic Axial Load Factor (Y1) | 1.72 | |
| Bore Diameter Outer Ring (D1) | 199.8 mm | |
| Raceway Diameter Of The Inner Ring (D2) | 136 mm | |
| Minimum Chamfer Dimension (Rmin) | 3 mm | |
| Static Axial Load Factor (Y0) | 1.68 | |
| Dynamic Axial Load Factor (Y2) | 2.56 | |
| Fatigue Load Limit, Radial (Cur) | 103,000 N |
