Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications13 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | 23176 | |
| Bore diameter | d | 380 mm |
| Outside diameter | D | 620 mm |
| Width | B | 194 mm |
| Basic dynamic load rating | C | 4750 kN |
| Basic static load rating | C0 | 7600 kN |
| Fatigue load limit | Pu | 540 kN |
| Limiting speed | nG | 248 r/min |
| Mass | ≈m | 234 kg |
| Internal clearance | CN (Group N) — Normal internal clearance | |
| Cage | MB1 — Solid brass cage | |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 100 °C |
Product characteristics5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Design | BEA | With lose center lip ring |
| Bore type | Z | Cylindrical |
| Cage | MB1 | Solid brass cage |
| Radial internal clearance | CN (Group N) | Normal internal clearance |
| Relubrication feature | Standard |
Main Dimensions & Performance Data8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 380 mm14.961 in |
| Outside diameter | D | 620 mm24.409 in |
| Width | B | 194 mm7.638 in |
| Basic dynamic load rating, radial | Cr | 4,750,000 N1,067,895.683 lbf |
| Basic static load rating, radial | C0r | 7,600,000 N1,708,633.094 lbf |
| Fatigue load limit, radial | Cur | 540,000 N121,402.878 lbf |
| Limiting speed | nG | 248 1/min |
| Mass | ≈m | 234 kg515.881 lbs |
Mounting dimensions3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum diameter shaft shoulder | da min | 400 mm15.748 in |
| Maximum diameter of housing shoulder | Da max | 600 mm23.622 in |
| Maximum recess radius | ra max | 4 mm0.157 in |
Dimensions4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum chamfer dimension | rmin | 5 mm0.197 in |
| Bore diameter outer ring | D1 | 544.9 mm21.453 in |
| Diameter lubrication hole | ds | 12.5 mm0.492 in |
| Width of lubricating groove | ns | 23.5 mm0.925 in |
Temperature range2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating temperature min. | Tmin | -30 °C-22 °F |
| Operating temperature max. | Tmax | 100 °C212 °F |
Calculation factors4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y | e | 0.28 |
| Dynamic axial load factor | Y1 | 2.37 |
| Dynamic axial load factor | Y2 | 3.53 |
| Static axial load factor | Y0 | 2.32 |
Capabilities & suitability9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Radial load capacity | Yes | |
| Axial load capacity in one direction | Yes | |
| Axial load capacity in both directions | Yes | |
| Lifetimelubricationfreedomfrommaintenance | Yes | |
| Suitable for grease lubrication | Yes | |
| Sealedonbothsides | Yes | |
| Largebearing | Yes | |
| Staticangularerrorandmisalignment | Yes | |
| Dynamicangularerrorandmisalignment | Yes |
Manufacturer Identity7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 1717984 | |
| Brand | FAG | |
| Base Type | 23176 | |
| Base product | 2305091122 | |
| Bearing X designation | 23176-BEA-XL-2RSR-MB1 | |
| Mounting Manager ID | 23176-BEA-XL-2RSR-MB1 | |
| Grease application ID | 23176-BEA-XL-2RSR-MB1 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

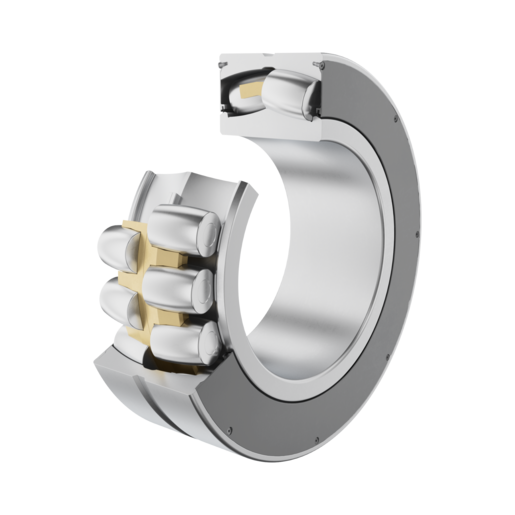

| Construction | Sealed spherical roller bearing, 231..-BEA-XL-K-2RSR, lip seal on both sides | |
| Short Description | Spherical Roller Bearing |
Technical Data20 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 380 mm | |
| Outside Diamater (D) | 620 mm | |
| Total Width (B) | 194 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 4,750,000 N | |
| Basic Static Load Rating, Radial (C0R) | 7,600,000 N | |
| Diameter Lubrication Hole (Ds) | 12.5 mm | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Minimum Diameter Shaft Shoulder (Da) | 400 mm | |
| Operating Temperature Max. (Tmax) | 100 °C | |
| Limiting Speed (Limiting Spe) | 248 1/min | |
| Maximum Recess Radius (Ra Max) | 4 mm | |
| Maximum Diameter Of Housing Shoulder (Da) | 600 mm | |
| Limiting Value Of Fa/Fr For The Applicability Of Diff. Values Of Factors X And Y (E) | 0.28 | |
| Width Of Lubricating Groove (Ns) | 23.5 mm | |
| Dynamic Axial Load Factor (Y1) | 2.37 | |
| Bore Diameter Outer Ring (D1) | 544.9 mm | |
| Minimum Chamfer Dimension (Rmin) | 5 mm | |
| Static Axial Load Factor (Y0) | 2.32 | |
| Dynamic Axial Load Factor (Y2) | 3.53 | |
| Fatigue Load Limit, Radial (Cur) | 540,000 N |
