Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications14 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | 230/500 | |
| Bore diameter | d | 500 mm |
| Outside diameter | D | 720 mm |
| Width | B | 167 mm |
| Basic dynamic load rating | C | 4700 kN |
| Basic static load rating | C0 | 8700 kN |
| Fatigue load limit | Pu | 760 kN |
| Reference speed | nref | 510 r/min |
| Limiting speed | nG | 890 r/min |
| Mass | ≈m | 217.5 kg |
| Internal clearance | CN (Group N) — Normal internal clearance | |
| Cage | MB1 — Solid brass cage | |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 200 °C |
Product characteristics5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Design | BEA | With lose center lip ring |
| Bore type | K | Tapered, taper 1:12 |
| Cage | MB1 | Solid brass cage |
| Radial internal clearance | CN (Group N) | Normal internal clearance |
| Relubrication feature | Standard |
Main Dimensions & Performance Data9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 500 mm19.685 in |
| Outside diameter | D | 720 mm28.346 in |
| Width | B | 167 mm6.575 in |
| Basic dynamic load rating, radial | Cr | 4,700,000 N1,056,654.676 lbf |
| Basic static load rating, radial | C0r | 8,700,000 N1,955,935.252 lbf |
| Fatigue load limit, radial | Cur | 760,000 N170,863.309 lbf |
| Limiting speed | nG | 890 1/min |
| Reference speed | nϑr | 510 1/min |
| Mass | ≈m | 217.5 kg479.505 lbs |
Mounting dimensions6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum diameter shaft shoulder | da min | 523 mm20.591 in |
| Maximum diameter of housing shoulder | Da max | 697 mm27.441 in |
| Maximum recess radius | ra max | 5 mm0.197 in |
| Maximum diameter of shaft shoulder | da max | 550 mm21.654 in |
| Minimum cavity diameter of the sleeve | db min | 519 mm20.433 in |
| Minimum cavity width of the sleeve | Ba min | 18 mm0.709 in |
Dimensions4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum chamfer dimension | rmin | 6 mm0.236 in |
| Bore diameter outer ring | D1 | 656.5 mm25.846 in |
| Diameter lubrication hole | ds | 12.5 mm0.492 in |
| Width of lubricating groove | ns | 23.5 mm0.925 in |
Temperature range2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating temperature min. | Tmin | -30 °C-22 °F |
| Operating temperature max. | Tmax | 200 °C392 °F |
Calculation factors4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y | e | 0.21 |
| Dynamic axial load factor | Y1 | 3.24 |
| Dynamic axial load factor | Y2 | 4.82 |
| Static axial load factor | Y0 | 3.16 |
Capabilities & suitability9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Radial load capacity | Yes | |
| Axial load capacity in one direction | Yes | |
| Axial load capacity in both directions | Yes | |
| Suitable for grease lubrication | Yes | |
| Suitable for oil lubrication | Yes | |
| Unsealed design | Yes | |
| Largebearing | Yes | |
| Staticangularerrorandmisalignment | Yes | |
| Dynamicangularerrorandmisalignment | Yes |
Manufacturer Identity9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 1538687 | |
| Brand | FAG | |
| Base Type | 230/500 | |
| X Life Marking | XL | |
| SAP material number | 0947516680000 | |
| Base product | 2305091122 | |
| Bearing X designation | 230/500-BEA-XL-K-MB1 | |
| Mounting Manager ID | 230/500-BEA-XL-K-MB1 | |
| Grease application ID | 230/500-BEA-XL-K-MB1 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

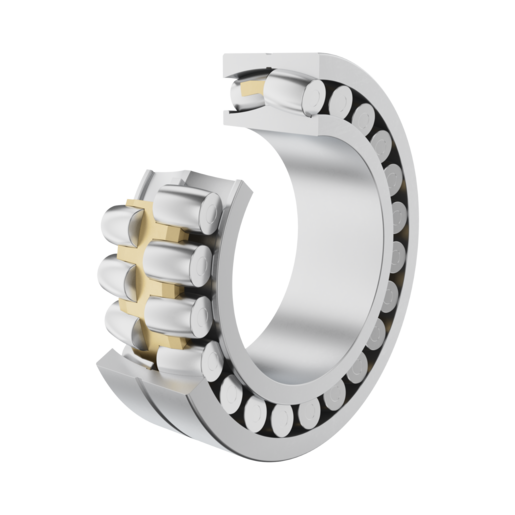

| Construction | Spherical roller bearing 230..-BEA-XL-K-MB1, symmetric 2 outer ribs with rib washer | |
| Short Description | Spherical Roller Bearing |
Additional information2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Adapter sleeve | H30/500-HG | |
| Withdrawal sleeve | AHX30/500-H |
Technical Data24 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 500 mm | |
| Outside Diamater (D) | 720 mm | |
| Total Width (B) | 167 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 4,700,000 N | |
| Basic Static Load Rating, Radial (C0R) | 8,700,000 N | |
| Diameter Lubrication Hole (Ds) | 12.5 mm | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Minimum Diameter Shaft Shoulder (Da) | 523 mm | |
| Operating Temperature Max. (Tmax) | 200 °C | |
| Limiting Speed (Limiting Spe) | 890 1/min | |
| Reference Speed (Nϑr) | 510 1/min | |
| Maximum Recess Radius (Ra Max) | 5 mm | |
| Maximum Diameter Of Housing Shoulder (Da) | 697 mm | |
| Limiting Value Of Fa/Fr For The Applicability Of Diff. Values Of Factors X And Y (E) | 0.21 | |
| Width Of Lubricating Groove (Ns) | 23.5 mm | |
| Dynamic Axial Load Factor (Y1) | 3.24 | |
| Bore Diameter Outer Ring (D1) | 656.5 mm | |
| Maximum Diameter Of Shaft Shoulder (Da Max) | 550 mm | |
| Minimum Chamfer Dimension (Rmin) | 6 mm | |
| Static Axial Load Factor (Y0) | 3.16 | |
| Dynamic Axial Load Factor (Y2) | 4.82 | |
| Minimum Cavity Width Of The Sleeve (Ba Min) | 18 mm | |
| Minimum Cavity Diameter Of The Sleeve (Db Min) | 519 mm | |
| Fatigue Load Limit, Radial (Cur) | 760,000 N |
