Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications14 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | 22352 | |
| Bore diameter | d | 260 mm |
| Outside diameter | D | 540 mm |
| Width | B | 165 mm |
| Basic dynamic load rating | C | 3650 kN |
| Basic static load rating | C0 | 4650 kN |
| Fatigue load limit | Pu | 360 kN |
| Reference speed | nref | 740 r/min |
| Limiting speed | nG | 1390 r/min |
| Mass | ≈m | 177.02 kg |
| Internal clearance | CN (Group N) — Normal internal clearance | |
| Cage | MB1 — Solid brass cage | |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 200 °C |
Product characteristics5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Design | BEA | With lose center lip ring |
| Bore type | K | Tapered, taper 1:12 |
| Cage | MB1 | Solid brass cage |
| Radial internal clearance | CN (Group N) | Normal internal clearance |
| Relubrication feature | Standard |
Main Dimensions & Performance Data9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 260 mm10.236 in |
| Outside diameter | D | 540 mm21.26 in |
| Width | B | 165 mm6.496 in |
| Basic dynamic load rating, radial | Cr | 3,650,000 N820,593.525 lbf |
| Basic static load rating, radial | C0r | 4,650,000 N1,045,413.669 lbf |
| Fatigue load limit, radial | Cur | 360,000 N80,935.252 lbf |
| Limiting speed | nG | 1,390 1/min |
| Reference speed | nϑr | 740 1/min |
| Mass | ≈m | 177.02 kg390.262 lbs |
Mounting dimensions6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum diameter shaft shoulder | da min | 286 mm11.26 in |
| Maximum diameter of housing shoulder | Da max | 514 mm20.236 in |
| Maximum recess radius | ra max | 5 mm0.197 in |
| Maximum diameter of shaft shoulder | da max | 322 mm12.677 in |
| Minimum cavity diameter of the sleeve | db min | 278 mm10.945 in |
| Minimum cavity width of the sleeve | Ba min | 11 mm0.433 in |
Dimensions4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum chamfer dimension | rmin | 6 mm0.236 in |
| Bore diameter outer ring | D1 | 460.6 mm18.134 in |
| Diameter lubrication hole | ds | 12.5 mm0.492 in |
| Width of lubricating groove | ns | 23.5 mm0.925 in |
Temperature range2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating temperature min. | Tmin | -30 °C-22 °F |
| Operating temperature max. | Tmax | 200 °C392 °F |
Calculation factors4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y | e | 0.31 |
| Dynamic axial load factor | Y1 | 2.15 |
| Dynamic axial load factor | Y2 | 3.2 |
| Static axial load factor | Y0 | 2.1 |
Capabilities & suitability9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Radial load capacity | Yes | |
| Axial load capacity in one direction | Yes | |
| Axial load capacity in both directions | Yes | |
| Suitable for grease lubrication | Yes | |
| Suitable for oil lubrication | Yes | |
| Unsealed design | Yes | |
| Largebearing | Yes | |
| Staticangularerrorandmisalignment | Yes | |
| Dynamicangularerrorandmisalignment | Yes |
Manufacturer Identity10 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 389157 | |
| Brand | FAG | |
| Base Type | 22352 | |
| Old Designation | ["22352-E1A-K-MB1","22352-K-MB"] | |
| X Life Marking | XL | |
| SAP material number | 0661151670000 | |
| Base product | 2305091122 | |
| Bearing X designation | 22352-BEA-XL-K-MB1 | |
| Mounting Manager ID | 22352-BEA-XL-K-MB1 | |
| Grease application ID | 22352-BEA-XL-K-MB1 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

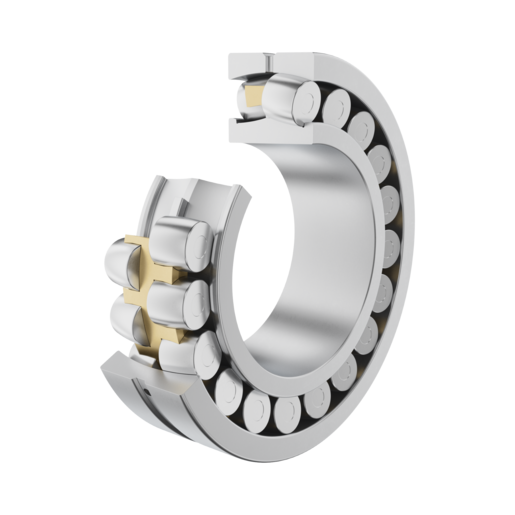

| Construction | Spherical roller bearing 223..-BEA-XL-K-MB1, symmetric 2 outer ribs with rib washer | |
| Short Description | Spherical Roller Bearing |
Additional information2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Adapter sleeve | H2352X | |
| Withdrawal sleeve | AH2352G |
Technical Data24 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 260 mm | |
| Outside Diamater (D) | 540 mm | |
| Total Width (B) | 165 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 3,650,000 N | |
| Basic Static Load Rating, Radial (C0R) | 4,650,000 N | |
| Diameter Lubrication Hole (Ds) | 12.5 mm | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Minimum Diameter Shaft Shoulder (Da) | 286 mm | |
| Operating Temperature Max. (Tmax) | 200 °C | |
| Limiting Speed (Limiting Spe) | 1,390 1/min | |
| Reference Speed (Nϑr) | 740 1/min | |
| Maximum Recess Radius (Ra Max) | 5 mm | |
| Maximum Diameter Of Housing Shoulder (Da) | 514 mm | |
| Limiting Value Of Fa/Fr For The Applicability Of Diff. Values Of Factors X And Y (E) | 0.31 | |
| Width Of Lubricating Groove (Ns) | 23.5 mm | |
| Dynamic Axial Load Factor (Y1) | 2.15 | |
| Bore Diameter Outer Ring (D1) | 460.6 mm | |
| Maximum Diameter Of Shaft Shoulder (Da Max) | 322 mm | |
| Minimum Chamfer Dimension (Rmin) | 6 mm | |
| Static Axial Load Factor (Y0) | 2.1 | |
| Dynamic Axial Load Factor (Y2) | 3.2 | |
| Minimum Cavity Width Of The Sleeve (Ba Min) | 11 mm | |
| Minimum Cavity Diameter Of The Sleeve (Db Min) | 278 mm | |
| Fatigue Load Limit, Radial (Cur) | 360,000 N |
