Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications14 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | 22326 | |

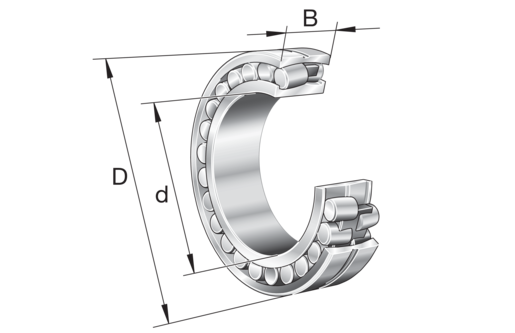

| Bore diameter | d | 130 mm |
| Outside diameter | D | 280 mm |
| Width | B | 93 mm |
| Basic dynamic load rating | C | 1250 kN |
| Basic static load rating | C0 | 1370 kN |
| Fatigue load limit | Pu | 120 kN |
| Reference speed | nref | 1820 r/min |
| Limiting speed | nG | 2650 r/min |
| Mass | ≈m | 27.107 kg |
| Internal clearance | C3 (Group 3) — Internal clearance larger than CN | |
| Cage | MA — Solid brass cage | |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 200 °C |
Product characteristics6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Design | E1A | Without central rip |
| Bore type | Z | Cylindrical |
| Cage | MA | Solid brass cage |
| Radial internal clearance | C3 (Group 3) | Internal clearance larger than CN |
| Relubrication feature | Standard | |
| Spherical roller bearing for vibrating screens | T41A | For vibrating screens |
Main Dimensions & Performance Data9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 130 mm5.118 in |
| Outside diameter | D | 280 mm11.024 in |
| Width | B | 93 mm3.661 in |
| Basic dynamic load rating, radial | Cr | 1,250,000 N281,025.18 lbf |
| Basic static load rating, radial | C0r | 1,370,000 N308,003.597 lbf |
| Fatigue load limit, radial | Cur | 120,000 N26,978.417 lbf |
| Limiting speed | nG | 2,650 1/min |
| Reference speed | nϑr | 1,820 1/min |
| Mass | ≈m | 27.107 kg59.761 lbs |
Mounting dimensions3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum diameter shaft shoulder | da min | 147 mm5.787 in |
| Maximum diameter of housing shoulder | Da max | 263 mm10.354 in |
| Maximum recess radius | ra max | 3 mm0.118 in |
Dimensions5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum chamfer dimension | rmin | 4 mm0.157 in |
| Bore diameter outer ring | D1 | 239.5 mm9.429 in |
| Raceway diameter of the inner ring | d2 | 162.2 mm6.386 in |
| Diameter lubrication hole | ds | 9.5 mm0.374 in |
| Width of lubricating groove | ns | 17.7 mm0.697 in |
Temperature range2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating temperature min. | Tmin | -30 °C-22 °F |
| Operating temperature max. | Tmax | 200 °C392 °F |
Calculation factors4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y | e | 0.33 |
| Dynamic axial load factor | Y1 | 2.06 |
| Dynamic axial load factor | Y2 | 3.06 |
| Static axial load factor | Y0 | 2.01 |
Manufacturer Identity7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 388801 | |
| Brand | FAG | |
| Base Type | 22326 | |
| Old Designation | ["22326-E1A-MA-T41A-C3","22326E1A.MA.C3.T41A"] | |
| X Life Marking | XL | |
| SAP material number | 0190220500030 | |
| Base product | 2305091121 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Spherical roller bearing 223..-E1A-XL-MA-T41A, symmetric 2 outer ribs | |
| Short Description | Spherical Roller Bearing |
Technical Data22 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 130 mm | |
| Outside Diamater (D) | 280 mm | |
| Total Width (B) | 93 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 1,250,000 N | |
| Basic Static Load Rating, Radial (C0R) | 1,370,000 N | |
| Diameter Lubrication Hole (Ds) | 9.5 mm | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Minimum Diameter Shaft Shoulder (Da) | 147 mm | |
| Operating Temperature Max. (Tmax) | 200 °C | |
| Limiting Speed (Limiting Spe) | 2,650 1/min | |
| Reference Speed (Nϑr) | 1,820 1/min | |
| Maximum Recess Radius (Ra Max) | 3 mm | |
| Maximum Diameter Of Housing Shoulder (Da) | 263 mm | |
| Limiting Value Of Fa/Fr For The Applicability Of Diff. Values Of Factors X And Y (E) | 0.33 | |
| Width Of Lubricating Groove (Ns) | 17.7 mm | |
| Dynamic Axial Load Factor (Y1) | 2.06 | |
| Bore Diameter Outer Ring (D1) | 239.5 mm | |
| Raceway Diameter Of The Inner Ring (D2) | 162.2 mm | |
| Minimum Chamfer Dimension (Rmin) | 4 mm | |
| Static Axial Load Factor (Y0) | 2.01 | |
| Dynamic Axial Load Factor (Y2) | 3.06 | |
| Fatigue Load Limit, Radial (Cur) | 120,000 N |
