Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications14 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | 22315 | |
| Bore diameter | d | 75 mm |
| Outside diameter | D | 160 mm |
| Width | B | 55 mm |
| Basic dynamic load rating | C | 445 kN |
| Basic static load rating | C0 | 450 kN |
| Fatigue load limit | Pu | 41.5 kN |
| Reference speed | nref | 3550 r/min |
| Limiting speed | nG | 4500 r/min |
| Mass | ≈m | 5.322 kg |
| Internal clearance | CN (Group N) — Normal internal clearance | |
| Cage | JPA — Sheet metal cage | |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 200 °C |
Product characteristics5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Design | E1 | Without central rip |
| Bore type | Z | Cylindrical |
| Cage | JPA | Sheet metal cage |
| Radial internal clearance | CN (Group N) | Normal internal clearance |
| Relubrication feature | H40 | Without lubricating groove and holes |
Main Dimensions & Performance Data9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 75 mm2.953 in |
| Outside diameter | D | 160 mm6.299 in |
| Width | B | 55 mm2.165 in |
| Basic dynamic load rating, radial | Cr | 445,000 N100,044.964 lbf |
| Basic static load rating, radial | C0r | 450,000 N101,169.065 lbf |
| Fatigue load limit, radial | Cur | 41,500 N9,330.036 lbf |
| Limiting speed | nG | 4,500 1/min |
| Reference speed | nϑr | 3,550 1/min |
| Mass | ≈m | 5.322 kg11.733 lbs |
Mounting dimensions3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum diameter shaft shoulder | da min | 87 mm3.425 in |
| Maximum diameter of housing shoulder | Da max | 148 mm5.827 in |
| Maximum recess radius | ra max | 2.1 mm0.083 in |
Dimensions3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum chamfer dimension | rmin | 2.1 mm0.083 in |
| Bore diameter outer ring | D1 | 136.3 mm5.366 in |
| Raceway diameter of the inner ring | d2 | 92.4 mm3.638 in |
Temperature range2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating temperature min. | Tmin | -30 °C-22 °F |
| Operating temperature max. | Tmax | 200 °C392 °F |
Calculation factors4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y | e | 0.34 |
| Dynamic axial load factor | Y1 | 1.99 |
| Dynamic axial load factor | Y2 | 2.96 |
| Static axial load factor | Y0 | 1.94 |
Capabilities & suitability8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Radial load capacity | Yes | |
| Axial load capacity in one direction | Yes | |
| Axial load capacity in both directions | Yes | |
| Suitable for grease lubrication | Yes | |
| Suitable for oil lubrication | Yes | |
| Unsealed design | Yes | |
| Staticangularerrorandmisalignment | Yes | |
| Dynamicangularerrorandmisalignment | Yes |
Manufacturer Identity7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 388081 | |
| Brand | FAG | |
| Base Type | 22315 | |
| Old Designation | ["22315-E1-H40"] | |
| X Life Marking | XL | |
| SAP material number | 0392466120000 | |
| Base product | 2305091103 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

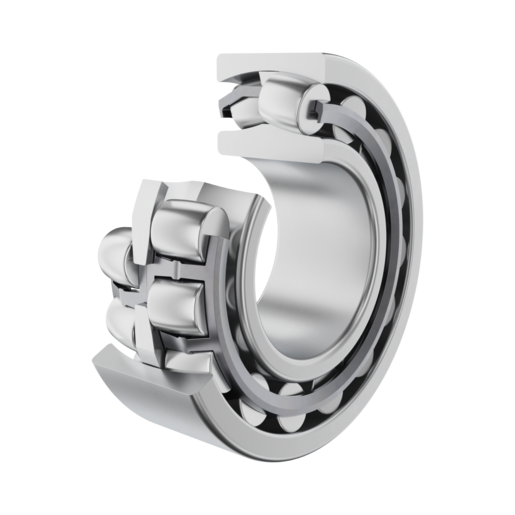

| Construction | Spherical roller bearing 223..-E1-XL-H40, symmetric with cage guidance ring | |
| Short Description | Spherical Roller Bearing |
Technical Data20 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 75 mm | |
| Outside Diamater (D) | 160 mm | |
| Total Width (B) | 55 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 445,000 N | |
| Basic Static Load Rating, Radial (C0R) | 450,000 N | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Minimum Diameter Shaft Shoulder (Da) | 87 mm | |
| Operating Temperature Max. (Tmax) | 200 °C | |
| Limiting Speed (Limiting Spe) | 4,500 1/min | |
| Reference Speed (Nϑr) | 3,550 1/min | |
| Maximum Recess Radius (Ra Max) | 2.1 mm | |
| Maximum Diameter Of Housing Shoulder (Da) | 148 mm | |
| Limiting Value Of Fa/Fr For The Applicability Of Diff. Values Of Factors X And Y (E) | 0.34 | |
| Dynamic Axial Load Factor (Y1) | 1.99 | |
| Bore Diameter Outer Ring (D1) | 136.3 mm | |
| Raceway Diameter Of The Inner Ring (D2) | 92.4 mm | |
| Minimum Chamfer Dimension (Rmin) | 2.1 mm | |
| Static Axial Load Factor (Y0) | 1.94 | |
| Dynamic Axial Load Factor (Y2) | 2.96 | |
| Fatigue Load Limit, Radial (Cur) | 41,500 N |
