Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications12 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 177.8 mm |
| Outside diameter | D | 340 mm |
| Width | B | 92 mm |
| Basic dynamic load rating | C | 1140 kN |
| Basic static load rating | C0 | 1640 kN |
| Fatigue load limit | Pu | 115 kN |
| Limiting speed | nG | 860 r/min |
| Mass | ≈m | 41.277 kg |
| Internal clearance | CN (Group N) — Normal internal clearance | |
| Cage | TVPA — Plastic cage | |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 120 °C |
Product characteristics6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Design | E1A | Without central rip |
| Bore type | Z | Cylindrical |
| Cage | TVPA | Plastic cage |
| Radial internal clearance | CN (Group N) | Normal internal clearance |
| Relubrication feature | Standard | |
| Splitted | S. | Split bearing inch |

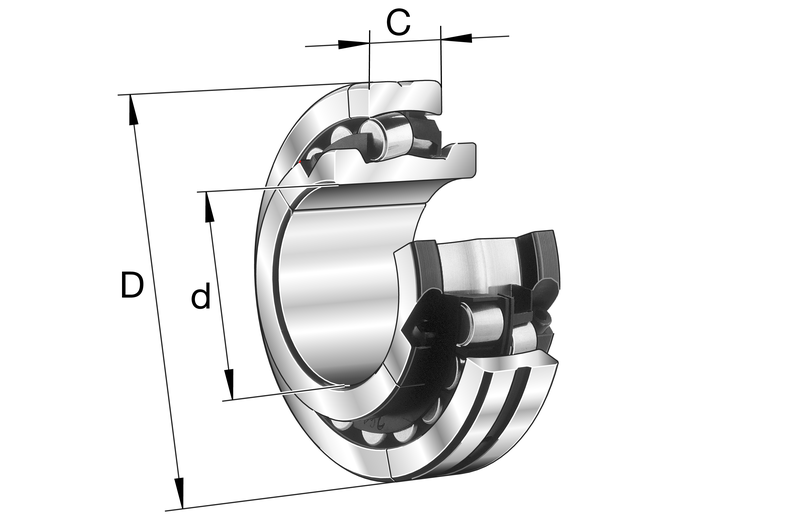

Main Dimensions & Performance Data9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 177.8 mm7 in |
| Outside diameter | D | 340 mm13.386 in |
| Width, outer ring | C | 92 mm3.622 in |
| Basic dynamic load rating, radial | Cr | 1,140,000 N256,294.964 lbf |
| Basic static load rating, radial | C0r | 1,640,000 N368,705.036 lbf |
| Fatigue load limit, radial | Cur | 115,000 N25,854.317 lbf |
| Limiting speed | nG | 860 1/min |
| Maximum axial load | Fa max | 22,000 N4,946.043 lbf |
| Mass | ≈m | 41.277 kg91 lbs |
Mounting dimensions2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Tightening torque clamping screw | Mi | 69 Nm50.885 ft-lbs |
| Tightening torque clamping screw | Ma | 35 Nm25.811 ft-lbs |
Dimensions3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum chamfer dimension | rmin | 4 mm0.157 in |
| Bore diameter IR/WS | d1 | 177.8 mm7 in |
| Width inner ring | B | 142 mm5.591 in |
Temperature range2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating temperature min. | Tmin | -30 °C-22 °F |
| Operating temperature max. | Tmax | 120 °C248 °F |
Calculation factors4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y | e | 0.25 |
| Dynamic axial load factor | Y1 | 2.71 |
| Dynamic axial load factor | Y2 | 4.04 |
| Static axial load factor | Y0 | 2.65 |
Capabilities & suitability9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Radial load capacity | Yes | |
| Axial load capacity in one direction | Yes | |
| Axial load capacity in both directions | Yes | |
| Suitable for grease lubrication | Yes | |
| Suitable for oil lubrication | Yes | |
| Unsealed design | Yes | |
| Split | Yes | |
| Staticangularerrorandmisalignment | Yes | |
| Dynamicangularerrorandmisalignment | Yes |
Manufacturer Identity8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 391015 | |
| Brand | FAG | |
| Base Type | 222S.700 | |
| SAP material number | 0190190760000 | |
| Base product | 2305091140 | |
| Bearing X designation | 222S.700 | |
| Mounting Manager ID | 222S.700 | |
| Grease application ID | 222S.700 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Spherical roller bearing 222S | |
| Short Description | Spherical Roller Bearing |
Technical Data19 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 177.8 mm | |
| Outside Diamater (D) | 340 mm | |
| Width, Outer Ring (C) | 92 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 1,140,000 N | |
| Basic Static Load Rating, Radial (C0R) | 1,640,000 N | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Operating Temperature Max. (Tmax) | 120 °C | |
| Limiting Speed (Limiting Spe) | 860 1/min | |
| Bore Diameter Ir/Ws (D1) | 177.8 mm | |
| Limiting Value Of Fa/Fr For The Applicability Of Diff. Values Of Factors X And Y (E) | 0.25 | |
| Width Inner Ring (B) | 142 mm | |
| Dynamic Axial Load Factor (Y1) | 2.71 | |
| Tightening Torque Clamping Screw (Mi) | 69 Nm | |
| Maximum Axial Load (Fa Max) | 22,000 N | |
| Minimum Chamfer Dimension (Rmin) | 4 mm | |
| Static Axial Load Factor (Y0) | 2.65 | |
| Tightening Torque Clamping Screw (Ma) | 35 Nm | |
| Dynamic Axial Load Factor (Y2) | 4.04 | |
| Fatigue Load Limit, Radial (Cur) | 115,000 N |
