Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications14 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | 22216 | |
| Bore diameter | d | 80 mm |
| Outside diameter | D | 140 mm |
| Width | B | 33 mm |
| Basic dynamic load rating | C | 250 kN |
| Basic static load rating | C0 | 270 kN |
| Fatigue load limit | Pu | 34.5 kN |
| Reference speed | nref | 3550 r/min |
| Limiting speed | nG | 6200 r/min |
| Mass | ≈m | 2.081 kg |
| Internal clearance | C2 (Group 2) — Internal clearance smaller than CN | |
| Cage | JPA — Sheet metal cage | |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 200 °C |
Product characteristics5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Design | E1 | Without central rip |
| Bore type | K | Tapered, taper 1:12 |
| Cage | JPA | Sheet metal cage |
| Radial internal clearance | C2 (Group 2) | Internal clearance smaller than CN |
| Relubrication feature | H40 | Without lubricating groove and holes |
Main Dimensions & Performance Data9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 80 mm3.15 in |
| Outside diameter | D | 140 mm5.512 in |
| Width | B | 33 mm1.299 in |
| Basic dynamic load rating, radial | Cr | 250,000 N56,205.036 lbf |
| Basic static load rating, radial | C0r | 270,000 N60,701.439 lbf |
| Fatigue load limit, radial | Cur | 34,500 N7,756.295 lbf |
| Limiting speed | nG | 6,200 1/min |
| Reference speed | nϑr | 3,550 1/min |
| Mass | ≈m | 2.081 kg4.588 lbs |
Mounting dimensions6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum diameter shaft shoulder | da min | 91 mm3.583 in |
| Maximum diameter of shaft shoulder | da max | 94 mm3.701 in |
| Maximum diameter of housing shoulder | Da max | 129 mm5.079 in |
| Maximum recess radius | ra max | 2 mm0.079 in |
| Minimum cavity diameter of the sleeve | db min | 85 mm3.346 in |
| Minimum cavity width of the sleeve | Ba min | 12 mm0.472 in |
Dimensions3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum chamfer dimension | rmin | 2 mm0.079 in |
| Bore diameter outer ring | D1 | 126.8 mm4.992 in |
| Raceway diameter of the inner ring | d2 | 94.9 mm3.736 in |
Temperature range2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating temperature min. | Tmin | -30 °C-22 °F |
| Operating temperature max. | Tmax | 200 °C392 °F |
Calculation factors4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y | e | 0.22 |
| Dynamic axial load factor | Y1 | 3.14 |
| Dynamic axial load factor | Y2 | 4.67 |
| Static axial load factor | Y0 | 3.07 |
Capabilities & suitability8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Radial load capacity | Yes | |
| Axial load capacity in one direction | Yes | |
| Axial load capacity in both directions | Yes | |
| Suitable for grease lubrication | Yes | |
| Suitable for oil lubrication | Yes | |
| Unsealed design | Yes | |
| Staticangularerrorandmisalignment | Yes | |
| Dynamicangularerrorandmisalignment | Yes |
Manufacturer Identity7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 388069 | |
| Brand | FAG | |
| Base Type | 22216 | |
| Old Designation | ["22216E1K.C2.H40","22216-E1-K-H40-C2"] | |
| X Life Marking | XL | |
| SAP material number | 0190165900020 | |
| Base product | 2305091103 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

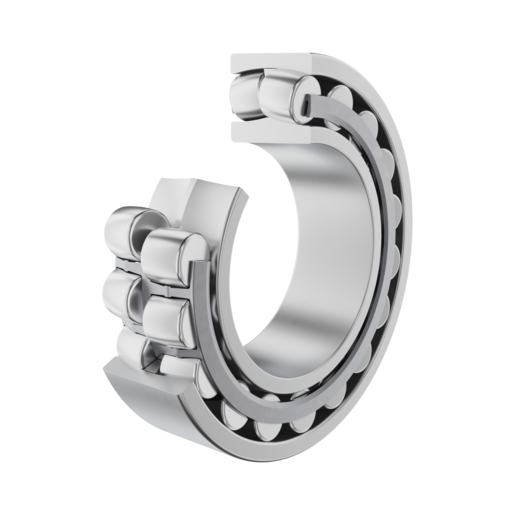

| Construction | Spherical roller bearing 222..-E1-XL-K-H40, symmetric with cage guidance ring | |
| Short Description | Spherical Roller Bearing |
Additional information2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Adapter sleeve | H316 | |
| Withdrawal sleeve | AH316 |
Technical Data23 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 80 mm | |
| Outside Diamater (D) | 140 mm | |
| Total Width (B) | 33 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 250,000 N | |
| Basic Static Load Rating, Radial (C0R) | 270,000 N | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Minimum Diameter Shaft Shoulder (Da) | 91 mm | |
| Operating Temperature Max. (Tmax) | 200 °C | |
| Limiting Speed (Limiting Spe) | 6,200 1/min | |
| Reference Speed (Nϑr) | 3,550 1/min | |
| Maximum Recess Radius (Ra Max) | 2 mm | |
| Maximum Diameter Of Housing Shoulder (Da) | 129 mm | |
| Limiting Value Of Fa/Fr For The Applicability Of Diff. Values Of Factors X And Y (E) | 0.22 | |
| Dynamic Axial Load Factor (Y1) | 3.14 | |
| Bore Diameter Outer Ring (D1) | 126.8 mm | |
| Raceway Diameter Of The Inner Ring (D2) | 94.9 mm | |
| Maximum Diameter Of Shaft Shoulder (Da Max) | 94 mm | |
| Minimum Chamfer Dimension (Rmin) | 2 mm | |
| Static Axial Load Factor (Y0) | 3.07 | |
| Dynamic Axial Load Factor (Y2) | 4.67 | |
| Minimum Cavity Width Of The Sleeve (Ba Min) | 12 mm | |
| Minimum Cavity Diameter Of The Sleeve (Db Min) | 85 mm | |
| Fatigue Load Limit, Radial (Cur) | 34,500 N |
