Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications13 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | 11210 | |
| Bore diameter | d | 50 mm |
| Outside diameter | D | 90 mm |
| Width | B | 58 mm |
| Basic dynamic load rating | C | 22.9 kN |
| Basic static load rating | C0 | 8.1 kN |
| Fatigue load limit | Pu | 0.52 kN |
| Reference speed | nref | 7700 r/min |
| Limiting speed | nG | 8700 r/min |
| Mass | ≈m | 0.85 kg |
| Cage | TVH — Solid cage made of glass-fiber reinforced polyamide PA66 | |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 120 °C |
Product characteristics1 parameter
| Parameter | Symbol | Value |
|---|---|---|
| Cage | TVH | Solid cage made of glass-fiber reinforced polyamide PA66 |

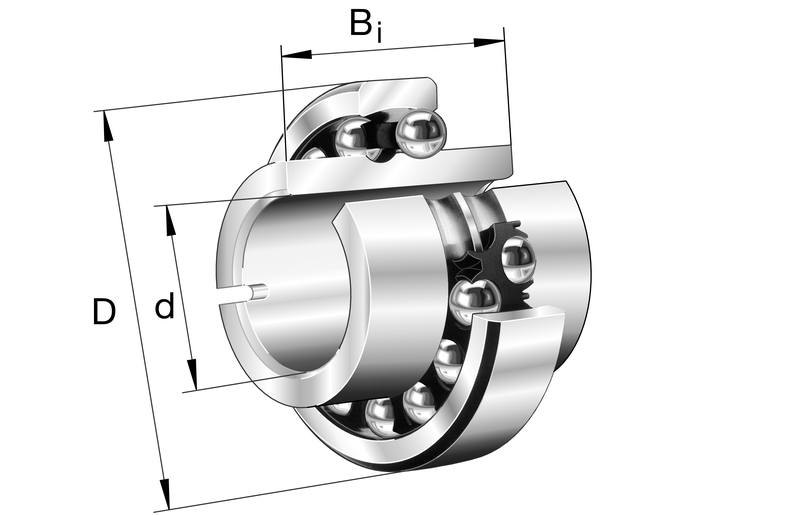

Main Dimensions & Performance Data11 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 50 mm1.969 in |
| Outside diameter | D | 90 mm3.543 in |
| Total width | B | 58 mm2.283 in |
| Width, outer ring | BC | 20 mm0.787 in |
| Width, inner ring | Bi | 58 mm2.283 in |
| Basic dynamic load rating, radial | Cr | 22,900 N5,148.381 lbf |
| Basic static load rating, radial | C0r | 8,100 N1,821.043 lbf |
| Fatigue load limit, radial | Cur | 520 N116.906 lbf |
| Limiting speed | nG | 8,700 1/min |
| Reference speed | nϑr | 7,700 1/min |
| Mass | ≈m | 0.85 kg1.874 lbs |
Mounting dimensions2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Maximum diameter of housing shoulder | Da max | 83 mm3.268 in |
| Maximaler Hohlkehlradius | ra max | 1 mm0.039 in |
Dimensions5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum chamfer dimension | rmin | 1.1 mm0.043 in |
| Shoulder diameter outer ring | D1 | 77.13 mm3.037 in |
| Shoulder diameter inner ring | d1 | 62.7 mm2.469 in |
| Width retaining slot | b | 7 mm0.276 in |
| Hight retaining slot | t | 9 mm0.354 in |
Temperature range2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating temperature min. | Tmin | -30 °C-22 °F |
| Operating temperature max. | Tmax | 120 °C248 °F |
Calculation factors4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y | e | 0.2 |
| Dynamic axial load factor | Y1 | 3.15 |
| Dynamic axial load factor | Y2 | 4.87 |
| Static axial load factor | Y0 | 3.3 |
Capabilities & suitability8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Radial load capacity | Yes | |
| Axial load capacity in one direction | Yes | |
| Axial load capacity in both directions | Yes | |
| Suitable for grease lubrication | Yes | |
| Suitable for oil lubrication | Yes | |
| Unsealed design | Yes | |
| Staticangularerrorandmisalignment | Yes | |
| Dynamicangularerrorandmisalignment | Yes |
Manufacturer Identity10 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 366337 | |
| Brand | FAG | |
| Base Type | 11210 | |
| Old Designation | ["11210TV"] | |
| X Life Marking | n.r. | |
| SAP material number | 0167001800000 | |
| Base product | 2305080602 | |
| Bearing X designation | 11210-TVH | |
| Mounting Manager ID | 11210-TVH | |
| Grease application ID | 11210-TVH |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Self-aligning ball bearing 112..-TVH, plastic cage | |
| Short Description | Self-aligning ball bearing |
Technical Data23 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 50 mm | |
| Outside Diameter (D) | 90 mm | |
| Width (B) | 58 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 22,900 N | |
| Basic Static Load Rating, Radial (C0R) | 8,100 N | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Limiting Speed (Ng) | 8,700 1/min | |
| Operating Temperature Max. (Tmax) | 120 °C | |
| Reference Speed (Nϑr) | 7,700 1/min | |
| Width, Inner Ring (Bi) | 58 mm | |
| Width Retaining Slot (B) | 7 mm | |
| Fatigue Load Limit, Radial (Cur) | 520 N | |
| Limiting Value Of Fa/Fr For The Applicability Of Diff. Values Of Factors X And Y (E) | 0.2 | |
| Shoulder Diameter Inner Ring (D1) | 62.7 mm | |
| Dynamic Axial Load Factor (Y1) | 3.15 | |
| Maximum Diameter Of Housing Shoulder (Da Max) | 83 mm | |
| Minimum Chamfer Dimension (Rmin) | 1.1 mm | |
| Maximum Fillet Radius (Ra Max) | 1 mm | |
| Shoulder Diameter Outer Ring (D1) | 77.13 mm | |
| Width, Outer Ring (Bc) | 20 mm | |
| Dynamic Axial Load Factor (Y2) | 4.87 | |
| Static Axial Load Factor (Y0) | 3.3 | |
| Hight Retaining Slot (T) | 9 mm |
