SKF
↗

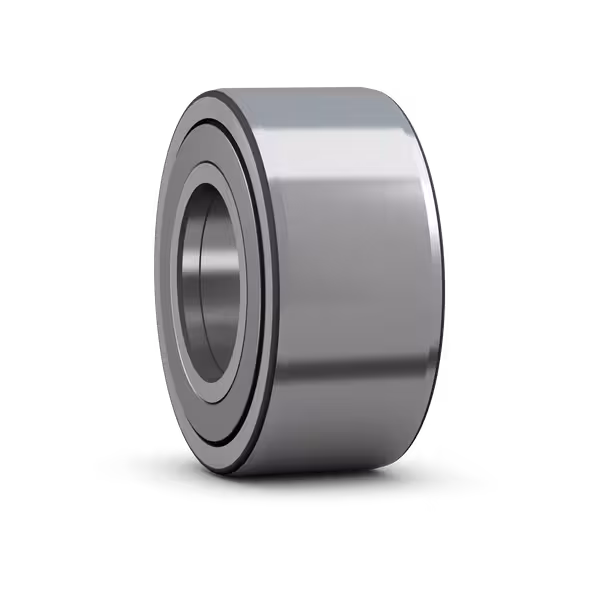

NATR 10 PP
Support rollers (yoke-type track rollers) with flange rings, integral sealing and relubrication feature · 41 parameters
- Bore d
- 10 mm
- Outside D
- 30 mm
- Dynamic C
- 6.82 kN
- Static C0
- 6.4 kN
- Limit speed
- 4500 r/min
Product category
49 PRODUCTS
Support rollers (yoke-type track rollers) with flange rings, integral sealing and relubrication feature
Compare support rollers (yoke-type track rollers) with flange rings, integral sealing and relubrication feature across the manufacturers currently loaded, then refine by designation and boundary dimensions.
Customer bearing search
Find a bearing model
Use a designation or exact metric dimensions. Advanced filters are available below.
Product taxonomy
Other bearing categories
Category counts include all currently loaded manufacturers. Brand counts are shown after entering a category.
View all categories →Guides, tables & tools
Browse all resources →Search a model number or a technical question. Product filters below apply to product records; the resource library has its own task and equipment filters.
Continue to product results ↓SKF↗
NATR 10 PPX
Support rollers (yoke-type track rollers) with flange rings, integral sealing and relubrication feature · 42 parameters
- Bore d
- 10 mm
- Outside D
- 30 mm
- Dynamic C
- 6.82 kN
- Static C0
- 6.4 kN
- Limit speed
- 4500 r/min
SKF↗
NATR 12 PP
Support rollers (yoke-type track rollers) with flange rings, integral sealing and relubrication feature · 41 parameters
- Bore d
- 12 mm
- Outside D
- 32 mm
- Dynamic C
- 7.04 kN
- Static C0
- 6.8 kN
- Limit speed
- 4300 r/min
SKF↗
NATR 12 PPX
Support rollers (yoke-type track rollers) with flange rings, integral sealing and relubrication feature · 42 parameters
- Bore d
- 12 mm
- Outside D
- 32 mm
- Dynamic C
- 7.04 kN
- Static C0
- 6.8 kN
- Limit speed
- 4300 r/min
SKF↗
NATR 15 PP
Support rollers (yoke-type track rollers) with flange rings, integral sealing and relubrication feature · 41 parameters
- Bore d
- 15 mm
- Outside D
- 35 mm
- Dynamic C
- 9.52 kN
- Static C0
- 11.2 kN
- Limit speed
- 3600 r/min
SKF↗
NATR 15 PPX
Support rollers (yoke-type track rollers) with flange rings, integral sealing and relubrication feature · 42 parameters
- Bore d
- 15 mm
- Outside D
- 35 mm
- Dynamic C
- 9.52 kN
- Static C0
- 11.2 kN
- Limit speed
- 3600 r/min
SKF↗
NATR 17 PP
Support rollers (yoke-type track rollers) with flange rings, integral sealing and relubrication feature · 41 parameters
- Bore d
- 17 mm
- Outside D
- 40 mm
- Dynamic C
- 12.5 kN
- Static C0
- 15 kN
- Limit speed
- 3200 r/min
SKF↗
NATR 17 PPX
Support rollers (yoke-type track rollers) with flange rings, integral sealing and relubrication feature · 42 parameters
- Bore d
- 17 mm
- Outside D
- 40 mm
- Dynamic C
- 12.5 kN
- Static C0
- 15 kN
- Limit speed
- 3200 r/min
SKF↗
NATR 20 PP
Support rollers (yoke-type track rollers) with flange rings, integral sealing and relubrication feature · 41 parameters
- Bore d
- 20 mm
- Outside D
- 47 mm
- Dynamic C
- 16.8 kN
- Static C0
- 23.2 kN
- Limit speed
- 2800 r/min
SKF↗
NATR 20 PPXA
Support rollers (yoke-type track rollers) with flange rings, integral sealing and relubrication feature · 42 parameters
- Bore d
- 20 mm
- Outside D
- 47 mm
- Dynamic C
- 14.7 kN
- Static C0
- 24.5 kN
- Limit speed
- 3000 r/min
SKF↗
NATR 25 PP
Support rollers (yoke-type track rollers) with flange rings, integral sealing and relubrication feature · 41 parameters
- Bore d
- 25 mm
- Outside D
- 52 mm
- Dynamic C
- 17.6 kN
- Static C0
- 25 kN
- Limit speed
- 2400 r/min
SKF↗
NATR 25 PPX
Support rollers (yoke-type track rollers) with flange rings, integral sealing and relubrication feature · 42 parameters
- Bore d
- 25 mm
- Outside D
- 52 mm
- Dynamic C
- 17.6 kN
- Static C0
- 25 kN
- Limit speed
- 2400 r/min
SKF↗
NATR 30 PP
Support rollers (yoke-type track rollers) with flange rings, integral sealing and relubrication feature · 41 parameters
- Bore d
- 30 mm
- Outside D
- 62 mm
- Dynamic C
- 22 kN
- Static C0
- 32.5 kN
- Limit speed
- 1800 r/min
SKF↗
NATR 30 PPX
Support rollers (yoke-type track rollers) with flange rings, integral sealing and relubrication feature · 42 parameters
- Bore d
- 30 mm
- Outside D
- 62 mm
- Dynamic C
- 22 kN
- Static C0
- 32.5 kN
- Limit speed
- 1800 r/min
SKF↗
NATR 35 PP
Support rollers (yoke-type track rollers) with flange rings, integral sealing and relubrication feature · 41 parameters
- Bore d
- 35 mm
- Outside D
- 72 mm
- Dynamic C
- 25.5 kN
- Static C0
- 41.5 kN
- Limit speed
- 1700 r/min
SKF↗
NATR 35 PPXA
Support rollers (yoke-type track rollers) with flange rings, integral sealing and relubrication feature · 42 parameters
- Bore d
- 35 mm
- Outside D
- 72 mm
- Dynamic C
- 24.6 kN
- Static C0
- 43 kN
- Limit speed
- 1600 r/min
SKF↗
NATR 40 PP
Support rollers (yoke-type track rollers) with flange rings, integral sealing and relubrication feature · 41 parameters
- Bore d
- 40 mm
- Outside D
- 80 mm
- Dynamic C
- 29.7 kN
- Static C0
- 53 kN
- Limit speed
- 1500 r/min
SKF↗
NATR 40 PPXA
Support rollers (yoke-type track rollers) with flange rings, integral sealing and relubrication feature · 42 parameters
- Bore d
- 40 mm
- Outside D
- 80 mm
- Dynamic C
- 31.9 kN
- Static C0
- 57 kN
- Limit speed
- 1500 r/min
SKF↗
NATR 50 PP
Support rollers (yoke-type track rollers) with flange rings, integral sealing and relubrication feature · 41 parameters
- Bore d
- 50 mm
- Outside D
- 90 mm
- Dynamic C
- 29.2 kN
- Static C0
- 53 kN
- Limit speed
- 1200 r/min
SKF↗
NATR 5 PP
Support rollers (yoke-type track rollers) with flange rings, integral sealing and relubrication feature · 41 parameters
- Bore d
- 5 mm
- Outside D
- 16 mm
- Dynamic C
- 2.86 kN
- Static C0
- 3 kN
- Limit speed
- 6000 r/min
SKF↗
NATR 5 PPX
Support rollers (yoke-type track rollers) with flange rings, integral sealing and relubrication feature · 42 parameters
- Bore d
- 5 mm
- Outside D
- 16 mm
- Dynamic C
- 2.86 kN
- Static C0
- 3 kN
- Limit speed
- 6000 r/min
SKF↗
NATR 6 PP
Support rollers (yoke-type track rollers) with flange rings, integral sealing and relubrication feature · 41 parameters
- Bore d
- 6 mm
- Outside D
- 19 mm
- Dynamic C
- 3.3 kN
- Static C0
- 3.8 kN
- Limit speed
- 5600 r/min
SKF↗
NATR 6 PPX
Support rollers (yoke-type track rollers) with flange rings, integral sealing and relubrication feature · 42 parameters
- Bore d
- 6 mm
- Outside D
- 19 mm
- Dynamic C
- 3.3 kN
- Static C0
- 3.8 kN
- Limit speed
- 5600 r/min
SKF↗
NATR 8 PP
Support rollers (yoke-type track rollers) with flange rings, integral sealing and relubrication feature · 41 parameters
- Bore d
- 8 mm
- Outside D
- 24 mm
- Dynamic C
- 4.57 kN
- Static C0
- 5.1 kN
- Limit speed
- 5000 r/min
