SKF
↗

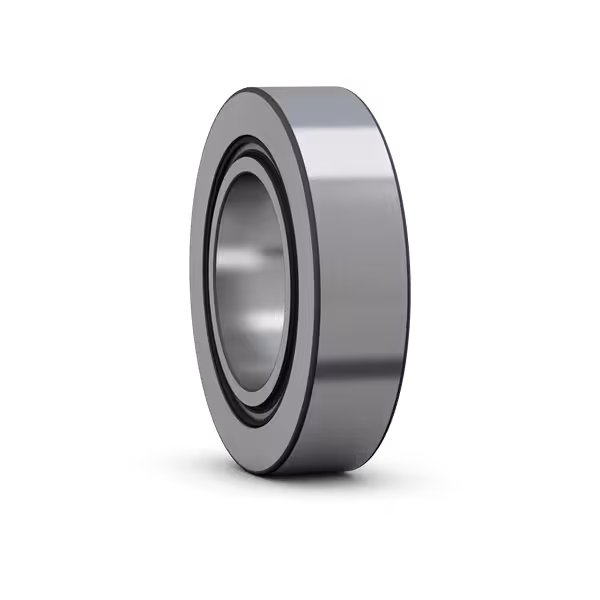

NA 2200.2RS
Support roller (yoke-type track roller), without flange rings, with integral sealing · 44 parameters
- Bore d
- 10 mm
- Outside D
- 30 mm
- Dynamic C
- 6.6 kN
- Static C0
- 7.5 kN
- Limit speed
- 6300 r/min
Product category
22 PRODUCTS
Support roller (yoke-type track roller), without flange rings, with integral sealing
Compare support roller (yoke-type track roller), without flange rings, with integral sealing across the manufacturers currently loaded, then refine by designation and boundary dimensions.
Customer bearing search
Find a bearing model
Use a designation or exact metric dimensions. Advanced filters are available below.
Product taxonomy
Other bearing categories
Category counts include all currently loaded manufacturers. Brand counts are shown after entering a category.
View all categories →Guides, tables & tools
Browse all resources →Search a model number or a technical question. Product filters below apply to product records; the resource library has its own task and equipment filters.
Continue to product results ↓SKF↗
NA 2200.2RSX
Support roller (yoke-type track roller), without flange rings, with integral sealing · 44 parameters
- Bore d
- 10 mm
- Outside D
- 30 mm
- Dynamic C
- 6.6 kN
- Static C0
- 7.5 kN
- Limit speed
- 6300 r/min
SKF↗
NA 2201.2RS
Support roller (yoke-type track roller), without flange rings, with integral sealing · 44 parameters
- Bore d
- 12 mm
- Outside D
- 32 mm
- Dynamic C
- 7.04 kN
- Static C0
- 8.5 kN
- Limit speed
- 6000 r/min
SKF↗
NA 2201.2RSX
Support roller (yoke-type track roller), without flange rings, with integral sealing · 44 parameters
- Bore d
- 12 mm
- Outside D
- 32 mm
- Dynamic C
- 7.04 kN
- Static C0
- 8.5 kN
- Limit speed
- 6000 r/min
SKF↗
NA 2202.2RS
Support roller (yoke-type track roller), without flange rings, with integral sealing · 44 parameters
- Bore d
- 15 mm
- Outside D
- 35 mm
- Dynamic C
- 7.48 kN
- Static C0
- 9.3 kN
- Limit speed
- 5000 r/min
SKF↗
NA 2202.2RSX
Support roller (yoke-type track roller), without flange rings, with integral sealing · 44 parameters
- Bore d
- 15 mm
- Outside D
- 35 mm
- Dynamic C
- 7.48 kN
- Static C0
- 9.3 kN
- Limit speed
- 5000 r/min
SKF↗
NA 2203.2RS
Support roller (yoke-type track roller), without flange rings, with integral sealing · 44 parameters
- Bore d
- 17 mm
- Outside D
- 40 mm
- Dynamic C
- 9.52 kN
- Static C0
- 13.2 kN
- Limit speed
- 4500 r/min
SKF↗
NA 2203.2RSX
Support roller (yoke-type track roller), without flange rings, with integral sealing · 44 parameters
- Bore d
- 17 mm
- Outside D
- 40 mm
- Dynamic C
- 9.52 kN
- Static C0
- 13.2 kN
- Limit speed
- 4500 r/min
SKF↗
NA 2204.2RS
Support roller (yoke-type track roller), without flange rings, with integral sealing · 44 parameters
- Bore d
- 20 mm
- Outside D
- 47 mm
- Dynamic C
- 16.1 kN
- Static C0
- 18 kN
- Limit speed
- 4000 r/min
SKF↗
NA 2204.2RSX
Support roller (yoke-type track roller), without flange rings, with integral sealing · 44 parameters
- Bore d
- 20 mm
- Outside D
- 47 mm
- Dynamic C
- 16.1 kN
- Static C0
- 18 kN
- Limit speed
- 4000 r/min
SKF↗
NA 2205.2RS
Support roller (yoke-type track roller), without flange rings, with integral sealing · 44 parameters
- Bore d
- 25 mm
- Outside D
- 52 mm
- Dynamic C
- 16.8 kN
- Static C0
- 20 kN
- Limit speed
- 3400 r/min
SKF↗
NA 2205.2RSX
Support roller (yoke-type track roller), without flange rings, with integral sealing · 44 parameters
- Bore d
- 25 mm
- Outside D
- 52 mm
- Dynamic C
- 16.8 kN
- Static C0
- 20 kN
- Limit speed
- 3400 r/min
SKF↗
NA 2206.2RS
Support roller (yoke-type track roller), without flange rings, with integral sealing · 44 parameters
- Bore d
- 30 mm
- Outside D
- 62 mm
- Dynamic C
- 17.9 kN
- Static C0
- 25.5 kN
- Limit speed
- 2800 r/min
SKF↗
NA 2206.2RSX
Support roller (yoke-type track roller), without flange rings, with integral sealing · 44 parameters
- Bore d
- 30 mm
- Outside D
- 62 mm
- Dynamic C
- 17.9 kN
- Static C0
- 25.5 kN
- Limit speed
- 2800 r/min
SKF↗
NA 2207.2RS
Support roller (yoke-type track roller), without flange rings, with integral sealing · 44 parameters
- Bore d
- 35 mm
- Outside D
- 72 mm
- Dynamic C
- 22.4 kN
- Static C0
- 35.5 kN
- Limit speed
- 2200 r/min
SKF↗
NA 2208.2RS
Support roller (yoke-type track roller), without flange rings, with integral sealing · 44 parameters
- Bore d
- 40 mm
- Outside D
- 80 mm
- Dynamic C
- 27.5 kN
- Static C0
- 40.5 kN
- Limit speed
- 1900 r/min
SKF↗
NA 2208.2RSX
Support roller (yoke-type track roller), without flange rings, with integral sealing · 44 parameters
- Bore d
- 40 mm
- Outside D
- 80 mm
- Dynamic C
- 27.5 kN
- Static C0
- 40.5 kN
- Limit speed
- 1900 r/min
SKF↗
NA 2210.2RS
Support roller (yoke-type track roller), without flange rings, with integral sealing · 44 parameters
- Bore d
- 50 mm
- Outside D
- 90 mm
- Dynamic C
- 28.1 kN
- Static C0
- 43 kN
- Limit speed
- 1600 r/min
SKF↗
NA 22/6.2RS
Support roller (yoke-type track roller), without flange rings, with integral sealing · 44 parameters
- Bore d
- 6 mm
- Outside D
- 19 mm
- Dynamic C
- 4.02 kN
- Static C0
- 3.65 kN
- Limit speed
- 7000 r/min
SKF↗
NA 22/6.2RSX
Support roller (yoke-type track roller), without flange rings, with integral sealing · 44 parameters
- Bore d
- 6 mm
- Outside D
- 19 mm
- Dynamic C
- 4.02 kN
- Static C0
- 3.65 kN
- Limit speed
- 7000 r/min
SKF↗
NA 22/8.2RS
Support roller (yoke-type track roller), without flange rings, with integral sealing · 44 parameters
- Bore d
- 8 mm
- Outside D
- 24 mm
- Dynamic C
- 4.68 kN
- Static C0
- 4.55 kN
- Limit speed
- 6700 r/min
SKF↗
NA 22/8.2RSX
Support roller (yoke-type track roller), without flange rings, with integral sealing · 44 parameters
- Bore d
- 8 mm
- Outside D
- 24 mm
- Dynamic C
- 4.68 kN
- Static C0
- 4.55 kN
- Limit speed
- 6700 r/min
