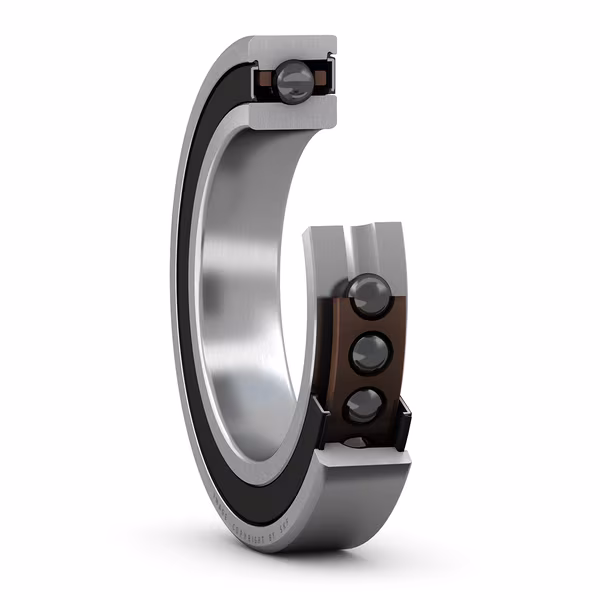

SKF
↗
S7001 CE/HCP4A
Super-precision, high-speed e design, single row angular contact ball bearing with seals · 69 parameters
- Bore d
- 12 mm
- Outside D
- 28 mm
- Width B
- 8 mm
- Dynamic C
- 3.19 kN
- Static C0
- 1.34 kN
Product category
27 PRODUCTS
Super-precision, high-speed e design, single row angular contact ball bearing with seals
Compare super-precision, high-speed e design, single row angular contact ball bearing with seals across the manufacturers currently loaded, then refine by designation and boundary dimensions.
Customer bearing search
Find a bearing model
Use a designation or exact metric dimensions. Advanced filters are available below.
Product taxonomy
Other bearing categories
Category counts include all currently loaded manufacturers. Brand counts are shown after entering a category.
View all categories →Guides, tables & tools
Browse all resources →Search a model number or a technical question. Product filters below apply to product records; the resource library has its own task and equipment filters.
Continue to product results ↓SKF↗
S7003 CE/HCP4A
Super-precision, high-speed e design, single row angular contact ball bearing with seals · 69 parameters
- Bore d
- 17 mm
- Outside D
- 35 mm
- Width B
- 10 mm
- Dynamic C
- 5.85 kN
- Static C0
- 2.55 kN
SKF↗
S7004 CE/HCP4A
Super-precision, high-speed e design, single row angular contact ball bearing with seals · 69 parameters
- Bore d
- 20 mm
- Outside D
- 42 mm
- Width B
- 12 mm
- Dynamic C
- 7.41 kN
- Static C0
- 3.35 kN
SKF↗
S7005 CE/HCP4A
Super-precision, high-speed e design, single row angular contact ball bearing with seals · 69 parameters
- Bore d
- 25 mm
- Outside D
- 47 mm
- Width B
- 12 mm
- Dynamic C
- 8.32 kN
- Static C0
- 4.15 kN
SKF↗
S7008 ACE/HCP4A
Super-precision, high-speed e design, single row angular contact ball bearing with seals · 75 parameters
- Bore d
- 40 mm
- Outside D
- 68 mm
- Width B
- 15 mm
- Dynamic C
- 11.7 kN
- Static C0
- 7.2 kN
SKF↗
S7010 ACE/HCP4A
Super-precision, high-speed e design, single row angular contact ball bearing with seals · 75 parameters
- Bore d
- 50 mm
- Outside D
- 80 mm
- Width B
- 16 mm
- Dynamic C
- 14.8 kN
- Static C0
- 10 kN
SKF
↗

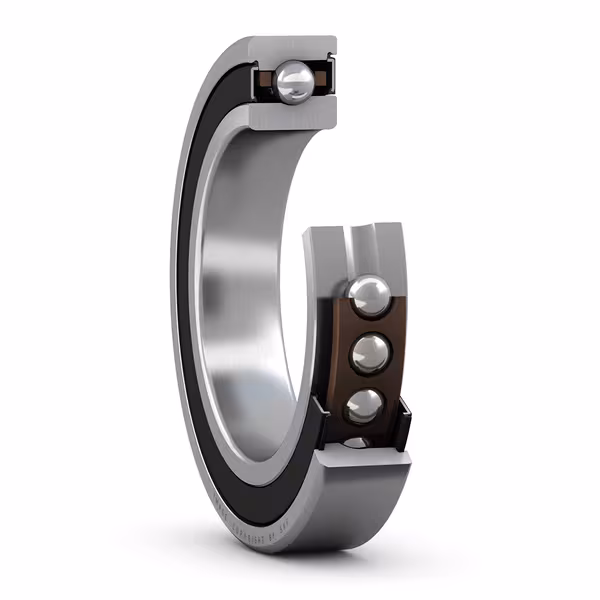

S7010 CE/P4A
Super-precision, high-speed e design, single row angular contact ball bearing with seals · 69 parameters
- Bore d
- 50 mm
- Outside D
- 80 mm
- Width B
- 16 mm
- Dynamic C
- 15.6 kN
- Static C0
- 10.6 kN
SKF↗
S7011 CE/P4A
Super-precision, high-speed e design, single row angular contact ball bearing with seals · 69 parameters
- Bore d
- 55 mm
- Outside D
- 90 mm
- Width B
- 18 mm
- Dynamic C
- 16.8 kN
- Static C0
- 12.2 kN
SKF↗
S7014 ACE/HCP4A
Super-precision, high-speed e design, single row angular contact ball bearing with seals · 75 parameters
- Bore d
- 70 mm
- Outside D
- 110 mm
- Width B
- 20 mm
- Dynamic C
- 22.5 kN
- Static C0
- 17.3 kN
SKF↗
S7020 ACE/HCP4A
Super-precision, high-speed e design, single row angular contact ball bearing with seals · 75 parameters
- Bore d
- 100 mm
- Outside D
- 150 mm
- Width B
- 24 mm
- Dynamic C
- 42.3 kN
- Static C0
- 38 kN
SKF↗
S7022 ACE/P4A
Super-precision, high-speed e design, single row angular contact ball bearing with seals · 75 parameters
- Bore d
- 110 mm
- Outside D
- 170 mm
- Width B
- 28 mm
- Dynamic C
- 44.9 kN
- Static C0
- 42.5 kN
SKF↗
S7022 CE/P4A
Super-precision, high-speed e design, single row angular contact ball bearing with seals · 69 parameters
- Bore d
- 110 mm
- Outside D
- 170 mm
- Width B
- 28 mm
- Dynamic C
- 47.5 kN
- Static C0
- 45 kN
SKF↗
S7024 ACE/P4A
Super-precision, high-speed e design, single row angular contact ball bearing with seals · 75 parameters
- Bore d
- 120 mm
- Outside D
- 180 mm
- Width B
- 28 mm
- Dynamic C
- 54 kN
- Static C0
- 52 kN
SKF↗
S7024 CE/P4A
Super-precision, high-speed e design, single row angular contact ball bearing with seals · 69 parameters
- Bore d
- 120 mm
- Outside D
- 180 mm
- Width B
- 28 mm
- Dynamic C
- 57.2 kN
- Static C0
- 55 kN
SKF
↗

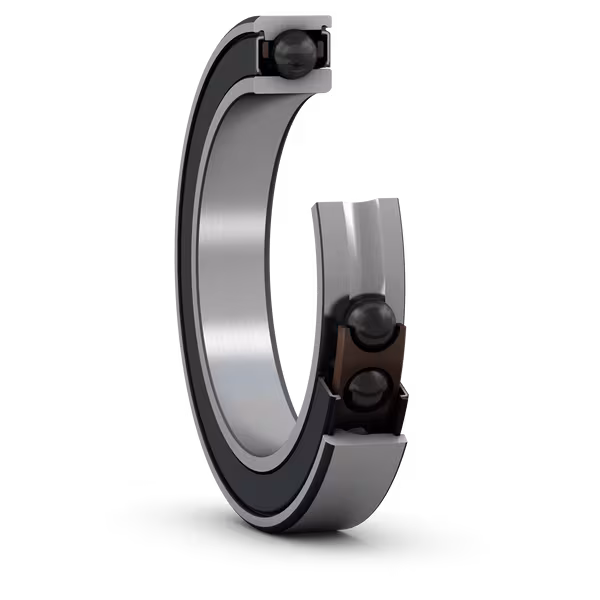

S71905 CE/HCP4A
Super-precision, high-speed e design, single row angular contact ball bearing with seals · 69 parameters
- Bore d
- 25 mm
- Outside D
- 42 mm
- Width B
- 9 mm
- Dynamic C
- 5.27 kN
- Static C0
- 2.8 kN
SKF
↗

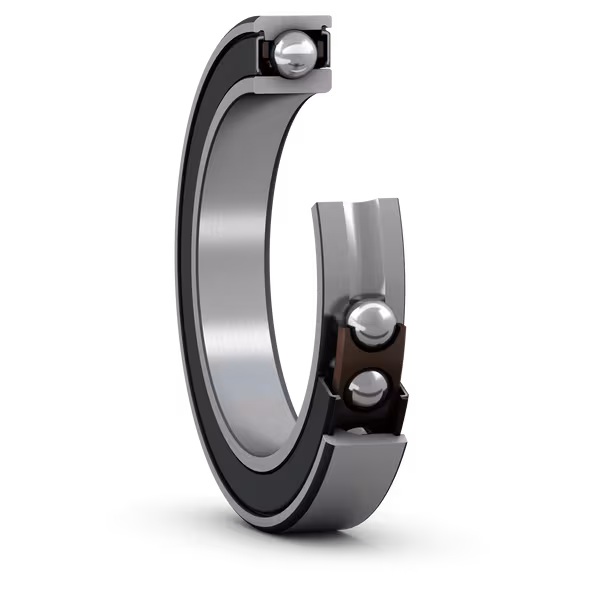

S71906 CE/P4A
Super-precision, high-speed e design, single row angular contact ball bearing with seals · 69 parameters
- Bore d
- 30 mm
- Outside D
- 47 mm
- Width B
- 9 mm
- Dynamic C
- 5.59 kN
- Static C0
- 3.25 kN
SKF↗
S71908 ACE/HCP4A
Super-precision, high-speed e design, single row angular contact ball bearing with seals · 75 parameters
- Bore d
- 40 mm
- Outside D
- 62 mm
- Width B
- 12 mm
- Dynamic C
- 9.36 kN
- Static C0
- 5.7 kN
SKF↗
S71909 ACE/HCP4A
Super-precision, high-speed e design, single row angular contact ball bearing with seals · 75 parameters
- Bore d
- 45 mm
- Outside D
- 68 mm
- Width B
- 12 mm
- Dynamic C
- 9.75 kN
- Static C0
- 6.4 kN
SKF↗
S71909 CE/P4A
Super-precision, high-speed e design, single row angular contact ball bearing with seals · 69 parameters
- Bore d
- 45 mm
- Outside D
- 68 mm
- Width B
- 12 mm
- Dynamic C
- 10.4 kN
- Static C0
- 6.8 kN
SKF↗
S71910 ACE/HCP4A
Super-precision, high-speed e design, single row angular contact ball bearing with seals · 75 parameters
- Bore d
- 50 mm
- Outside D
- 72 mm
- Width B
- 12 mm
- Dynamic C
- 12.1 kN
- Static C0
- 8.15 kN
SKF↗
S71910 CE/P4A
Super-precision, high-speed e design, single row angular contact ball bearing with seals · 69 parameters
- Bore d
- 50 mm
- Outside D
- 72 mm
- Width B
- 12 mm
- Dynamic C
- 12.7 kN
- Static C0
- 8.5 kN
SKF↗
S71911 ACE/HCP4A
Super-precision, high-speed e design, single row angular contact ball bearing with seals · 75 parameters
- Bore d
- 55 mm
- Outside D
- 80 mm
- Width B
- 13 mm
- Dynamic C
- 14.8 kN
- Static C0
- 10 kN
SKF↗
S71912 ACE/HCP4A
Super-precision, high-speed e design, single row angular contact ball bearing with seals · 75 parameters
- Bore d
- 60 mm
- Outside D
- 85 mm
- Width B
- 13 mm
- Dynamic C
- 15.3 kN
- Static C0
- 11 kN
SKF↗
S71913 CE/HCP4A
Super-precision, high-speed e design, single row angular contact ball bearing with seals · 69 parameters
- Bore d
- 65 mm
- Outside D
- 90 mm
- Width B
- 13 mm
- Dynamic C
- 16.5 kN
- Static C0
- 12.2 kN
