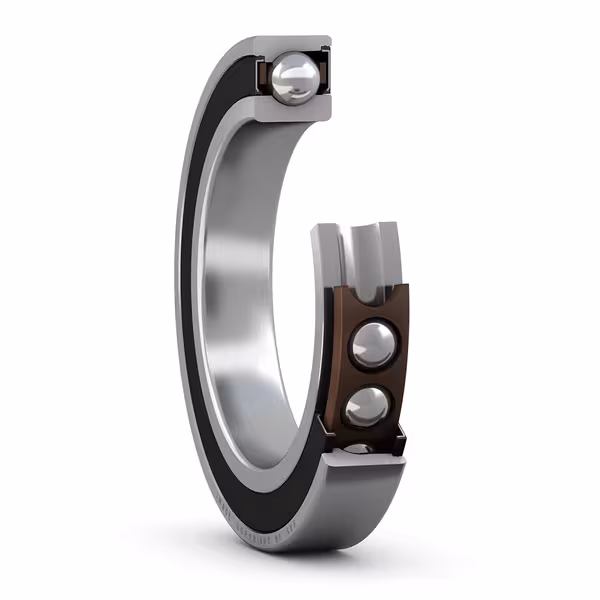

SKF
↗
S7003 CD/P4A
Super-precision, high-capacity, single row angular contact ball bearing with seals · 72 parameters
- Bore d
- 17 mm
- Outside D
- 35 mm
- Width B
- 10 mm
- Dynamic C
- 6.76 kN
- Static C0
- 3.25 kN
Product category
61 PRODUCTS
Super-precision, high-capacity, single row angular contact ball bearing with seals
Compare super-precision, high-capacity, single row angular contact ball bearing with seals across the manufacturers currently loaded, then refine by designation and boundary dimensions.
Customer bearing search
Find a bearing model
Use a designation or exact metric dimensions. Advanced filters are available below.
Product taxonomy
Other bearing categories
Category counts include all currently loaded manufacturers. Brand counts are shown after entering a category.
View all categories →Guides, tables & tools
Browse all resources →Search a model number or a technical question. Product filters below apply to product records; the resource library has its own task and equipment filters.
Continue to product results ↓SKF↗
S7004 ACD/P4A
Super-precision, high-capacity, single row angular contact ball bearing with seals · 78 parameters
- Bore d
- 20 mm
- Outside D
- 42 mm
- Width B
- 12 mm
- Dynamic C
- 8.32 kN
- Static C0
- 4.15 kN
SKF↗
S7008 CD/P4A
Super-precision, high-capacity, single row angular contact ball bearing with seals · 72 parameters
- Bore d
- 40 mm
- Outside D
- 68 mm
- Width B
- 15 mm
- Dynamic C
- 16.8 kN
- Static C0
- 11 kN
SKF↗
S7010 CD/P4A
Super-precision, high-capacity, single row angular contact ball bearing with seals · 72 parameters
- Bore d
- 50 mm
- Outside D
- 80 mm
- Width B
- 16 mm
- Dynamic C
- 29.6 kN
- Static C0
- 24 kN

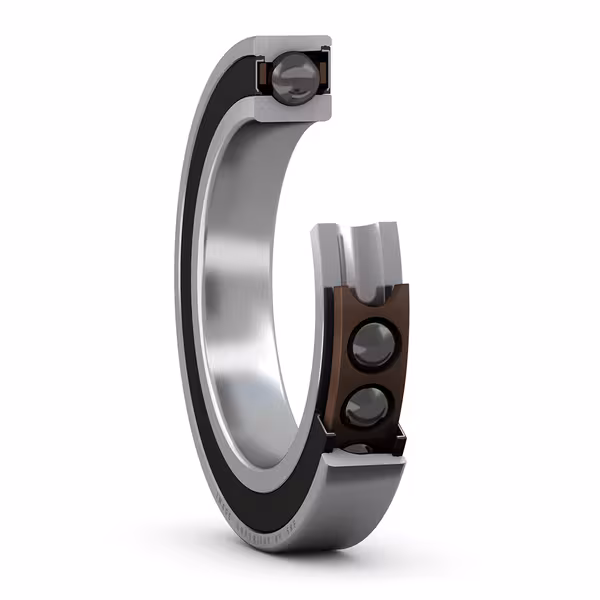

SKF
↗
S7011 ACD/HCP4A
Super-precision, high-capacity, single row angular contact ball bearing with seals · 78 parameters
- Bore d
- 55 mm
- Outside D
- 90 mm
- Width B
- 18 mm
- Dynamic C
- 37.1 kN
- Static C0
- 31 kN
SKF↗
S7011 ACD/P4A
Super-precision, high-capacity, single row angular contact ball bearing with seals · 78 parameters
- Bore d
- 55 mm
- Outside D
- 90 mm
- Width B
- 18 mm
- Dynamic C
- 37.1 kN
- Static C0
- 31 kN
SKF↗
S7011 CD/P4A
Super-precision, high-capacity, single row angular contact ball bearing with seals · 72 parameters
- Bore d
- 55 mm
- Outside D
- 90 mm
- Width B
- 18 mm
- Dynamic C
- 39.7 kN
- Static C0
- 32.5 kN
SKF↗
S7012 ACD/P4A
Super-precision, high-capacity, single row angular contact ball bearing with seals · 78 parameters
- Bore d
- 60 mm
- Outside D
- 95 mm
- Width B
- 18 mm
- Dynamic C
- 39 kN
- Static C0
- 33.5 kN
SKF↗
S7012 CD/HCP4A
Super-precision, high-capacity, single row angular contact ball bearing with seals · 72 parameters
- Bore d
- 60 mm
- Outside D
- 95 mm
- Width B
- 18 mm
- Dynamic C
- 40.3 kN
- Static C0
- 34.5 kN
SKF↗
S7014 ACD/P4A
Super-precision, high-capacity, single row angular contact ball bearing with seals · 78 parameters
- Bore d
- 70 mm
- Outside D
- 110 mm
- Width B
- 20 mm
- Dynamic C
- 48.8 kN
- Static C0
- 44 kN
SKF↗
S7014 CD/P4A
Super-precision, high-capacity, single row angular contact ball bearing with seals · 72 parameters
- Bore d
- 70 mm
- Outside D
- 110 mm
- Width B
- 20 mm
- Dynamic C
- 52 kN
- Static C0
- 45.5 kN
SKF↗
S7015 ACD/HCP4A
Super-precision, high-capacity, single row angular contact ball bearing with seals · 78 parameters
- Bore d
- 75 mm
- Outside D
- 115 mm
- Width B
- 20 mm
- Dynamic C
- 49.4 kN
- Static C0
- 46.5 kN
SKF↗
S7015 ACD/P4A
Super-precision, high-capacity, single row angular contact ball bearing with seals · 78 parameters
- Bore d
- 75 mm
- Outside D
- 115 mm
- Width B
- 20 mm
- Dynamic C
- 49.4 kN
- Static C0
- 46.5 kN
SKF↗
S7015 CD/P4A
Super-precision, high-capacity, single row angular contact ball bearing with seals · 72 parameters
- Bore d
- 75 mm
- Outside D
- 115 mm
- Width B
- 20 mm
- Dynamic C
- 52.7 kN
- Static C0
- 49 kN
SKF↗
S7016 CD/HCP4A
Super-precision, high-capacity, single row angular contact ball bearing with seals · 72 parameters
- Bore d
- 80 mm
- Outside D
- 125 mm
- Width B
- 22 mm
- Dynamic C
- 65 kN
- Static C0
- 61 kN
SKF↗
S7016 CD/P4A
Super-precision, high-capacity, single row angular contact ball bearing with seals · 72 parameters
- Bore d
- 80 mm
- Outside D
- 125 mm
- Width B
- 22 mm
- Dynamic C
- 65 kN
- Static C0
- 61 kN
SKF↗
S7018 CD/HCP4A
Super-precision, high-capacity, single row angular contact ball bearing with seals · 72 parameters
- Bore d
- 90 mm
- Outside D
- 140 mm
- Width B
- 24 mm
- Dynamic C
- 79.3 kN
- Static C0
- 76.5 kN
SKF↗
S7020 ACD/P4A
Super-precision, high-capacity, single row angular contact ball bearing with seals · 78 parameters
- Bore d
- 100 mm
- Outside D
- 150 mm
- Width B
- 24 mm
- Dynamic C
- 79.3 kN
- Static C0
- 80 kN
SKF↗
S7021 CD/HCP4A
Super-precision, high-capacity, single row angular contact ball bearing with seals · 72 parameters
- Bore d
- 105 mm
- Outside D
- 160 mm
- Width B
- 26 mm
- Dynamic C
- 95.6 kN
- Static C0
- 96.5 kN
SKF↗
S7022 ACD/P4A
Super-precision, high-capacity, single row angular contact ball bearing with seals · 78 parameters
- Bore d
- 110 mm
- Outside D
- 170 mm
- Width B
- 28 mm
- Dynamic C
- 104 kN
- Static C0
- 104 kN
SKF↗
S7022 CD/P4A
Super-precision, high-capacity, single row angular contact ball bearing with seals · 72 parameters
- Bore d
- 110 mm
- Outside D
- 170 mm
- Width B
- 28 mm
- Dynamic C
- 111 kN
- Static C0
- 108 kN
SKF↗
S7024 ACD/P4A
Super-precision, high-capacity, single row angular contact ball bearing with seals · 78 parameters
- Bore d
- 120 mm
- Outside D
- 180 mm
- Width B
- 28 mm
- Dynamic C
- 111 kN
- Static C0
- 116 kN
SKF↗
S7026 ACD/P4A
Super-precision, high-capacity, single row angular contact ball bearing with seals · 78 parameters
- Bore d
- 130 mm
- Outside D
- 200 mm
- Width B
- 33 mm
- Dynamic C
- 140 kN
- Static C0
- 150 kN
SKF↗
S7026 CD/P4A
Super-precision, high-capacity, single row angular contact ball bearing with seals · 72 parameters
- Bore d
- 130 mm
- Outside D
- 200 mm
- Width B
- 33 mm
- Dynamic C
- 148 kN
- Static C0
- 156 kN
