SKF
↗
BEAM 012055 C-2RSH
Super-precision double direction angular contact thrust ball bearing for screw drives, for bolt mounting · 52 parameters
- Bore d
- 12 mm
- Outside D
- 55 mm
- Dynamic C
- 19.6 kN
- Static C0
- 30 kN
Product category
17 PRODUCTS
Super-precision double direction angular contact thrust ball bearing for screw drives, for bolt mounting
Compare super-precision double direction angular contact thrust ball bearing for screw drives, for bolt mounting across the manufacturers currently loaded, then refine by designation and boundary dimensions.
Customer bearing search
Find a bearing model
Use a designation or exact metric dimensions. Advanced filters are available below.
Product taxonomy
Other bearing categories
Category counts include all currently loaded manufacturers. Brand counts are shown after entering a category.
View all categories →Guides, tables & tools
Browse all resources →Search a model number or a technical question. Product filters below apply to product records; the resource library has its own task and equipment filters.
Continue to product results ↓SKF↗
BEAM 015060 C-2RSH
Super-precision double direction angular contact thrust ball bearing for screw drives, for bolt mounting · 52 parameters
- Bore d
- 15 mm
- Outside D
- 60 mm
- Dynamic C
- 20.4 kN
- Static C0
- 33.5 kN
SKF↗
BEAM 017062 C-2RSH
Super-precision double direction angular contact thrust ball bearing for screw drives, for bolt mounting · 52 parameters
- Bore d
- 17 mm
- Outside D
- 62 mm
- Dynamic C
- 21.2 kN
- Static C0
- 37.5 kN
SKF↗
BEAM 020068 C-2RSH
Super-precision double direction angular contact thrust ball bearing for screw drives, for bolt mounting · 52 parameters
- Bore d
- 20 mm
- Outside D
- 68 mm
- Dynamic C
- 27.5 kN
- Static C0
- 51 kN
SKF↗
BEAM 020068 C-2RSH/PE
Super-precision double direction angular contact thrust ball bearing for screw drives, for bolt mounting · 17 parameters
SKF
↗

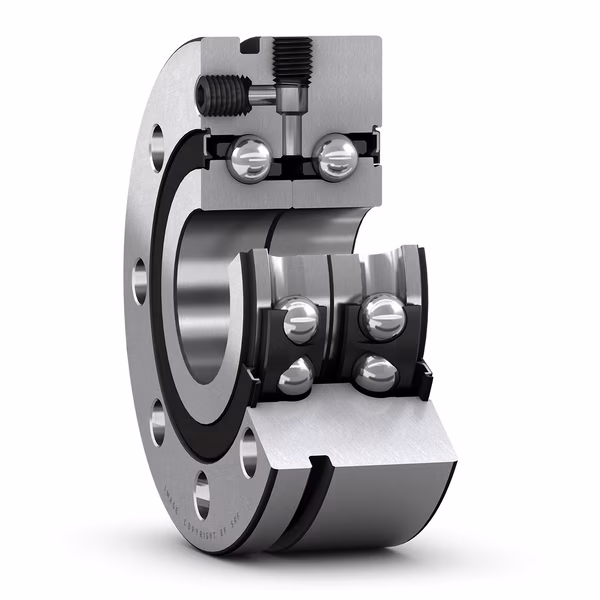

BEAM 020068 C-2RSL
Super-precision double direction angular contact thrust ball bearing for screw drives, for bolt mounting · 52 parameters
- Bore d
- 20 mm
- Outside D
- 68 mm
- Dynamic C
- 27.5 kN
- Static C0
- 51 kN
SKF↗
BEAM 025075 C-2RSH
Super-precision double direction angular contact thrust ball bearing for screw drives, for bolt mounting · 52 parameters
- Bore d
- 25 mm
- Outside D
- 75 mm
- Dynamic C
- 30 kN
- Static C0
- 60 kN
SKF↗
BEAM 025075 C-2RSH/PE
Super-precision double direction angular contact thrust ball bearing for screw drives, for bolt mounting · 17 parameters
SKF↗
BEAM 030080 C-2RSH
Super-precision double direction angular contact thrust ball bearing for screw drives, for bolt mounting · 52 parameters
- Bore d
- 30 mm
- Outside D
- 80 mm
- Dynamic C
- 31 kN
- Static C0
- 69.5 kN
SKF↗
BEAM 030100 C-2RSH
Super-precision double direction angular contact thrust ball bearing for screw drives, for bolt mounting · 53 parameters
- Bore d
- 30 mm
- Outside D
- 100 mm
- Dynamic C
- 64 kN
- Static C0
- 118 kN
SKF↗
BEAM 035090 C-2RSH
Super-precision double direction angular contact thrust ball bearing for screw drives, for bolt mounting · 52 parameters
- Bore d
- 35 mm
- Outside D
- 90 mm
- Dynamic C
- 47.5 kN
- Static C0
- 98 kN
SKF↗
BEAM 040100 C-2RSH
Super-precision double direction angular contact thrust ball bearing for screw drives, for bolt mounting · 52 parameters
- Bore d
- 40 mm
- Outside D
- 100 mm
- Dynamic C
- 51 kN
- Static C0
- 114 kN
SKF↗
BEAM 040115 C-2RSH
Super-precision double direction angular contact thrust ball bearing for screw drives, for bolt mounting · 53 parameters
- Bore d
- 40 mm
- Outside D
- 115 mm
- Dynamic C
- 80 kN
- Static C0
- 176 kN
SKF↗
BEAM 050115 C-2RSH
Super-precision double direction angular contact thrust ball bearing for screw drives, for bolt mounting · 52 parameters
- Bore d
- 50 mm
- Outside D
- 115 mm
- Dynamic C
- 56 kN
- Static C0
- 146 kN
SKF↗
BEAM 050140 C-2RSH
Super-precision double direction angular contact thrust ball bearing for screw drives, for bolt mounting · 53 parameters
- Bore d
- 50 mm
- Outside D
- 140 mm
- Dynamic C
- 122 kN
- Static C0
- 270 kN
SKF↗
BEAM 050140 C-2RSL
Super-precision double direction angular contact thrust ball bearing for screw drives, for bolt mounting · 53 parameters
- Bore d
- 50 mm
- Outside D
- 140 mm
- Dynamic C
- 122 kN
- Static C0
- 270 kN
SKF↗
BEAM 060145 C-2RSL
Super-precision double direction angular contact thrust ball bearing for screw drives, for bolt mounting · 53 parameters
- Bore d
- 60 mm
- Outside D
- 145 mm
- Dynamic C
- 90 kN
- Static C0
- 232 kN
