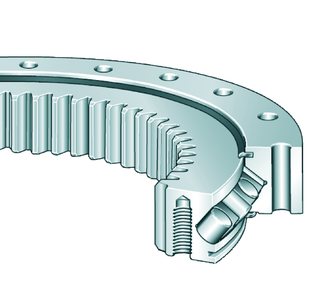

INA
↗
XI120288-N
Slewing ring, crossed roller bearing, internal gear teeth · Series XI120288 · 35 parameters
- Bore d
- 216 mm
- Outside D
- 340 mm
- Width B
- 34 mm
- Dynamic C
- 96 kN
- Static C0
- 153 kN
Product category
9 PRODUCTS
Slewing ring, crossed roller bearing, internal gear teeth
Compare slewing ring, crossed roller bearing, internal gear teeth across the manufacturers currently loaded, then refine by designation and boundary dimensions.
Customer bearing search
Find a bearing model
Use a designation or exact metric dimensions. Advanced filters are available below.
Product taxonomy
Other bearing categories
Category counts include all currently loaded manufacturers. Brand counts are shown after entering a category.
View all categories →Guides, tables & tools
Browse all resources →Search a model number or a technical question. Product filters below apply to product records; the resource library has its own task and equipment filters.
Continue to product results ↓INA↗
XI120288-N-ZT
Slewing ring, crossed roller bearing, internal gear teeth · Series XI120288 · 38 parameters
- Bore d
- 216 mm
- Outside D
- 340 mm
- Width B
- 34 mm
- Dynamic C
- 96 kN
- Static C0
- 153 kN
INA↗
XSI140414-N
Slewing ring, crossed roller bearing, internal gear teeth · Series XSI140414 · 46 parameters
- Bore d
- 325 mm
- Width B
- 44.5 mm
- Dynamic C
- 143 kN
- Static C0
- 265 kN
INA↗
XSI140544-N
Slewing ring, crossed roller bearing, internal gear teeth · Series XSI140544 · 43 parameters
- Bore d
- 444 mm
- Width B
- 44.5 mm
- Dynamic C
- 164 kN
- Static C0
- 345 kN
INA↗
XSI140644-N
Slewing ring, crossed roller bearing, internal gear teeth · Series XSI140644 · 43 parameters
- Bore d
- 546 mm
- Width B
- 44.5 mm
- Dynamic C
- 181 kN
- Static C0
- 415 kN
INA↗
XSI140744-N
Slewing ring, crossed roller bearing, internal gear teeth · Series XSI140744 · 43 parameters
- Bore d
- 648 mm
- Width B
- 44.5 mm
- Dynamic C
- 195 kN
- Static C0
- 475 kN
INA↗
XSI140844-N
Slewing ring, crossed roller bearing, internal gear teeth · Series XSI140844 · 43 parameters
- Bore d
- 736 mm
- Width B
- 44.5 mm
- Dynamic C
- 210 kN
- Static C0
- 540 kN
INA↗
XSI140944-N
Slewing ring, crossed roller bearing, internal gear teeth · Series XSI140944 · 43 parameters
- Bore d
- 840 mm
- Width B
- 44.5 mm
- Dynamic C
- 223 kN
- Static C0
- 610 kN
INA↗
XSI141094-N
Slewing ring, crossed roller bearing, internal gear teeth · Series XSI141094 · 43 parameters
- Bore d
- 984 mm
- Width B
- 44.5 mm
- Dynamic C
- 241 kN
- Static C0
- 710 kN
