Product category

Slewing ring, 4 point contact bearing, internal gear teeth

Compare slewing ring, 4 point contact bearing, internal gear teeth across the manufacturers currently loaded, then refine by designation and boundary dimensions.

53 PRODUCTS

Customer bearing search

Find a bearing model

Use a designation or exact metric dimensions. Advanced filters are available below.

Product taxonomy

Other bearing categories

Category counts include all currently loaded manufacturers. Brand counts are shown after entering a category.

View all categories →

Faceted search

Filter this category

ABEC equivalent (radial ball bearings)Understand the mapping and its limits →

Checkboxes, lists and numeric fields refresh the results as soon as they change.

Independent technical reference catalogue. Verify the current manufacturer data and complete product suffix before selection.

Guides, tables & tools

Browse all resources →

Search a model number or a technical question. Product filters below apply to product records; the resource library has its own task and equipment filters.

Continue to product results ↓

Search results

All Slewing ring, 4 point contact bearing, internal gear teeth

53 products

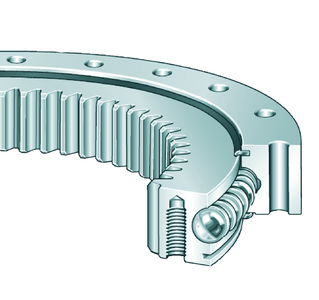

CompareINA

INA VI140326-V bearing

VI140326-V

Slewing ring, 4 point contact bearing, internal gear teeth · Series VI140326 · 50 parameters

Bore d: 250 mm
Outside D: 382 mm
Width B: 53 mm
Dynamic C: 74 kN
Static C0: 158 kN

CompareINA

INA VI160288-N bearing

VI160288-N

Slewing ring, 4 point contact bearing, internal gear teeth · Series VI160288 · 37 parameters

Bore d: 216 mm
Outside D: 340 mm
Width B: 34 mm
Dynamic C: 122 kN
Static C0: 260 kN

CompareINA

INA VI160288-N-ZT bearing

VI160288-N-ZT

Slewing ring, 4 point contact bearing, internal gear teeth · Series VI160288 · 41 parameters

Bore d: 216 mm
Outside D: 340 mm
Width B: 34 mm
Dynamic C: 122 kN
Static C0: 260 kN

CompareINA

INA VI160420-N bearing

VI160420-N

Slewing ring, 4 point contact bearing, internal gear teeth · Series VI160420 · 36 parameters

Bore d: 332 mm
Outside D: 486 mm
Width B: 34 mm
Dynamic C: 151 kN
Static C0: 390 kN

CompareINA

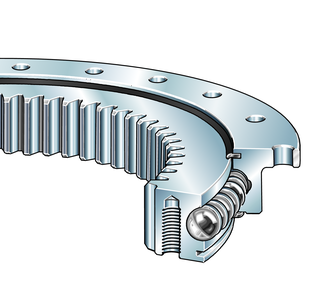

INA VLI200414-N bearing

VLI200414-N

Slewing ring, 4 point contact bearing, internal gear teeth · Series VLI200414 · 44 parameters

Bore d: 325 mm
Outside D: 518 mm
Width B: 44.5 mm
Dynamic C: 124 kN
Static C0: 110 kN

CompareINA

INA VLI200414-N-RL1 bearing

VLI200414-N-RL1

Slewing ring, 4 point contact bearing, internal gear teeth · Series VLI200414 · 44 parameters

Bore d: 325 mm
Outside D: 518 mm
Width B: 44.5 mm
Dynamic C: 124 kN
Static C0: 110 kN

CompareINA

INA VLI200414-N-RL2 bearing

VLI200414-N-RL2

Slewing ring, 4 point contact bearing, internal gear teeth · Series VLI200414 · 44 parameters

Bore d: 325 mm
Outside D: 518 mm
Width B: 44.5 mm
Dynamic C: 124 kN
Static C0: 110 kN

CompareINA

INA VLI200414-N-RL3 bearing

VLI200414-N-RL3

Slewing ring, 4 point contact bearing, internal gear teeth · Series VLI200414 · 44 parameters

Bore d: 325 mm
Outside D: 518 mm
Width B: 44.5 mm
Dynamic C: 124 kN
Static C0: 110 kN

CompareINA

INA VLI200414-N-VSP bearing

VLI200414-N-VSP

Slewing ring, 4 point contact bearing, internal gear teeth · Series VLI200414 · 44 parameters

Bore d: 325 mm
Outside D: 518 mm
Width B: 44.5 mm
Dynamic C: 124 kN
Static C0: 110 kN

CompareINA

INA VLI200414-N-VSP-ZT bearing

VLI200414-N-VSP-ZT

Slewing ring, 4 point contact bearing, internal gear teeth · Series VLI200414 · 44 parameters

Bore d: 325 mm
Width B: 44.5 mm
Dynamic C: 124 kN
Static C0: 110 kN

CompareINA

INA VLI200414-N-ZT bearing

VLI200414-N-ZT

Slewing ring, 4 point contact bearing, internal gear teeth · Series VLI200414 · 44 parameters

Bore d: 325 mm
Width B: 44.5 mm
Dynamic C: 124 kN
Static C0: 110 kN

CompareINA

INA VLI200414-N-ZT-RL1 bearing

VLI200414-N-ZT-RL1

Slewing ring, 4 point contact bearing, internal gear teeth · Series VLI200414 · 44 parameters

Bore d: 325 mm
Width B: 44.5 mm
Dynamic C: 124 kN
Static C0: 110 kN

CompareINA

INA VLI200544-N bearing

VLI200544-N

Slewing ring, 4 point contact bearing, internal gear teeth · Series VLI200544 · 40 parameters

Bore d: 444 mm
Outside D: 648 mm
Width B: 44.5 mm
Dynamic C: 138 kN
Static C0: 144 kN

CompareINA

INA VLI200544-N-RL1 bearing

VLI200544-N-RL1

Slewing ring, 4 point contact bearing, internal gear teeth · Series VLI200544 · 40 parameters

Bore d: 444 mm
Outside D: 648 mm
Width B: 44.5 mm
Dynamic C: 138 kN
Static C0: 144 kN

CompareINA

INA VLI200544-N-VSP bearing

VLI200544-N-VSP

Slewing ring, 4 point contact bearing, internal gear teeth · Series VLI200544 · 40 parameters

Bore d: 444 mm
Outside D: 648 mm
Width B: 44.5 mm
Dynamic C: 138 kN
Static C0: 144 kN

CompareINA

INA VLI200544-N-ZT bearing

VLI200544-N-ZT

Slewing ring, 4 point contact bearing, internal gear teeth · Series VLI200544 · 40 parameters

Bore d: 444 mm
Width B: 44.5 mm
Dynamic C: 138 kN
Static C0: 144 kN

CompareINA

INA VLI200644-N bearing

VLI200644-N

Slewing ring, 4 point contact bearing, internal gear teeth · Series VLI200644 · 40 parameters

Bore d: 546 mm
Outside D: 748 mm
Width B: 44.5 mm
Dynamic C: 147 kN
Static C0: 171 kN

CompareINA

INA VLI200644-N-RL1 bearing

VLI200644-N-RL1

Slewing ring, 4 point contact bearing, internal gear teeth · Series VLI200644 · 40 parameters

Bore d: 546 mm
Outside D: 748 mm
Width B: 44.5 mm
Dynamic C: 147 kN
Static C0: 171 kN

CompareINA

INA VLI200744-N bearing

VLI200744-N

Slewing ring, 4 point contact bearing, internal gear teeth · Series VLI200744 · 40 parameters

Bore d: 648 mm
Outside D: 848 mm
Width B: 44.5 mm
Dynamic C: 155 kN
Static C0: 197 kN

CompareINA

INA VLI200844-N bearing

VLI200844-N

Slewing ring, 4 point contact bearing, internal gear teeth · Series VLI200844 · 40 parameters

Bore d: 736 mm
Outside D: 948 mm
Width B: 44.5 mm
Dynamic C: 163 kN
Static C0: 224 kN

CompareINA

INA VLI200844-N-RR bearing

VLI200844-N-RR

Slewing ring, 4 point contact bearing, internal gear teeth · Series VLI200844 · 40 parameters

Bore d: 736 mm
Outside D: 948 mm
Width B: 44.5 mm
Dynamic C: 163 kN
Static C0: 224 kN

CompareINA

INA VLI200944-N bearing

VLI200944-N

Slewing ring, 4 point contact bearing, internal gear teeth · Series VLI200944 · 40 parameters

Bore d: 840 mm
Outside D: 1048 mm
Width B: 44.5 mm
Dynamic C: 170 kN
Static C0: 250 kN

CompareINA

INA VLI200944-N-RL1 bearing

VLI200944-N-RL1

Slewing ring, 4 point contact bearing, internal gear teeth · Series VLI200944 · 40 parameters

Bore d: 840 mm
Outside D: 1048 mm
Width B: 44.5 mm
Dynamic C: 170 kN
Static C0: 250 kN

CompareINA

INA VLI201094-N bearing

VLI201094-N

Slewing ring, 4 point contact bearing, internal gear teeth · Series VLI201094 · 40 parameters

Bore d: 984 mm
Outside D: 1198 mm
Width B: 44.5 mm
Dynamic C: 179 kN
Static C0: 290 kN
