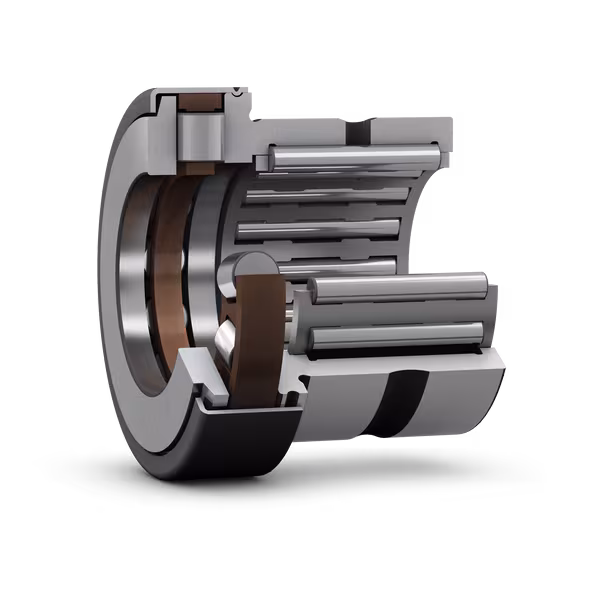

SKF
↗
NKXR 15 Z
Combined needle roller / cylindrical roller thrust bearing with a cover · 49 parameters
- Bore d
- 15 mm
- Outside D
- 24 mm
- Width B
- 23 mm
- Limit speed
- 8500 r/min
Product category
9 PRODUCTS
Combined needle roller / cylindrical roller thrust bearing with a cover
Compare combined needle roller / cylindrical roller thrust bearing with a cover across the manufacturers currently loaded, then refine by designation and boundary dimensions.
Customer bearing search
Find a bearing model
Use a designation or exact metric dimensions. Advanced filters are available below.
Product taxonomy
Other bearing categories
Category counts include all currently loaded manufacturers. Brand counts are shown after entering a category.
View all categories →Guides, tables & tools
Browse all resources →Search a model number or a technical question. Product filters below apply to product records; the resource library has its own task and equipment filters.
Continue to product results ↓SKF↗
NKXR 17 Z
Combined needle roller / cylindrical roller thrust bearing with a cover · 49 parameters
- Bore d
- 17 mm
- Outside D
- 26 mm
- Width B
- 25 mm
- Limit speed
- 8500 r/min
SKF↗
NKXR 20 Z
Combined needle roller / cylindrical roller thrust bearing with a cover · 49 parameters
- Bore d
- 20 mm
- Outside D
- 30 mm
- Width B
- 30 mm
- Limit speed
- 7500 r/min
SKF↗
NKXR 25 Z
Combined needle roller / cylindrical roller thrust bearing with a cover · 49 parameters
- Bore d
- 25 mm
- Outside D
- 37 mm
- Width B
- 30 mm
- Limit speed
- 6300 r/min
SKF↗
NKXR 30 Z
Combined needle roller / cylindrical roller thrust bearing with a cover · 49 parameters
- Bore d
- 30 mm
- Outside D
- 42 mm
- Width B
- 30 mm
- Limit speed
- 6000 r/min
SKF↗
NKXR 35 Z
Combined needle roller / cylindrical roller thrust bearing with a cover · 49 parameters
- Bore d
- 35 mm
- Outside D
- 47 mm
- Width B
- 30 mm
- Limit speed
- 5600 r/min
SKF↗
NKXR 40 Z
Combined needle roller / cylindrical roller thrust bearing with a cover · 49 parameters
- Bore d
- 40 mm
- Outside D
- 52 mm
- Width B
- 32 mm
- Limit speed
- 5000 r/min
SKF↗
NKXR 45 Z
Combined needle roller / cylindrical roller thrust bearing with a cover · 49 parameters
- Bore d
- 45 mm
- Outside D
- 58 mm
- Width B
- 32 mm
- Limit speed
- 4500 r/min
SKF↗
NKXR 50 Z
Combined needle roller / cylindrical roller thrust bearing with a cover · 49 parameters
- Bore d
- 50 mm
- Outside D
- 62 mm
- Width B
- 35 mm
- Limit speed
- 4300 r/min
