Search results

Matches for “7016”

99 products

Auto-compare this model by brand →

CompareNTN

7016

Angular contact ball bearings · 23 parameters

↗

Bore d: 80 mm
Outside D: 125 mm
Width B: 22 mm
Dynamic C: 59 kN
Static C0: 50.5 kN

CompareSKF

7016 ACBGA/HCP4A

Super-precision, high-speed b design, universally matchable single row angular contact ball bearing · 74 parameters

↗

Bore d: 80 mm
Outside D: 125 mm
Width B: 22 mm
Dynamic C: 25.1 kN
Static C0: 21.6 kN

CompareSKF

7016 ACBGA/P4A

Super-precision, high-speed b design, universally matchable single row angular contact ball bearing · 74 parameters

↗

Bore d: 80 mm
Outside D: 125 mm
Width B: 22 mm
Dynamic C: 25.1 kN
Static C0: 21.6 kN

CompareSKF

7016 ACDGA/HCP4A

Super-precision, high-capacity, universally matchable single row angular contact ball bearing · 74 parameters

↗

Bore d: 80 mm
Outside D: 125 mm
Width B: 22 mm
Dynamic C: 62.4 kN
Static C0: 58.5 kN

CompareSKF

7016 ACDGA/HCP4AL

Super-precision, high-capacity, universally matchable single row angular contact ball bearing suitable for direct oil-air lubrication · 78 parameters

↗

Bore d: 80 mm
Outside D: 125 mm
Width B: 22 mm
Dynamic C: 62.4 kN
Static C0: 58.5 kN

CompareSKF

7016 ACDGA/P4A

Super-precision, high-capacity, universally matchable single row angular contact ball bearing · 74 parameters

↗

Bore d: 80 mm
Outside D: 125 mm
Width B: 22 mm
Dynamic C: 62.4 kN
Static C0: 58.5 kN

CompareSKF

7016 ACDGA/P4AL

Super-precision, high-capacity, universally matchable single row angular contact ball bearing suitable for direct oil-air lubrication · 78 parameters

↗

Bore d: 80 mm
Outside D: 125 mm
Width B: 22 mm
Dynamic C: 62.4 kN
Static C0: 58.5 kN

CompareSKF

7016 ACDGATP/P4B

Super-precision, high-capacity, universally matchable single row angular contact ball bearing · 76 parameters

↗

Bore d: 80 mm
Outside D: 125 mm
Width B: 22 mm
Dynamic C: 62.4 kN
Static C0: 58.5 kN

CompareSKF

7016 ACDGB/HCP4A

Super-precision, high-capacity, universally matchable single row angular contact ball bearing · 74 parameters

↗

Bore d: 80 mm
Outside D: 125 mm
Width B: 22 mm
Dynamic C: 62.4 kN
Static C0: 58.5 kN

CompareSKF

7016 ACDGB/P4A

Super-precision, high-capacity, universally matchable single row angular contact ball bearing · 74 parameters

↗

Bore d: 80 mm
Outside D: 125 mm
Width B: 22 mm
Dynamic C: 62.4 kN
Static C0: 58.5 kN

CompareSKF

7016 ACDGC/P4A

Super-precision, high-capacity, universally matchable single row angular contact ball bearing · 74 parameters

↗

Bore d: 80 mm
Outside D: 125 mm
Width B: 22 mm
Dynamic C: 62.4 kN
Static C0: 58.5 kN

CompareSKF

7016 ACD/HCP4ADGA

Matched set of two super-precision, high-capacity, d design, single row angular contact ball bearings · 75 parameters

↗

Bore d: 80 mm
Outside D: 125 mm
Width B: 44 mm
Dynamic C: 101 kN
Static C0: 116 kN

CompareSKF

7016 ACD/HCP4AQBCA

Matched set of four super-precision, high-capacity, d design, single row angular contact ball bearings · 58 parameters

↗

Bore d: 80 mm
Outside D: 125 mm
Width B: 88 mm
Dynamic C: 165 kN
Static C0: 232 kN

CompareSKF

7016 ACD/P4A

Super-precision, high-capacity, single row angular contact ball bearing · 79 parameters

↗

Bore d: 80 mm
Outside D: 125 mm
Width B: 22 mm
Dynamic C: 62.4 kN
Static C0: 58.5 kN

CompareSKF

7016 ACD/P4ADBA

Matched set of two super-precision, high-capacity, d design, single row angular contact ball bearings · 64 parameters

↗

Bore d: 80 mm
Outside D: 125 mm
Width B: 44 mm
Dynamic C: 101 kN
Static C0: 116 kN

CompareSKF

7016 ACD/P4ADBB

Matched set of two super-precision, high-capacity, d design, single row angular contact ball bearings · 64 parameters

↗

Bore d: 80 mm
Outside D: 125 mm
Width B: 44 mm
Dynamic C: 101 kN
Static C0: 116 kN

CompareSKF

7016 ACD/P4ADBC

Matched set of two super-precision, high-capacity, d design, single row angular contact ball bearings · 64 parameters

↗

Bore d: 80 mm
Outside D: 125 mm
Width B: 44 mm
Dynamic C: 101 kN
Static C0: 116 kN

CompareSKF

7016 ACD/P4ADBD

Matched set of two super-precision, high-capacity, d design, single row angular contact ball bearings · 64 parameters

↗

Bore d: 80 mm
Outside D: 125 mm
Width B: 44 mm
Dynamic C: 101 kN
Static C0: 116 kN

CompareSKF

7016 ACD/P4ADGA

Matched set of two super-precision, high-capacity, d design, single row angular contact ball bearings · 75 parameters

↗

Bore d: 80 mm
Outside D: 125 mm
Width B: 44 mm
Dynamic C: 101 kN
Static C0: 116 kN

CompareSKF

7016 ACD/P4ADGB

Matched set of two super-precision, high-capacity, d design, single row angular contact ball bearings · 75 parameters

↗

Bore d: 80 mm
Outside D: 125 mm
Width B: 44 mm
Dynamic C: 101 kN
Static C0: 116 kN

CompareSKF

7016 ACD/P4ADGC

Matched set of two super-precision, high-capacity, d design, single row angular contact ball bearings · 75 parameters

↗

Bore d: 80 mm
Outside D: 125 mm
Width B: 44 mm
Dynamic C: 101 kN
Static C0: 116 kN

CompareSKF

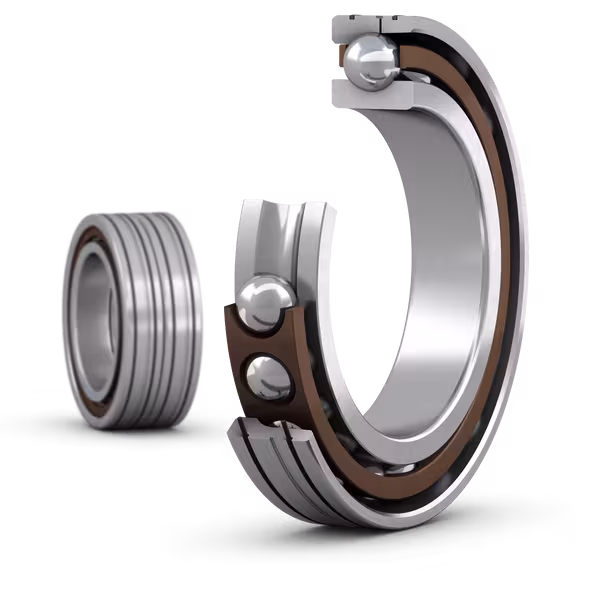

7016 ACD/P4ALDGA

Matched set of two super-precision, high-capacity, d design, single row angular contact ball bearings · 79 parameters

↗

Bore d: 80 mm
Outside D: 125 mm
Width B: 44 mm
Dynamic C: 101 kN
Static C0: 116 kN

CompareSKF

7016 ACD/P4AQBCA

Matched set of four super-precision, high-capacity, d design, single row angular contact ball bearings · 58 parameters

↗

Bore d: 80 mm
Outside D: 125 mm
Width B: 88 mm
Dynamic C: 165 kN
Static C0: 232 kN

CompareSKF

7016 ACD/P4AQBCB

Matched set of four super-precision, high-capacity, d design, single row angular contact ball bearings · 58 parameters

↗

Bore d: 80 mm
Outside D: 125 mm
Width B: 88 mm
Dynamic C: 165 kN
Static C0: 232 kN
