Customer bearing search

Find a bearing model

Use a designation or exact metric dimensions. Advanced filters are available below.

Guides, tables & tools

Browse all resources →

Search a model number or a technical question. Product filters below apply to product records; the resource library has its own task and equipment filters.

Continue to product results ↓
Search results

SKF products

49 products

Select up to 8 products below
SKFSKF 618/9 bearing

618/9

Deep groove ball bearings · 50 parameters

↗
Bore d
9 mm
Outside D
17 mm
Width B
4 mm
Dynamic C
0.871 kN
Static C0
0.34 kN
Limit speed
53000 r/min
SKFSKF 619/7 bearing

619/7

Deep groove ball bearings · 50 parameters

↗
Bore d
7 mm
Outside D
17 mm
Width B
5 mm
Dynamic C
1.06 kN
Static C0
0.375 kN
Limit speed
56000 r/min
SKFSKF 619/7-2Z bearing

619/7-2Z

Deep groove ball bearing with seals or shields · 52 parameters

↗
Bore d
7 mm
Outside D
17 mm
Width B
5 mm
Dynamic C
1.06 kN
Static C0
0.375 kN
Limit speed
45000 r/min
SKFSKF 628/9-2RS1 bearing

628/9-2RS1

Deep groove ball bearing with seals or shields · 50 parameters

↗
Bore d
9 mm
Outside D
17 mm
Width B
5 mm
Dynamic C
0.871 kN
Static C0
0.34 kN
Limit speed
24000 r/min
SKFSKF 628/9-2Z bearing

628/9-2Z

Deep groove ball bearing with seals or shields · 52 parameters

↗
Bore d
9 mm
Outside D
17 mm
Width B
5 mm
Dynamic C
0.871 kN
Static C0
0.34 kN
Limit speed
43000 r/min
SKFSKF 628/9-Z bearing

628/9-Z

Deep groove ball bearing with seals or shields · 52 parameters

↗
Bore d
9 mm
Outside D
17 mm
Width B
5 mm
Dynamic C
0.871 kN
Static C0
0.34 kN
Limit speed
53000 r/min
SKFSKF 706 ACEGA/P4A bearing

706 ACEGA/P4A

Super-precision, high-speed e design, universally matchable single row angular contact ball bearing · 28 parameters

↗
Bore d
6 mm
Outside D
17 mm
Width B
6 mm
Dynamic C
1.51 kN
Static C0
0.49 kN
SKFSKF 706 CDGA/HCP4A bearing

706 CDGA/HCP4A

Super-precision, high-capacity, universally matchable single row angular contact ball bearing · 63 parameters

↗
Bore d
6 mm
Outside D
17 mm
Width B
6 mm
Dynamic C
2.03 kN
Static C0
0.765 kN
SKFSKF 706 CDGA/P4A bearing

706 CDGA/P4A

Super-precision, high-capacity, universally matchable single row angular contact ball bearing · 63 parameters

↗
Bore d
6 mm
Outside D
17 mm
Width B
6 mm
Dynamic C
2.03 kN
Static C0
0.765 kN
SKFSKF 706 CDGB/HCP4A bearing

706 CDGB/HCP4A

Super-precision, high-capacity, universally matchable single row angular contact ball bearing · 63 parameters

↗
Bore d
6 mm
Outside D
17 mm
Width B
6 mm
Dynamic C
2.03 kN
Static C0
0.765 kN
SKFSKF 706 CDGC/P4A bearing

706 CDGC/P4A

Super-precision, high-capacity, universally matchable single row angular contact ball bearing · 63 parameters

↗
Bore d
6 mm
Outside D
17 mm
Width B
6 mm
Dynamic C
2.03 kN
Static C0
0.765 kN
SKFSKF 706 CD/HCP4A bearing

706 CD/HCP4A

Super-precision, high-capacity, single row angular contact ball bearing · 73 parameters

↗
Bore d
6 mm
Outside D
17 mm
Width B
6 mm
Dynamic C
2.03 kN
Static C0
0.765 kN
SKFSKF 706 CD/P4A bearing

706 CD/P4A

Super-precision, high-capacity, single row angular contact ball bearing · 73 parameters

↗
Bore d
6 mm
Outside D
17 mm
Width B
6 mm
Dynamic C
2.03 kN
Static C0
0.765 kN
SKFSKF 706 CD/P4ADBB bearing

706 CD/P4ADBB

Matched set of two super-precision, high-capacity, d design, single row angular contact ball bearings · 60 parameters

↗
Bore d
6 mm
Outside D
17 mm
Width B
12 mm
Dynamic C
3.25 kN
Static C0
1.53 kN
SKFSKF 706 CD/P4ADGA bearing

706 CD/P4ADGA

Matched set of two super-precision, high-capacity, d design, single row angular contact ball bearings · 64 parameters

↗
Bore d
6 mm
Outside D
17 mm
Width B
12 mm
Dynamic C
3.25 kN
Static C0
1.53 kN
SKFSKF 706 CEGA/HCP4A bearing

706 CEGA/HCP4A

Super-precision, high-speed e design, universally matchable single row angular contact ball bearing · 64 parameters

↗
Bore d
6 mm
Outside D
17 mm
Width B
6 mm
Dynamic C
1.56 kN
Static C0
0.5 kN
SKFSKF 706 CE/HCP4A bearing

706 CE/HCP4A

Super-precision, high-speed e design, single row angular contact ball bearing · 70 parameters

↗
Bore d
6 mm
Outside D
17 mm
Width B
6 mm
Dynamic C
1.56 kN
Static C0
0.5 kN

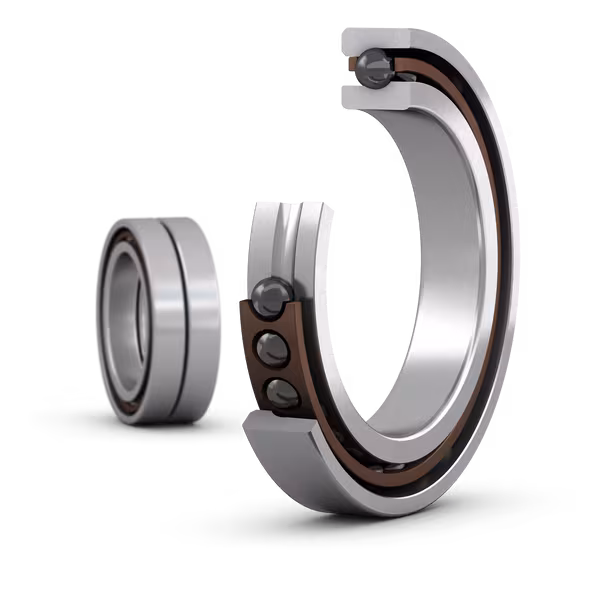

SKFSKF 706 CE/HCP4ADGA bearing

706 CE/HCP4ADGA

Matched set of two super-precision, high-speed e design, single row angular contact ball bearings · 64 parameters

↗
Bore d
6 mm
Outside D
17 mm
Width B
12 mm
Dynamic C
2.55 kN
Static C0
1 kN
SKFSKF BA 7 bearing

BA 7

Single direction thrust ball bearing · 38 parameters

↗
Bore d
7 mm
Outside D
17 mm
Dynamic C
2.51 kN
Static C0
2.9 kN
Limit speed
19000 r/min
SKFSKF IR 14X17X17 bearing

IR 14X17X17

Inner ring for needle roller bearings, ir series · 22 parameters

↗
Bore d
14 mm
Outside D
17 mm
Width B
17 mm
SKFSKF K 12X17X13 TN bearing

K 12X17X13 TN

Single row needle roller and cage assembly · 36 parameters

↗
Outside D
17 mm
Width B
13 mm
Dynamic C
9.13 kN
Static C0
10.4 kN
Limit speed
30000 r/min
SKFSKF NAO 6X17X10 TN bearing

NAO 6X17X10 TN

Single row needle roller bearing with machined rings, without flanges · 46 parameters

↗
Bore d
6 mm
Outside D
17 mm
Width B
10 mm
Dynamic C
4.57 kN
Static C0
5.7 kN
Limit speed
32000 r/min
SKFSKF NK 10/12 TN bearing

NK 10/12 TN

Single row needle roller bearing with machined rings, with flanges, without inner ring · 41 parameters

↗
Outside D
17 mm
Width B
12 mm
Dynamic C
4.57 kN
Static C0
5.7 kN
Limit speed
32000 r/min
SKFSKF NK 10/16 TN bearing

NK 10/16 TN

Single row needle roller bearing with machined rings, with flanges, without inner ring · 41 parameters

↗
Outside D
17 mm
Width B
16 mm
Dynamic C
5.94 kN
Static C0
8 kN
Limit speed
32000 r/min
