99,016 bearing records · search, filter and compare

info@bearingscope.com

Unified technical catalogue

Model Search

Search verified bearing designations and technical parameters across SKF, FAG, INA, TIMKEN, NSK, KOYO, IKO, NACHI and NTN.

CAT / 09 BRANDS

Customer bearing search

Find a bearing model

Use a designation or exact metric dimensions. Advanced filters are available below.

Designation Brand Category Inside dmm Outside Dmm Width Bmm

Faceted search

Refine results

ABEC equivalent (radial ball bearings)Understand the mapping and its limits →

Checkboxes, lists and numeric fields refresh the results as soon as they change.

Independent technical reference catalogue. Verify the current manufacturer data and complete product suffix before selection.

Guides, tables & tools

Browse all resources →

Search a model number or a technical question. Product filters below apply to product records; the resource library has its own task and equipment filters.

Continue to product results ↓

Search results

All loaded products

2744 products

CompareSKF

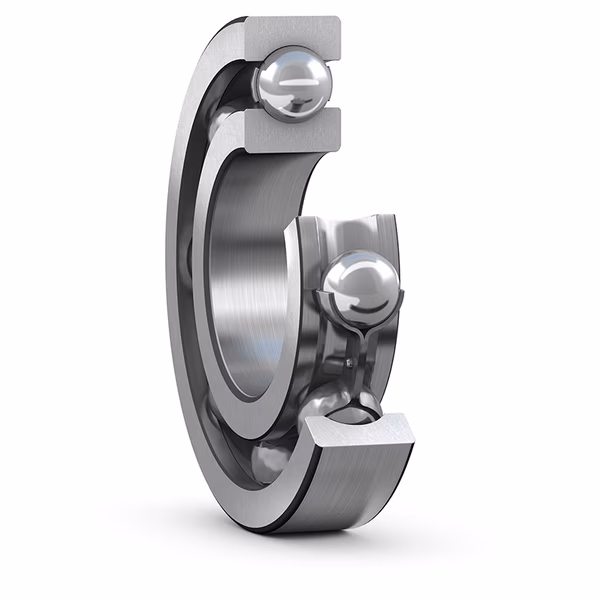

SKF 16002 bearing

16002

Deep groove ball bearings · 57 parameters

Bore d: 15 mm
Outside D: 32 mm
Width B: 8 mm
Dynamic C: 5.85 kN
Static C0: 2.85 kN
Limit speed: 32000 r/min

CompareSKF

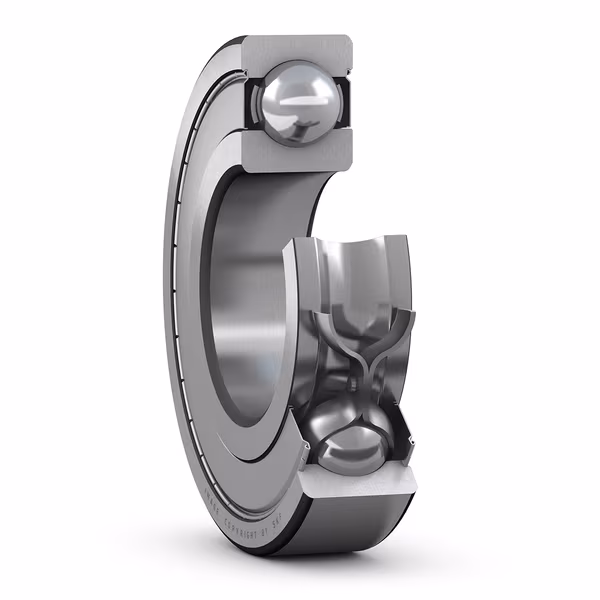

SKF 16002-2Z bearing

16002-2Z

Deep groove ball bearing with seals or shields · 59 parameters

Bore d: 15 mm
Outside D: 32 mm
Width B: 8 mm
Dynamic C: 5.85 kN
Static C0: 2.85 kN
Limit speed: 26000 r/min

CompareSKF

SKF 16003 bearing

16003

Deep groove ball bearings · 57 parameters

Bore d: 17 mm
Outside D: 35 mm
Width B: 8 mm
Dynamic C: 6.37 kN
Static C0: 3.25 kN
Limit speed: 28000 r/min

CompareSKF

SKF 16003-2Z bearing

16003-2Z

Deep groove ball bearing with seals or shields · 59 parameters

Bore d: 17 mm
Outside D: 35 mm
Width B: 8 mm
Dynamic C: 6.37 kN
Static C0: 3.25 kN
Limit speed: 22000 r/min

CompareSKF

SKF 16004 bearing

16004

Deep groove ball bearings · 57 parameters

Bore d: 20 mm
Outside D: 42 mm
Width B: 8 mm
Dynamic C: 7.28 kN
Static C0: 4.05 kN
Limit speed: 24000 r/min

CompareSKF

SKF 16005 bearing

16005

Deep groove ball bearings · 57 parameters

Bore d: 25 mm
Outside D: 47 mm
Width B: 8 mm
Dynamic C: 8.06 kN
Static C0: 4.75 kN
Limit speed: 20000 r/min

CompareSKF

SKF 16006 bearing

16006

Deep groove ball bearings · 53 parameters

Bore d: 30 mm
Outside D: 55 mm
Width B: 9 mm
Dynamic C: 11.9 kN
Static C0: 7.35 kN
Limit speed: 17000 r/min

CompareSKF

SKF 16007 bearing

16007

Deep groove ball bearings · 53 parameters

Bore d: 35 mm
Outside D: 62 mm
Width B: 9 mm
Dynamic C: 13 kN
Static C0: 8.15 kN
Limit speed: 15000 r/min

CompareSKF

SKF 16008 bearing

16008

Deep groove ball bearings · 53 parameters

Bore d: 40 mm
Outside D: 68 mm
Width B: 9 mm
Dynamic C: 13.8 kN
Static C0: 10.2 kN
Limit speed: 14000 r/min

CompareSKF

SKF 16009 bearing

16009

Deep groove ball bearings · 53 parameters

Bore d: 45 mm
Outside D: 75 mm
Width B: 10 mm
Dynamic C: 16.5 kN
Static C0: 10.8 kN
Limit speed: 12000 r/min

CompareSKF

SKF 16010 bearing

16010

Deep groove ball bearings · 53 parameters

Bore d: 50 mm
Outside D: 80 mm
Width B: 10 mm
Dynamic C: 16.8 kN
Static C0: 11.4 kN
Limit speed: 11000 r/min

CompareSKF

SKF 16011 bearing

16011

Deep groove ball bearings · 53 parameters

Bore d: 55 mm
Outside D: 90 mm
Width B: 11 mm
Dynamic C: 20.3 kN
Static C0: 14 kN
Limit speed: 10000 r/min

CompareSKF

SKF 16012 bearing

16012

Deep groove ball bearings · 53 parameters

Bore d: 60 mm
Outside D: 95 mm
Width B: 11 mm
Dynamic C: 20.8 kN
Static C0: 15 kN
Limit speed: 9500 r/min

CompareSKF

SKF 16013 bearing

16013

Deep groove ball bearings · 53 parameters

Bore d: 65 mm
Outside D: 100 mm
Width B: 11 mm
Dynamic C: 22.5 kN
Static C0: 19.6 kN
Limit speed: 9000 r/min

CompareSKF

SKF 16014 bearing

16014

Deep groove ball bearings · 53 parameters

Bore d: 70 mm
Outside D: 110 mm
Width B: 13 mm
Dynamic C: 29.1 kN
Static C0: 25 kN
Limit speed: 8000 r/min

CompareSKF

SKF 16015 bearing

16015

Deep groove ball bearings · 53 parameters

Bore d: 75 mm
Outside D: 115 mm
Width B: 13 mm
Dynamic C: 30.2 kN
Static C0: 27 kN
Limit speed: 7500 r/min

CompareSKF

SKF 16016 bearing

16016

Deep groove ball bearings · 53 parameters

Bore d: 80 mm
Outside D: 125 mm
Width B: 14 mm
Dynamic C: 35.1 kN
Static C0: 31.5 kN
Limit speed: 7000 r/min

CompareSKF

SKF 16017 bearing

16017

Deep groove ball bearings · 53 parameters

Bore d: 85 mm
Outside D: 130 mm
Width B: 14 mm
Dynamic C: 35.8 kN
Static C0: 33.5 kN
Limit speed: 6700 r/min

CompareSKF

SKF 16018 bearing

16018

Deep groove ball bearings · 53 parameters

Bore d: 90 mm
Outside D: 140 mm
Width B: 16 mm
Dynamic C: 43.6 kN
Static C0: 39 kN
Limit speed: 6300 r/min

CompareSKF

SKF 16019 bearing

16019

Deep groove ball bearings · 53 parameters

Bore d: 95 mm
Outside D: 145 mm
Width B: 16 mm
Dynamic C: 44.9 kN
Static C0: 41.5 kN
Limit speed: 6000 r/min

CompareSKF

SKF 16020 bearing

16020

Deep groove ball bearings · 53 parameters

Bore d: 100 mm
Outside D: 150 mm
Width B: 16 mm
Dynamic C: 46.2 kN
Static C0: 44 kN
Limit speed: 5600 r/min

CompareSKF

SKF 16021 bearing

16021

Deep groove ball bearings · 53 parameters

Bore d: 105 mm
Outside D: 160 mm
Width B: 18 mm
Dynamic C: 54 kN
Static C0: 51 kN
Limit speed: 5300 r/min

CompareSKF

SKF 16022 bearing

16022

Deep groove ball bearings · 53 parameters

Bore d: 110 mm
Outside D: 170 mm
Width B: 19 mm
Dynamic C: 60.5 kN
Static C0: 57 kN
Limit speed: 5000 r/min

CompareSKF

SKF 16024 bearing

16024

Deep groove ball bearings · 53 parameters

Bore d: 120 mm
Outside D: 180 mm
Width B: 19 mm
Dynamic C: 63.7 kN
Static C0: 64 kN
Limit speed: 4800 r/min
