Search results

Matches for “7005”

91 products

Auto-compare this model by brand →

CompareSKF

7005 CE/HCP4ADGA

Matched set of two super-precision, high-speed e design, single row angular contact ball bearings · 64 parameters

↗

Bore d: 25 mm
Outside D: 47 mm
Width B: 24 mm
Dynamic C: 13.5 kN
Static C0: 8.3 kN

CompareSKF

7005 CE/HCP4ADGB

Matched set of two super-precision, high-speed e design, single row angular contact ball bearings · 64 parameters

↗

Bore d: 25 mm
Outside D: 47 mm
Width B: 24 mm
Dynamic C: 13.5 kN
Static C0: 8.3 kN

CompareSKF

7005 CE/HCP4ADGC

Matched set of two super-precision, high-speed e design, single row angular contact ball bearings · 64 parameters

↗

Bore d: 25 mm
Outside D: 47 mm
Width B: 24 mm
Dynamic C: 13.5 kN
Static C0: 8.3 kN

CompareSKF

7005 CE/HCP4ADT

Matched set of two super-precision, high-speed e design, single row angular contact ball bearings · 60 parameters

↗

Bore d: 25 mm
Outside D: 47 mm
Width B: 24 mm
Dynamic C: 13.5 kN
Static C0: 8.3 kN

CompareSKF

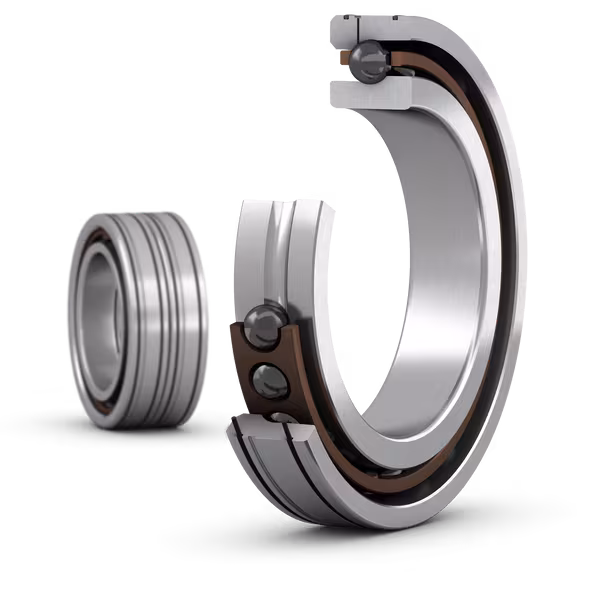

7005 CE/HCP4AL1DGA

Matched set of two super-precision, high-speed e design, single row angular contact ball bearings · 68 parameters

↗

Bore d: 25 mm
Outside D: 47 mm
Width B: 24 mm
Dynamic C: 13.5 kN
Static C0: 8.3 kN

CompareSKF

7005 CE/HCP4ALDBA

Matched set of two super-precision, high-speed e design, single row angular contact ball bearings · 64 parameters

↗

Bore d: 25 mm
Outside D: 47 mm
Width B: 24 mm
Dynamic C: 13.5 kN
Static C0: 8.3 kN

CompareSKF

7005 CE/P4A

Super-precision, high-speed e design, single row angular contact ball bearing · 70 parameters

↗

Bore d: 25 mm
Outside D: 47 mm
Width B: 12 mm
Dynamic C: 8.32 kN
Static C0: 4.15 kN

CompareSKF

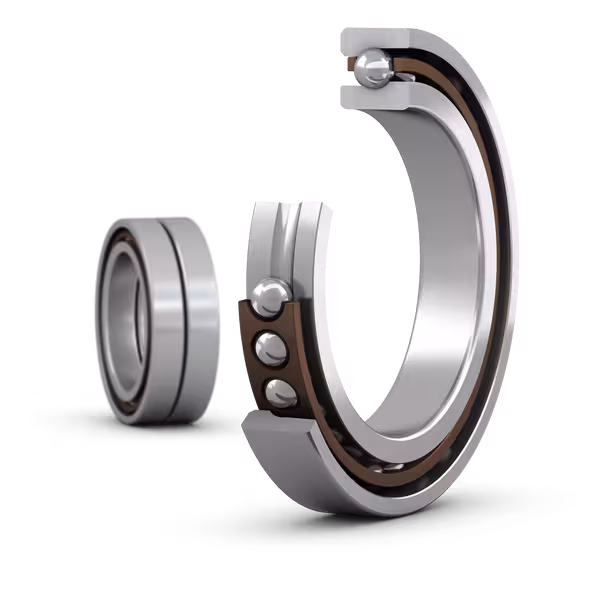

7005 CE/P4ADBA

Matched set of two super-precision, high-speed e design, single row angular contact ball bearings · 60 parameters

↗

Bore d: 25 mm
Outside D: 47 mm
Width B: 24 mm
Dynamic C: 13.5 kN
Static C0: 8.3 kN

CompareSKF

7005 CE/P4ADGA

Matched set of two super-precision, high-speed e design, single row angular contact ball bearings · 64 parameters

↗

Bore d: 25 mm
Outside D: 47 mm
Width B: 24 mm
Dynamic C: 13.5 kN
Static C0: 8.3 kN

CompareSKF

7005 CE/P4ADT

Matched set of two super-precision, high-speed e design, single row angular contact ball bearings · 60 parameters

↗

Bore d: 25 mm
Outside D: 47 mm
Width B: 24 mm
Dynamic C: 13.5 kN
Static C0: 8.3 kN

CompareKOYO

7005C FY

Angular contact ball bearings · 20 parameters

↗

Bore d: 25 mm
Outside D: 47 mm
Width B: 12 mm
Dynamic C: 15.4 kN
Static C0: 8 kN
Limit speed: 23000 r/min

CompareKOYO

7005DB FY

Angular contact ball bearings · 21 parameters

↗

Bore d: 25 mm
Outside D: 47 mm
Width B: 24 mm
Dynamic C: 22.9 kN
Static C0: 14.8 kN
Limit speed: 13000 r/min

CompareKOYO

7005DF FY

Angular contact ball bearings · 21 parameters

↗

Bore d: 25 mm
Outside D: 47 mm
Width B: 24 mm
Dynamic C: 22.9 kN
Static C0: 14.8 kN
Limit speed: 13000 r/min

CompareKOYO

7005DT FY

Angular contact ball bearings · 21 parameters

↗

Bore d: 25 mm
Outside D: 47 mm
Width B: 24 mm
Dynamic C: 22.9 kN
Static C0: 14.8 kN
Limit speed: 13000 r/min

CompareSKF

7005 FEGA/HCP4A

Super-precision, high-speed e design, universally matchable single row angular contact ball bearing · 64 parameters

↗

Bore d: 25 mm
Outside D: 47 mm
Width B: 12 mm
Dynamic C: 8.19 kN
Static C0: 4.05 kN

CompareSKF

7005 FE/HCP4ADGA

Matched set of two super-precision, high-speed e design, single row angular contact ball bearings · 64 parameters

↗

Bore d: 25 mm
Outside D: 47 mm
Width B: 24 mm
Dynamic C: 13.3 kN
Static C0: 8.15 kN

CompareSKF

7005 FE/HCP4ADT

Matched set of two super-precision, high-speed e design, single row angular contact ball bearings · 60 parameters

↗

Bore d: 25 mm
Outside D: 47 mm
Width B: 24 mm
Dynamic C: 13.3 kN
Static C0: 8.15 kN

CompareKOYO

7005 FY

Angular contact ball bearings · 20 parameters

↗

Bore d: 25 mm
Outside D: 47 mm
Width B: 12 mm
Dynamic C: 14.1 kN
Static C0: 7.4 kN
Limit speed: 17000 r/min

CompareSKF

7005/VA9D1

Super-precision universally matchable single row angular contact ball bearing for driven tools · 71 parameters

↗

Bore d: 25 mm
Outside D: 47 mm
Width B: 12 mm
Dynamic C: 9.23 kN
Static C0: 5 kN
