Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

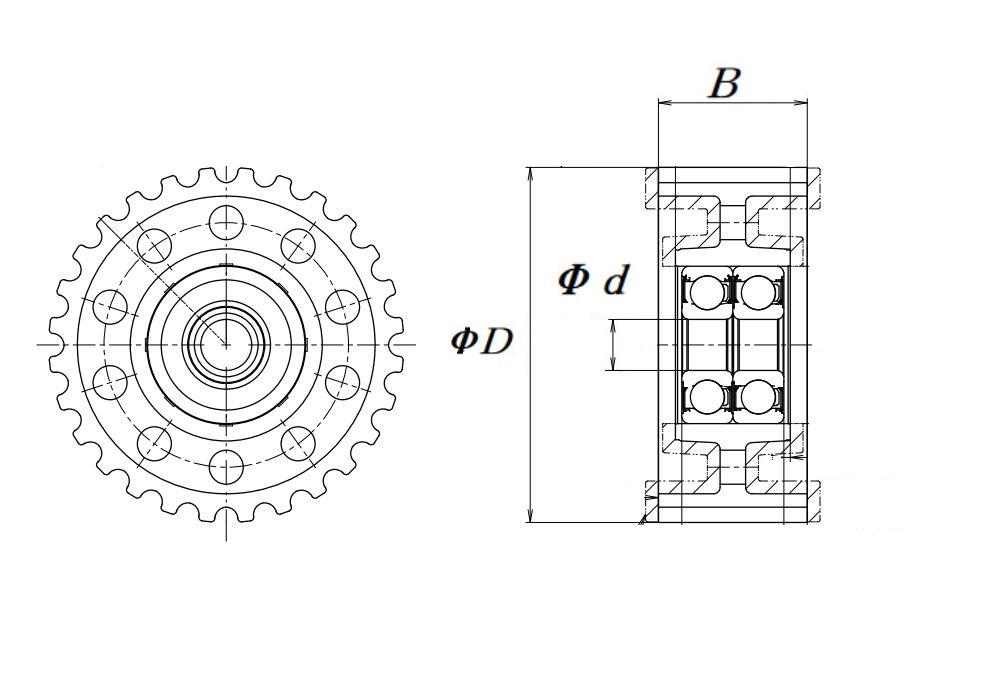

Core specifications7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Variant / construction | Tensioner bearings | |
| Bore diameter | d | 12 mm |
| Outside diameter | D | 75.022 mm |
| Width | B | 33 mm |
| Basic dynamic load rating | C | 14.9 kN |
| Basic static load rating | C0 | 8.35 kN |
| Mass | ≈m | 0.424 kg |
Manufacturer Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Brand | KOYO | |
| Official Class Key | 200-050-000 |
Classification2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Official Category Path | Automotive bearings - Tensioner bearings | |
| Official Classification 1 | Automotive bearings / Tensioner bearings |
Technical Data8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Stockno. | 77060 | |
| d | 12 mm | |
| D | 75.022 mm | |
| B | 33 mm | |
| Basic Load Ratings : Cr | 14.9 kN | |
| Basic Load Ratings : C0R | 8.35 kN | |
| Mass (Reference) | 0.424 kg | |
| Reference Part Number | トヨタ (TOYOTA) 13503-46010 |
