Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Variant / construction | Four-row cylindrical roller bearings | |
| Bore diameter | d | 260 mm |
| Outside diameter | D | 360 mm |
| Width | B | 230 mm |
| Basic dynamic load rating | C | 2160 kN |
| Basic static load rating | C0 | 4790 kN |
| Fatigue load limit | Pu | 515 kN |
| Mass | ≈m | 72.6 kg |
Manufacturer Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Brand | KOYO | |
| Official Class Key | 140-010-000 |
Classification2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Official Category Path | Rolling mill roll neck bearings - Four-row cylindrical roller bearings | |
| Official Classification 1 | Rolling mill roll neck bearings / Four-row cylindrical roller bearings |

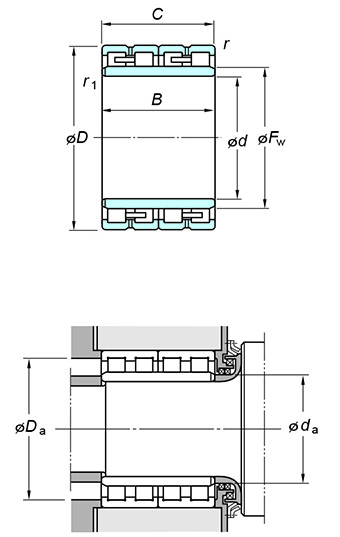

Technical Data15 parameters
| Parameter | Symbol | Value |
|---|---|---|
| d | 260 mm | |
| D | 360 mm | |
| B | 230 mm | |
| C | 230 mm | |
| Fw | 292 mm | |
| R(Min.) | 2.1 mm | |
| R1(Min.) | 2.1 mm | |
| Basic Load Ratings : Cr | 2160 kN | |
| Basic Load Ratings : C0R | 4790 kN | |
| Fatigue Load Limit : Cu | 515 kN | |
| Da(Min.) | 336 mm | |
| Da(Max.) | 348 mm | |
| Ra(Max.) | 2 mm | |
| Rb(Max.) | 2 mm | |
| Mass(Refer.) | 72.6 kg |
