Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width | B | 100 mm |
| Height | H | 38 mm |
| Mass | ≈m | 8.37 kg |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 1674826 | |
| Brand | INA | |
| Base Type | VUS85280 |
Product Identity1 parameter
| Parameter | Symbol | Value |
|---|---|---|
| Short Description | Adjusting gib |
Technical Data24 parameters
| Parameter | Symbol | Value |
|---|---|---|

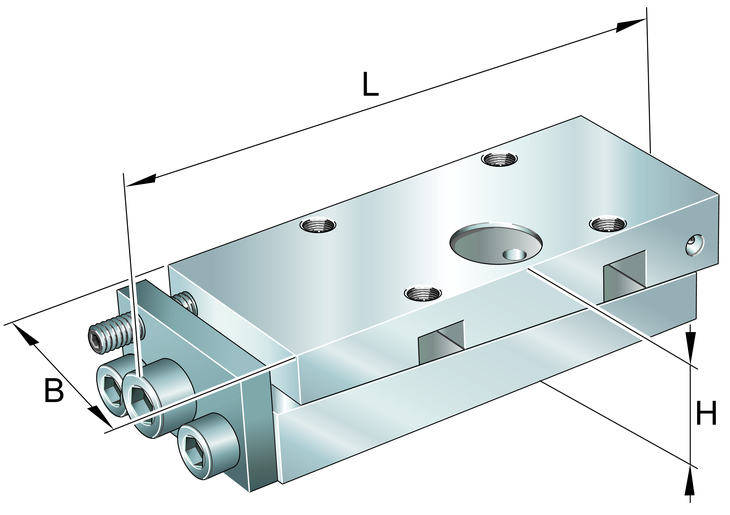

| Length Of Carriage (L) | 0.314 m | |
| Total Width (B) | 100 mm | |
| Height (H) | 38 mm | |
| Mounting Dimension (Jb) | 82.5 mm | |
| Core Hole (D2) | 12.5 mm | |
| Adjustment Screw Hexagon Socket (S1) | 12 mm | |
| Locking/Extraction Screw Hexagon Socket (S2) | 4 mm | |
| Max (Q1) | 10 mm | |
| Mounting Dimension (N4) | 10 mm | |
| Max (L2) | 300 mm | |
| Mounting Dimension (N3) | 8 mm | |
| Mounting Dimension Oil Connector (A3) | 41.25 mm | |
| Mounting Dimension (L1) | 280 mm | |
| Adjustment Per Screw Revolution (Adjustment P) | 0.075 mm | |
| Mounting Dimension (T5) | 6 mm | |
| Tightening Torque (Ma G3) | 83 Nm | |
| Lower Tolerance (Tol Jl) | 0.1 mm | |
| Upper Tolerance (Tol Jl) | 0.1 mm | |
| Lower Tolerance (Tol Jb) | 0.1 mm | |
| Upper Tolerance (Tol Jb) | 0.1 mm | |
| Adjustment Max (Δh) | 0.5 mm | |
| Tightening Torque (Ma G2) | 220 Nm | |
| Mounting Dimension (Jl) | 101.5 mm | |
| Tightening Torque (Ma K3) | 83 Nm |
