Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | VA140188 | |
| Bore diameter | d | 136 mm |
| Outside diameter | D | 259.36 mm |
| Width | B | 35 mm |
| Basic dynamic load rating | C | 84 kN |
| Basic static load rating | C0 | 270 kN |
| Mass | ≈m | 7.1 kg |
| Minimum operating temperature | Tmin | -25 °C |
| Maximum operating temperature | Tmax | 80 °C |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 398163 | |
| Brand | INA | |
| Base Type | VA140188 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Slewing ring, 4 point contact bearing, internal gear teeth | |

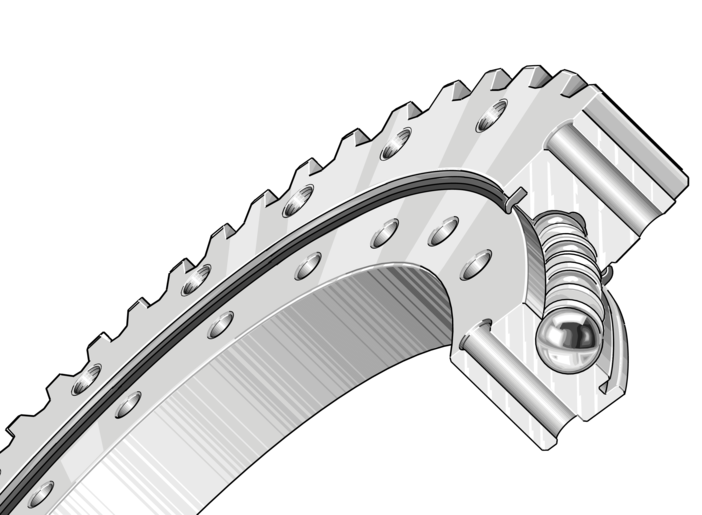

| Short Description | Slewing ring, 4 point contact bearing, external gear teeth |
Technical Data40 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D1) | 136 mm | |
| Outside Diameter (Da) | 259.36 mm | |
| Total Height (H) | 35 mm | |
| Basic Static Load Rating, Axial (C0A) | 670,000 N | |
| Number Of Teeth (Z) | 62 | |
| Profile Shift (Profile Shif) | 2 mm | |
| Height Of Individual Ring (H) | 30 mm | |
| Operating Temperature Min. (Tmin) | -25 °C | |
| Pitch Circle Diameter Gearing (D0) | 248 mm | |
| Modul Of Gearing (M) | 4 mm | |
| Basic Dynamic Load Rating, Axial (Ca) | 93,000 N | |
| Operating Temperature Max. (Tmax) | 80 °C | |
| Pitchcircle Diameter Fixing Holes Inner Ring (Li) | 154 mm | |
| Bore Diameter Lower Tolerance (Bore Diamete) | -0.5 mm | |
| Diameter Centring Outer Ring Lower Tolerance (Diameter Cen) | -0.07 mm | |
| Normal Axial Clearance Min. (Normal Axial) | 0.05 mm | |
| Max. Tooth Force Root Fatigue Strenght (At A Shock Factor Of 1,2) (Fz Norm) | 10,400 N | |
| Inner Diameter Outer Ring (Di) | 189 mm | |
| Normal Axial Clearance Max. (Normal Axial) | 0.2 mm | |
| Number Of Fixing Holes In Inner Ring (Ni) | 16 | |
| Outside Diameter Inner Ring (Da) | 187 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 84,000 N | |
| Thread Depth Oil Connector (Tg) | 20 mm | |
| Bore Diameter Upper Tolerance (Bore Diamete) | 0.5 mm | |
| Length Centering Outer Ring (T) | 4 mm | |
| Diameter Centring Inner Ring Lower Tolerance (Diameter Cen) | 0 mm | |
| Diameter Centring Outer Ring Upper Tolerance (Diameter Cen) | 0 mm | |
| Max. Tooth Force Against Tooth Fracture (At A Shock Factor Of 1,35) (Fz Max) | 15,300 N | |
| Width Gearing (B) | 26 mm | |
| Diameter Centring Inner Ring Upper Tolerance (Diameter Cen) | 0.2 mm | |
| Basic Static Load Rating, Radial (C0R) | 270,000 N | |
| Pitch Circle Diameter Fixing Holes (La) | 222 mm | |
| Max. Radial Load Screws (Frictional Contact) (Fr Zul) | 44,800 N | |
| Width Outer Ring (Ha) | 30 mm | |
| Normal Radial Clearance Min. (Normal Radia) | 0.03 mm | |
| Diameter Centring Outer Ring (Di Zt) | 238 mm | |
| Diameter Centring Inner Ring (Dizt) | 135 mm | |
| Normal Radial Clearance Max. (Normal Radia) | 0.1 mm | |
| Length Centering Inner Ring (T) | 10 mm | |
| Number Of Fixing Holes In Outer Ring (Na) | 16 |
