Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 18.5 mm |
| Width | B | 162 mm |
| Height | H | 60 mm |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 1802285 | |
| Brand | INA | |
| Base Type | UZN16260 |
Product Identity1 parameter
| Parameter | Symbol | Value |
|---|---|---|

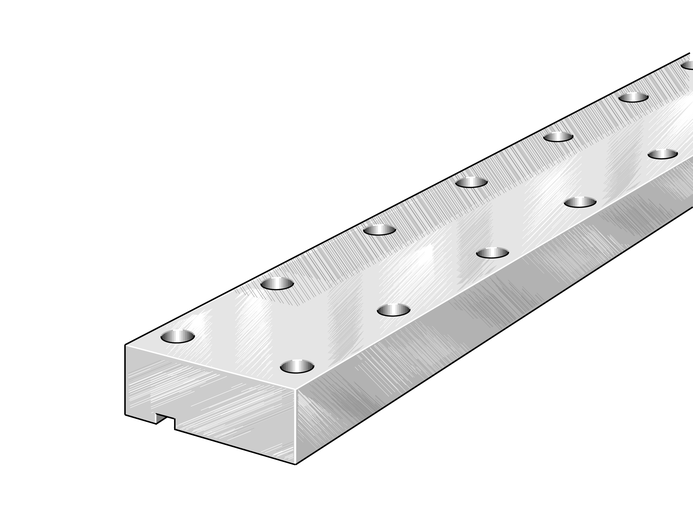

| Short Description | Guideways with three raceways, with slot |
Technical Data11 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Total Width (B) | 162 mm | |
| Total Height (H) | 60 mm | |
| Slot Position (A1) | 37.25 mm | |
| Width Slot (Bn) | 18 mm | |
| Torques Fixing Screws (K1 Ma) | 350 Nm | |
| Mounting Dimension (Jb) | 110 mm | |
| Length Maximum (Lmax) | 3,000 mm | |
| Tolerance (Tol B) | 0.1 mm | |
| Tolerance (Tol H) | 0.1 mm | |
| Bore Diameter (D1) | 18.5 mm | |
| Mounting Dimension Tn Tec (Tn) | 8 mm |
