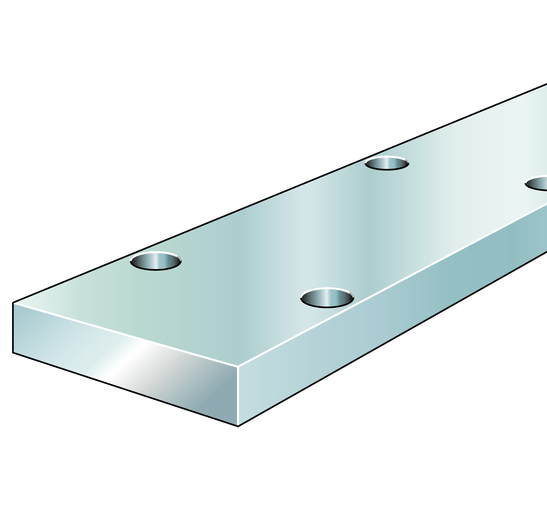

INA UFB6412 Guideways with one raceway, for screw mounting

MANUFACTURER PRODUCT VIEW

INA / Guideways with one raceway, for screw mounting

INA UFB6412

Guideways with one raceway, for screw mounting technical reference with manufacturer-sourced dimensions, characteristics and engineering resources.

Technical data available

Bore diameterd: 6.3 mm
WidthB: 64 mm
Total Width (B): 64 mm
Total Height (H): 12 mm
Mounting Dimension (Jb): 52 mm
Length Maximum (Lmax): 2,000 mm

Compare this model by brand →Check interchange requirements →

Use this page as a technical reference. Verify the current manufacturer specification and the complete application requirements before selection.

Technical data

Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications3 parameters

Core specifications
Parameter	Symbol	Value
Bore diameter	d	6.3 mm
Width	B	64 mm
Height	H	12 mm

Manufacturer Identity3 parameters

Manufacturer Identity
Parameter	Symbol	Value
Schaeffler Product Code		1802270
Brand		INA
Base Type		UFB6412

Product Identity2 parameters

Product Identity
Parameter	Symbol	Value
Construction		Guideway
Short Description		Guideways with one raceway, for screw mounting

Technical Data7 parameters

Technical Data
Parameter	Symbol	Value
Total Width (B)		64 mm
Total Height (H)		12 mm
Mounting Dimension (Jb)		52 mm
Length Maximum (Lmax)		2,000 mm
Tolerance (Tol B)		0.1 mm
Tolerance (Tol H)		0.1 mm
Bore Diameter (D1)		6.3 mm

Technical documents & data sheet

This product page is a BearingScope catalogue reference, not a manufacturer-certified drawing. Preserve the full brand and designation when comparing files.

Record identity: INA UFB6412
Document matching: Exact designation, assembly scope, revision and units must agree.

No verified redistributable CAD or manufacturer PDF is registered for this exact model. A catalogue image is not a dimensioned drawing. Missing technical files are not generated or replaced with unrelated models.
