Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | TSX | |
| Bore diameter | d | 15.4 mm |
| Width | B | 53 mm |
| Height | H | 45 mm |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 1936428 | |
| Brand | INA | |
| Base Type | TSX |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

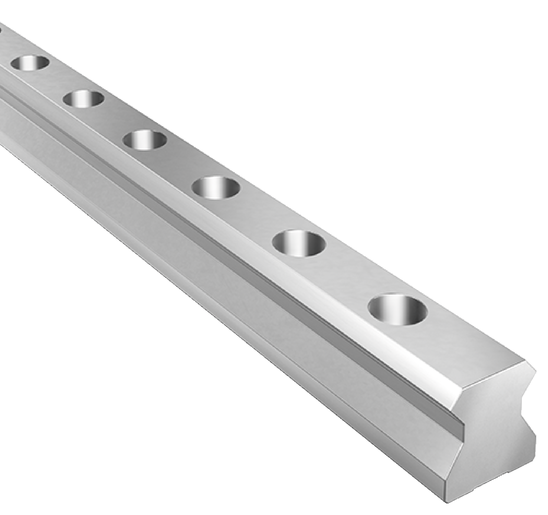

| Construction | Guideways for linear recirculating roller bearing, TSX..-E | |
| Short Description | Profile rail |
Technical Data15 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width (B) | 53 mm | |
| Height (H) | 45 mm | |
| Distance (Ar Min) | 20 mm | |
| Length (H1) | 22.5 mm | |
| Max Length Single Piece Guideway (Lmax) | 5,880 mm | |
| Increment (Jl) | 60 mm | |
| Distance (Ar Max) | 47 mm | |
| Tightening Torque (K1 Ma) | 220 Nm | |
| Distance (Al Max) | 47 mm | |
| Distance (Al Min) | 20 mm | |
| Upper Tolerance (Tol H1) | 0.5 mm | |
| Distance Distance (Tol H1) | -0.5 mm | |
| Upper Tolerance (Tol B) | -0.005 mm | |
| Bore Diameter (D1) | 15.4 mm | |
| Lower Tolerance (Tol B) | -0.035 mm |
