Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications1 parameter
| Parameter | Symbol | Value |
|---|---|---|
| Width | B | 52 mm |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 2082633 | |
| Brand | INA | |
| Base Type | TSNW20 |
Product Identity1 parameter
| Parameter | Symbol | Value |
|---|---|---|
| Short Description | Guideways, metric sizes |

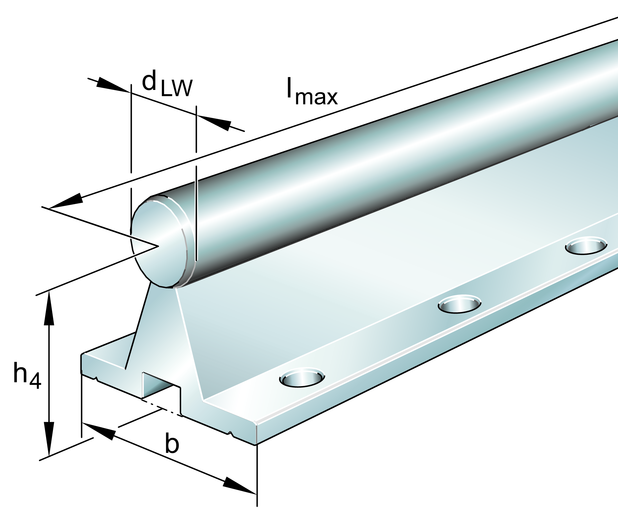

Technical Data19 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Support Rail Width Bottom (B) | 52 mm | |
| Height Dimension (H4) | 32 mm | |
| Length Tolerance (Max) (Ltol Ma) | 3 mm | |
| Distance Thread Al (Min) (Al Min) | 20 mm | |
| Bore Width Distance Jb (Jb) | 37 mm | |
| Adjacent Construction Bore (K3) | 6.6 mm | |
| Height Dimension Tolerance (Low) (H4 Tol) | -0.02 mm | |
| Bore Length Distance Jl (Jl) | 100 mm | |
| Distance Thread Ar (Max) (Ar Max) | 92 mm | |
| Support Rail Thickness Foot (H8) | 6 mm | |
| Support Rail Width Prism (B3) | 7.5 mm | |
| Distance Thread Al (Max) (Al Max) | 92 mm | |
| Length Tolerance (Min) (Ltol Mi) | -3 mm | |
| Diameter Shaft (Dlw) | 20 mm | |
| Distance Thread Ar (Min) (Ar Min) | 20 mm | |
| Support Rail Width Top (B4) | 26.3 mm | |
| Shaft And Support Rail Unit Length (Lmax) | 6,000 mm | |
| Height Dimension Tolerance (High) (H4 Tol) | 0.02 mm | |
| Shaft And Support Rail Unit Weight (Ms) | 3.95 kg/m |
