Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | TKVD20 | |
| Width | B | 42 mm |
| Height | H | 17 mm |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 1940163 | |
| Brand | INA | |
| Base Type | TKVD20 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

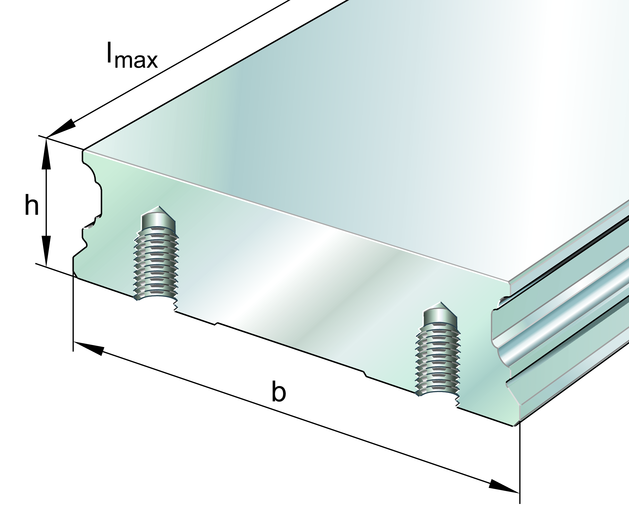

| Construction | Guideways for four-row linear recirculating ball bearing and guideway assembly KUVE..-W, wide guideway, suitable for screw mounting from below | |
| Short Description | Profile rail |
Technical Data14 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width (B) | 42 mm | |
| Height (H) | 17 mm | |
| Distance (Ar Min) | 20 mm | |
| Max Length Single Piece Guideway (Lmax) | 2,940 mm | |
| Increment (Jl) | 60 mm | |
| Distance (A5) | 9 mm | |
| Distance (Ar Max) | 53 mm | |
| Tightening Torque (G1 Ma) | 17 Nm | |
| Increment (Jb) | 24 mm | |
| Distance (Al Max) | 53 mm | |
| Distance (Al Min) | 20 mm | |
| Upper Tolerance (Tol B) | -0.005 mm | |
| Lower Tolerance (Tol B) | -0.035 mm | |
| Thread Length (T7) | 10 mm |
