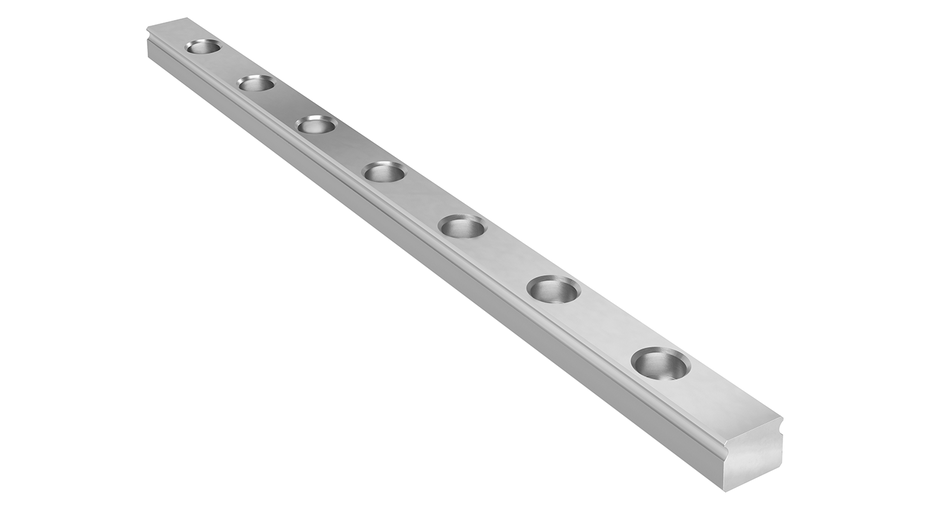

INA TKDM09X2000-E-EWL-G2 Miniature Guideway for Miniature-Carriage, Standard design MANUFACTURER PRODUCT VIEW
INA / Miniature guideway for miniature-carriage, standard design

INA TKDM09X2000-E-EWL-G2

Miniature guideway for miniature-carriage, standard design technical reference with manufacturer-sourced dimensions, characteristics and engineering resources.

Technical data available
WidthB
9 mm
Mass≈m
0.78 kg
Width (B)
9 mm
Height (H)
6.5 mm
Distance (Ar Min)
5 mm
Length (H1)
3 mm
Compare this model by brand →Check interchange requirements →

Use this page as a technical reference. Verify the current manufacturer specification and the complete application requirements before selection.

Technical data

Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications4 parameters
Core specifications
ParameterSymbolValue
SeriesTKDM09
WidthB9 mm
HeightH6.5 mm
Mass≈m0.78 kg
Manufacturer Identity3 parameters
Manufacturer Identity
ParameterSymbolValue
Schaeffler Product Code2631674
BrandINA
Base TypeTKDM09
Product Identity2 parameters
Product Identity
ParameterSymbolValue
ConstructionMiniature Guideway; for Miniature-Carriage, Standard and Long design
Short DescriptionMiniature Guideway for Miniature-Carriage, Standard design
Technical Data10 parameters
Technical Data
ParameterSymbolValue
Width (B)9 mm
Height (H)6.5 mm
Distance (Ar Min)5 mm
Length (H1)3 mm
Max Length Single Piece Guideway (Lmax)2,000 mm
Increment (Jl)20 mm
Distance (Ar Max)15 mm
Tightening Torque (K1 Ma)1.1 Nm
Distance (Al Max)15 mm
Distance (Al Min)5 mm

Technical documents & data sheet

This product page is a BearingScope catalogue reference, not a manufacturer-certified drawing. Preserve the full brand and designation when comparing files.

Record identity
INA TKDM09X2000-E-EWL-G2
Document matching
Exact designation, assembly scope, revision and units must agree.

No verified redistributable CAD or manufacturer PDF is registered for this exact model. A catalogue image is not a dimensioned drawing. Missing technical files are not generated or replaced with unrelated models.

Look up another model or check drawing requirements →
