Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | SRMH01 | |
| Mass | ≈m | 0.038 kg |
| Minimum operating temperature | Tmin | 0 °C |
| Maximum operating temperature | Tmax | 70 °C |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 426571 | |
| Brand | INA | |
| Base Type | SRMH01 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Measuring heads | |

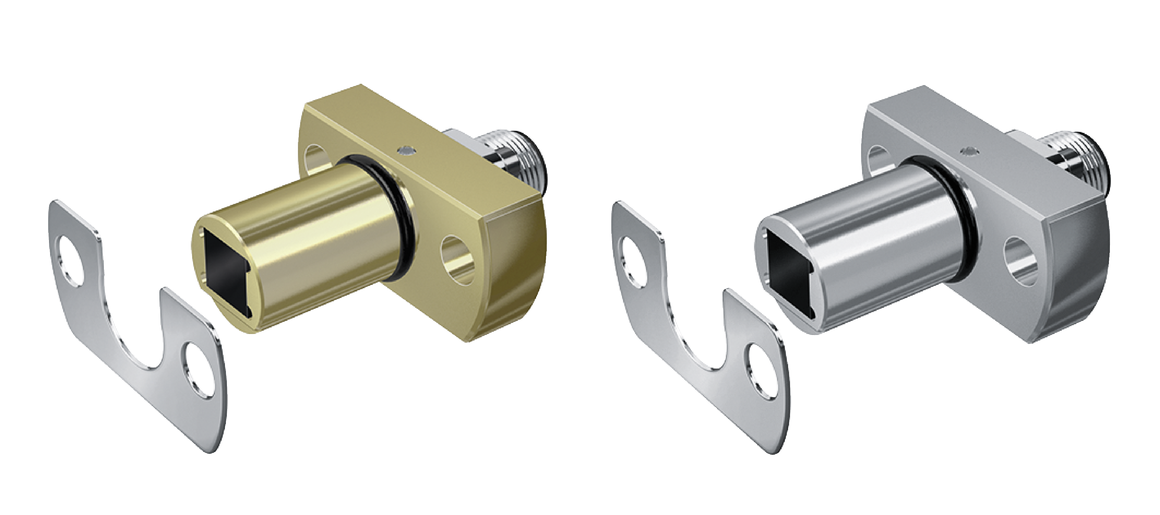

| Short Description | Measuring instrument rpm |
Technical Data12 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter Sensor Srmh (Bore Diamete) | 6.6 mm | |
| Maximum Operating Temperatur (Tmax) | 70 °C | |
| Minimum Operating Temperatur (Tmin) | 0 °C | |
| Length Srmh Total (Length Srmh) | 48.5 mm | |
| Flange Length Sensor Srmh (Flange Lengt) | 40 mm | |
| Bore Pitch Width Sensor Srmh (Bore Pitch W) | 29 mm | |
| Bolting Torque Max (Bolting Torq) | 10 Nm | |
| Diameter Sensor Housing Srmh (Diameter Sen) | 15.9 mm | |
| Flange Width Sensor Srmh (Flange Width) | 20 mm | |
| Length Srmh Excluding Plugs (Length Srmh) | 35 mm | |
| Bolting Torque Min (Bolting Torq) | 9 Nm | |
| Length Srmh Cylindrical Housing (Length Srmh) | 25 mm |
